A hospital hamper cart and the linen cart beside it are the two pieces of equipment that decide whether a room stays tidy at four in the afternoon. One takes what is finished with, the other brings what is needed next, and both have to be easy to move with one hand while the other hand is full. Labs USA is a supplier and project partner, not the manufacturer. We supply Quantum Medical storage products, help configure them for the room and the workflow, and coordinate delivery and installation.

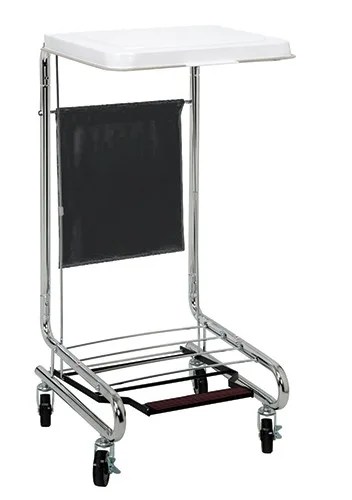

The hamper
A frame, a bag ring and a lid you open with your foot. The details are what make it usable.
The manufacturer publishes a single bag hamper with a foot activated heavy-duty ABS lid for quick accessibility, a double ring bag holder that allows quick bag insertion and holds the bag in place, and four 3 inch casters with two brakes, in chrome.
Three things follow from that. The foot pedal means nobody touches the lid with their hands, which is the whole reason to buy a hamper with a lid rather than an open frame. The double ring is what stops a bag sliding down inside the frame when it is half full – the failure that makes staff give up on a hamper and use a bin instead. And the braked casters keep it where it was put in a room where the floor is not quite level.
Size the fleet by rounds, not by rooms: one hamper per work area that generates linen, plus spares at the point where the bags are collected.
Published linen cart models
The manufacturer’s current published list for the wire linen carts, with the published figures from the product pages we loaded. Complete carts are published as including the caster kit.
| Model | Build | Shelf / post | Overall | Published load |
|---|---|---|---|---|
| WRCS4-63-2436EP | 4 shelf, stem caster | 24″ x 36″ shelf, 63″ post | 24″ x 36″ x 69″ | 800 lb |
| WRCS4-74-2436EP to -2460EP | 4 shelf, stem caster | 24″ x 36-60″ shelves, 74″ post | published in the same series | confirmed on quote |
| WRDBS4-63-2436EP to -2460EP | 4 shelf, dolly base | 24″ x 36-60″ shelves, 63″ post | published in the same series | confirmed on quote |
| WRDBS4-74-2460EP | 4 shelf, dolly base | 24″ x 60″ shelf, 74″ post | 24″ x 60″ x 80″ | 600 lb |
| M2436C46E | 4 shelf, stem caster | 24″ x 36″ shelf, 63″ post | 24″ x 36″ x 80″ | 800 lb |
| M2448C46E / M2460C46E | 4 shelf, stem caster | 24″ x 48″ and 24″ x 60″ shelves | published in the same series | confirmed on quote |
The manufacturer also publishes named configurations rather than bare model numbers for three common builds: a four wire shelf stem caster linen cart, a three wire and one solid shelf stem caster linen cart, and a three wire and one solid shelf dolly base linen cart. The solid shelf is normally the bottom one, and it is worth having – it stops small items dropping through onto the floor.
Stem caster cartCasters fitted into the posts. Lower overall height for the same shelf count and a tighter turn in a corridor.
Dolly base cartThe unit sits on a wheeled base. Heavier duty and easier over thresholds, and it keeps the bottom shelf off the floor.Choosing between them
- Stem caster or dolly base. Stem casters give a lower overall cart and better manoeuvring in tight rooms; a dolly base takes more weight and rides over lift edges and thresholds better. Published loads differ by build, so match the build to the load rather than the other way round.
- Post height decides how far you reach. A 74 inch post gives more levels but the top shelf is a stretch for a shorter member of staff, and it may not clear a doorway with a full load. Measure the route.
- One solid shelf, usually at the bottom. It catches what falls and it gives the cart somewhere to put a bag or a box.
- Enclose it if it travels through public space. Covers and enclosure panels are separate items; specify them up front, because an open cart cannot be made into a covered one with accessories alone.
- Count the hampers against the rounds. The hamper that is furthest from where staff work is the one that does not get used.
- Brakes where the floor slopes. Both families publish braked casters. It is worth checking that the two braked wheels are on the end that gets parked.
Where they work
Hampers and linen carts belong wherever linen is used or collected: the decontamination side of sterile processing, operating room turnover, nursing units and clean utility rooms, clinics, and the linen room itself. The pattern that works is a hamper at the point of use and a linen cart on the delivery round, with a defined parking spot for both so neither ends up in a corridor.
- Sterile processing — the department workflow, including the soiled side.
- Operating rooms — room turnover and the storage that supports it.
- Nursing units and clean utility — clean utility rooms, soiled holding and the daily rounds.
- Facilities and support areas — the linen room and plant operations storage.
Size the fleet with us
Send the rounds, the rooms and the routes. We come back with hamper and cart quantities, the published models, parking locations and a quote. No charge for the planning work.
Resources
- Healthcare storage solutions — the hub for the whole programme.
- Healthcare Storage Design Center — free planning tools and intake checklists.
- Medical cart configurator — configure a cart in the browser and send it to us.
- Medical carts in the Labs USA store — cart configurations available to order.
Hospital hamper and linen cart FAQ
What does the published hamper include?
How much does a linen cart carry?
Stem caster or dolly base?
Can we get a covered cart?
What sizes are published?
Do you supply replacement casters and dolly wheels?
Get a hamper and linen cart quote
Tell us the rounds, the routes and the loads. You get the published models, sizes and load figures, cover options, freight and lead time at no charge.
