Hospital Sterile Storage Rack with blue pull out bins

Surgery consumes more supply value per square foot than anywhere else in the building, and it stores that supply in the least forgiving space. Good operating room storage is not about buying more shelving — it is about matching each storage location to a step in case flow, so the sterile core, the case cart route and the room itself stop competing for the same few feet. Labs USA lays out surgical storage, specifies and quotes it, and coordinates delivery and installation as a supplier and project partner. We are not the manufacturer.

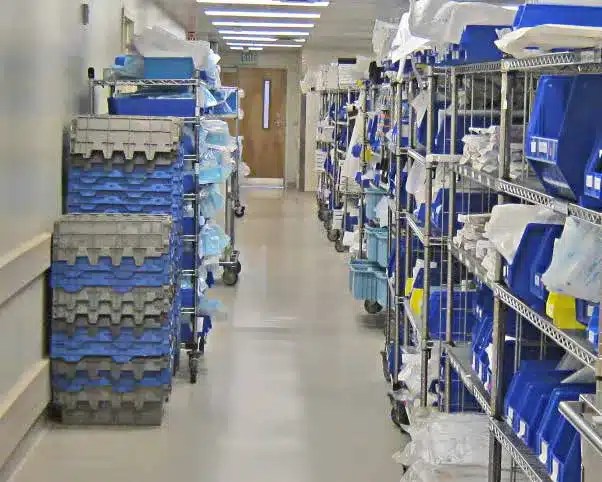

Hospital corridor lined with loaded transport carts and supply racks outside procedure rooms
5storage zones in a typical surgical suite
Freelayout and needs assessment
Phasedinstalls around a live OR schedule
Nationwidedelivery and install coordination

Follow the case, not the floor plan

Every surgical storage argument gets easier once the storage is described as a sequence of handoffs rather than a set of rooms.

1. Pick. A case is picked from a preference list, usually in the core or in a dedicated pick area, onto a cart or into a tote.

2. Stage. The picked case waits — sometimes hours, sometimes overnight. If nobody designed a staging footprint, it waits in a corridor.

3. Set up. Items move from cart to back table and to the circulating nurse’s reach positions inside the room.

4. Replenish mid-case. Somebody has to find an unplanned item quickly, from the substerile space or the core, without leaving the suite.

5. Break down and turn over. Waste, reusable instrument trays and unused stock all leave the room by different routes, and the room has to be clear for the next case.

Wire shelving run in a clean storage room holding rows of blue bins

Three of those five steps need floor area that is not shelving: staging, turnover circulation and the return path for unused stock. Rooms filled wall-to-wall with shelving push all three into the corridor.

The storage problems that actually slow down a surgical suite

The sterile core is organised by product, not by case

Cores are commonly laid out the way the supply chain thinks — all sutures together, all drapes together — while the people using them work case by case. Picking then means walking the whole core for every case. Grouping the high-volume service lines into adjacent bays, and keeping only genuinely shared items in a common zone, usually removes more steps than any shelving upgrade. It also makes short locations obvious, because a gap sits inside a service line rather than being lost in a long alphabetical run.

Case carts are staged wherever there is room

Case cart staging is a real footprint with real dimensions, and it is almost never drawn. Count the carts in circulation at peak, add the ones waiting to go back, and give that number a defined location with a floor marking and a clear route to the room doors. Where a suite genuinely cannot find the area, the practical alternatives are a smaller cart footprint, more frequent picking, or converting fixed shelving aisles into storage so floor space is released for staging.

Procedure packs do not fit the shelving they were given

Large packs and custom trays are bulky, light and awkward, and they get crushed or stacked when the shelf pitch was set for boxes. Deep shelves make it worse because a pack behind a pack is invisible. Shelf pitch set from the tallest pack in each bay, one pack family per location, and label positions at the aisle face fix most of it without changing the shelving system.

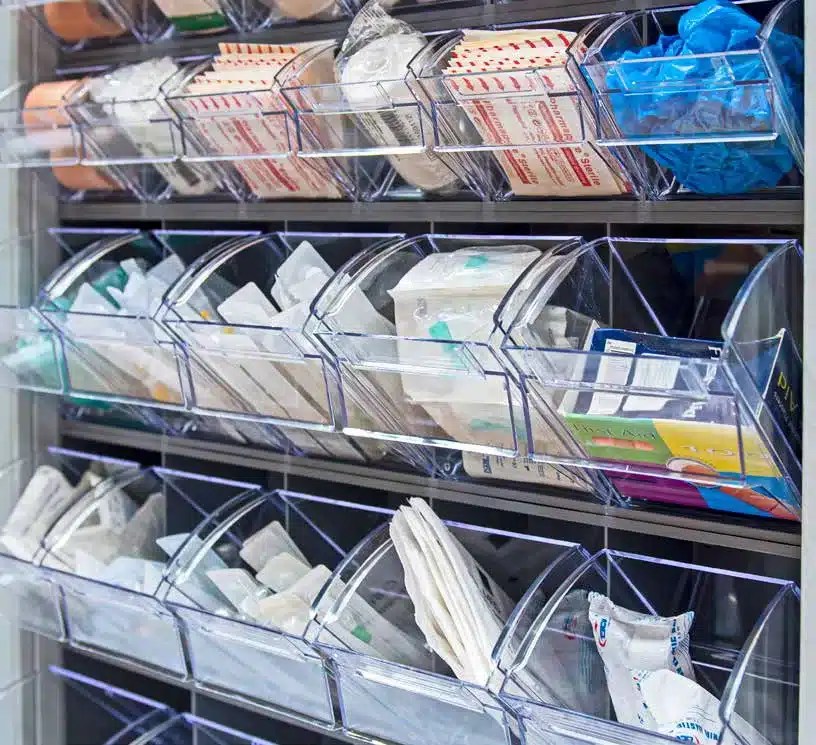

Clear front bins on shelving holding packaged single-use procedure items

Back-table and in-room storage is an afterthought

Inside the room, storage is a circulation problem: anything reached during a case competes with equipment booms, the anaesthesia zone and the sterile field. The workable pattern is a small, disciplined set of in-room locations plus a rule that everything else lives outside the room. In-room storage that grows becomes storage nobody counts.

Substerile space is doing three jobs

Substerile rooms between theatres end up holding immediate-use items, a scrub sink, a small amount of equipment and whatever else was homeless. Decide which two of those jobs the space is really for, then size the storage to that. A shallow wall-mounted run and one narrow mobile cart usually beats a deep shelving unit that blocks the door swing.

Nobody can tell what is short until it is short

Visibility is a storage property. One item per labelled location, a container sized so a full location looks full, and a label written the way the team names the item are what make a shortfall visible from the aisle. This costs almost nothing and it is the single most common thing missing in cores we survey.

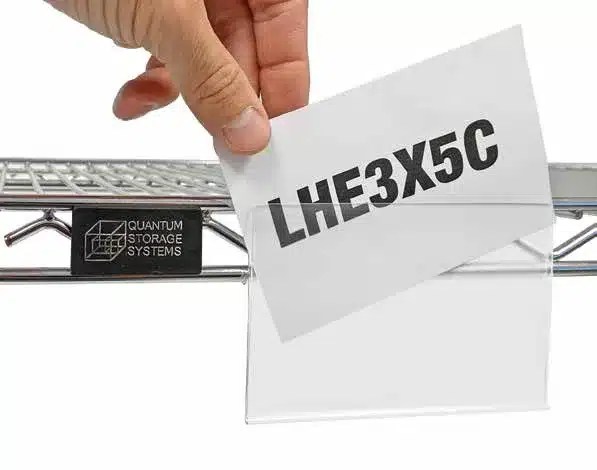

Hand fitting a printed label card into a shelf label holder
Quick diagnostic. Carts parked in a corridor, packs stored on their edge, two locations for the same item, a bay with a hand-written sign, or anything stored on the floor — each of those points at one of the problems above. Photograph them before you call us; they are the most useful input to a layout we can get.

Zoning surgical storage

Most suites need these five zones named and sized before anything is ordered. Naming them is what turns a floor-space argument into a set of numbers.

  • Sterile core storage — picked-from stock, grouped by service line, shallow enough to see the whole location
  • Case cart staging — a measured footprint for picked and returning carts, outside the traffic aisle
  • In-room storage — a short, deliberate list of items, on a cart or a shallow cabinet run
  • Substerile and immediate-use — small, shallow, and only for what genuinely cannot wait
  • Bulk and overflow — outside the suite, replenishing the core on a schedule rather than on demand

Aisle widths follow from the widest thing that travels down them, which in a surgical suite is usually a case cart rather than a person. We check door swings, turning space at the corners and the route to each theatre door at layout stage, because those are the corrections that get expensive after installation.

Five-tier mobile wire shelving unit on swivel casters

When the core simply is not big enough

Three levers, in cost order. Re-pitch and re-zone what is already there — often recovers a surprising amount for the price of labour and labels. Go vertical or on to the walls, within reach limits and what the wall construction will carry. Or remove fixed aisles with mobile carriages, which converts aisle floor into storage but needs a flat, load-capable floor and users who can accept one open aisle at a time.

How those work in practice: high-density healthcare storage, hospital mobile shelving and healthcare shelving. If the constraint is really the building rather than the shelving, that is a planning conversation — see storage planning for new construction and expansion.

Storage tote on a mobile stand holding items at a point-of-use work station

Where storage lands in a surgical suite

Blue shelf bins holding tubing coils, gauze packs and small packaged suppliesSterile core pickingShallow, well-lit, finely divided locations grouped by service line so a case can be picked in one pass.
Shelf bin holding syringes, connectors and small packaged itemsSubsterile and immediate useA small, shallow set of locations for items that cannot wait, sized so the door swing and scrub sink stay clear.
Yellow open hopper bins loaded with packaged dressings and consumablesOpen-front picking for consumablesHigh-turn consumables in open-front containers where a shortfall is visible from the aisle without lifting anything.
Clinician in scrubs carrying a blue divided tote of packaged suppliesMoving stock into the roomTotes and carts sized for the doorway and the turnover clock, not for the maximum the shelf could hold.

Which storage families a surgical suite usually needs

Dimensions, materials, finishes, load ratings and configuration detail live on the product pages — this page deliberately carries none of that. Start here:

Six-drawer supply cart with blue drawer fronts, push handle and swivel castersMedical CartsCase carts, procedure carts and drawer carts for picking, staging and in-room storage. Cart families and configuration guidance.
Red plastic basket sliding on a wire shelf frame for pull-out accessHealthcare ShelvingThe backbone of a sterile core: wire, solid and polymer shelf types, pull-out baskets and accessories.
Divided hanging wire basket for small items on a shelving uprightHigh-Density StorageAisle removal for a core that cannot grow, sized from your floor, doors and loading.

Also relevant, depending on how your suite is organised:

How a surgical storage project runs

1Walk the suiteCore, substerile spaces, corridors and two or three theatres. Dimensions, doors, clearances, what is stored where now, and where carts actually stand.
2Map case flowPick, stage, set up, replenish, break down — with your service-line mix and case volume, so zone sizes come from your schedule rather than a rule of thumb.
3Zone and lay outThe five zones drawn with aisles, door swings and cart footprints, including the expansion positions you will want in two years.
4Specify and quoteFamilies, dimensions, materials and finishes with freight, installation scope and lead times per family so the work can be phased.
5Install around the scheduleBay by bay, in your low-volume windows, with displaced stock on temporary shelving or carts and every phase left clean and usable.

Get the core laid out before you order shelving

Send room dimensions, your service-line mix and a couple of photos of the problem spots. The Healthcare Storage Design Center gives you layout support, intake checklists and planning tools at no charge and no obligation.

The departments on either side of surgery

A surgical storage plan that ignores where the stock comes from and where the trays go tends to move the problem one door down the corridor.

Related products and resources

Operating room storage FAQ

How much storage should sit inside the operating room itself?
Less than most teams expect. Anything stored in the room competes with equipment, the anaesthesia zone and turnover circulation, and in-room stock is the hardest to count. The pattern that holds up is a short, deliberate list on one cart or a shallow cabinet run, with everything else immediately outside the room. We size that list with your team during the layout.
Should the sterile core be organised by product type or by service line?
For most suites, by service line for the high-volume specialties, with a shared zone for genuinely common items: a case is then picked in one pass instead of a lap of the core, and short locations stay visible. Very small cores sometimes work better product-grouped, which is a layout decision rather than a rule.
How much floor space does case cart staging need?
It depends on cart footprint, peak cart count and how long carts wait, so we count rather than estimate: carts in circulation at peak, plus returning carts, times the footprint, plus the clearance to get them past each other. It is worth doing properly, because unstaged carts are what put storage into corridors.
Can you install in a live surgical suite?
Yes, and it is the normal case. Work is phased bay by bay in your low-volume windows, displaced stock goes on temporary shelving or carts, and each phase is left clean and usable before the next one starts. The phasing plan is agreed during layout, not on the install day.
Do you advise on infection prevention or accreditation requirements for storage?
No. Those decisions belong to your facility and your reviewers, and we do not claim that a product satisfies them. We design to the separation, cleanability, clearance and access criteria your team gives us, and we supply the manufacturer’s published material and finish information so your reviewers can make their own assessment.
Can you match or extend the shelving we already have in the core?
Often, yes. Many systems accept matching posts, shelves and accessories, and we confirm compatibility from the markings on your existing units before quoting. Where a line has been discontinued we say so and propose the closest current equivalent rather than implying an exact match.
Who do you work with on a surgical storage project?
Usually surgical services leadership plus supply chain, with facilities involved for anything wall-mounted or floor-fixed. On a build or renovation we prefer to be in the conversation early, while room sizes are still adjustable.

Get an operating room storage layout and quote

Send us the core and substerile dimensions, your case mix and how carts move today. You get a zoned layout, a parts list and a quote with freight, installation scope and lead times per family. The layout work is free whether you order from us or not.
