Surgical instrument storage is really two problems. Sets are big, heavy and predictable, so they want deep shelves at a height a person can lift from. Singles, specials and loaners are small, awkward and constantly moving, so they want compartments with a front you can see into and a label that stays put. Wire baskets on adjustable collars solve the second problem on the same posts that solve the first. Labs USA is a supplier and project partner, not the manufacturer. We supply Quantum Medical storage products, help configure them for the room and the workflow, and coordinate delivery and installation.
Baskets, shelves or both
The useful trick in this family is that baskets and shelves share the same posts, so one run can do both jobs.
The manufacturer describes the basket as a dispensing and storage module that can be added to 18, 21 and 24 inch deep shelving units, with a collar hook that lets the basket be removed or adjusted, adjustable on 1 inch increments, published at a 110 pound load capacity per basket, in chrome. Dividers separate what is inside; label holders go on the front rail; casters convert a stationary unit into a transport unit.
In practice a set room ends up with solid or wire shelves at waist height for the heavy trays, baskets above and below for singles and specials, and one or two mobile basket units that can be taken to wherever the work is happening. Because the baskets come off the collar hooks, the mix can be changed later without buying new shelving – which matters in a department where the service lines change more often than the furniture.
Published basket sizes
The manufacturer’s current published list, with the published load capacity. Dividers, label holders and casters are quoted separately.
| Model | Outside dimensions (D x W x H) | Published load capacity |
|---|---|---|
| 1436BC | 14″ x 36″ x 9″ | 110 lb |
| 1448BC | 14″ x 48″ x 9″ | 110 lb |
| 2036BC | 20″ x 36″ x 9″ | 110 lb |
| 2048BC | 20″ x 48″ x 9″ | 110 lb |
| 203612BC | 20″ x 36″ x 12″ | 110 lb |
| 204812BC | 20″ x 48″ x 12″ | 110 lb |
Two depths and two heights covers most of what a set room needs: the 14 inch deep baskets suit singles and small specials on a 18 inch unit, the 20 inch deep baskets take larger items on 21 and 24 inch units, and the 12 inch tall versions take anything with height to it. Load figures are the manufacturer’s published values for an evenly distributed load.
Open front basketThe front stays open so a technician can see and reach the contents without pulling the basket out.

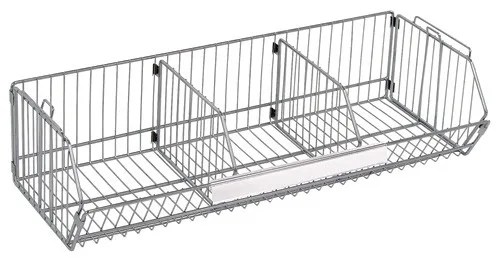

Label holder fittedA holder on the front rail keeps the label with the location, which is what makes a par count possible.

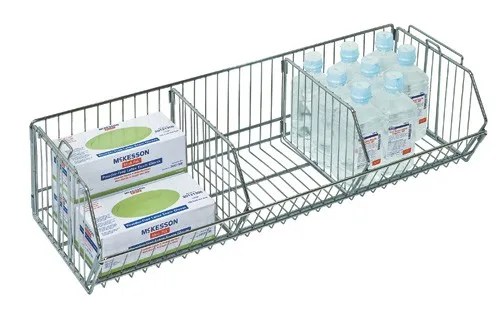

Divided contentsDividers stop small items migrating between compartments over a shift.Laying out a set room
- Weigh a full tray before you choose a height. The shelf level that holds your heaviest sets should be between knee and shoulder height. Everything else arranges itself around that decision.
- Depth follows the tray, not the wall. An 18 inch unit that fits the tray is better than a 24 inch unit that leaves four inches of dead space at the back collecting items nobody can see.
- Give singles a home with a front on it. Loose instruments on a flat shelf slide to the back. A basket with a label holder is the difference between a par count that works and a weekly search.
- Reserve one mobile unit. Loaners, specials and case-specific pulls always need somewhere to live for two days. A mobile basket unit absorbs that instead of the bench.
- Leave 20 per cent empty. A set room at 100 per cent occupancy has no capacity for the next service line, and things end up on the floor.
- Label the location, not the item. Locations outlive the contents, which is why the label holder is on the basket rail.
The Shelving and Bin Configurator will size the units, shelves and baskets for a room from your dimensions and show the arithmetic, and the Room Designer lays the runs out on a floor plan.
Where instrument storage sits in the department
Assembly and set roomsSets on shelves, singles in baskets, and a bench that stays clear because nothing is stored on it.The same pattern works at a smaller scale in procedure rooms, clinics and satellite prep areas that hold their own small instrument stock: one unit, shelves for the trays, baskets for the singles, labels on the locations.
- Sterile processing — the department workflow: rooms, routes and problems.
- Operating rooms — the sub-sterile side, case setup and OR storage.
- Endoscopy — scope and accessory storage in reprocessing rooms.
Size the set room with us
Send the room dimensions, your set counts and your heaviest tray. We come back with a shelving and basket layout, the published models and a quote. No charge for the planning work.
Resources
- Healthcare storage solutions — the hub for the whole programme.
- Healthcare Storage Design Center — free planning tools and intake checklists.
- Room Designer — lay the runs out on a floor plan in the browser.
- Quantum Medical storage products — the manufacturer and its families.
Surgical instrument storage FAQ
How much does one basket hold?
Can baskets be added to shelving we already own?
What sizes are published?
Stationary or mobile?
How do we keep track of what is where?
What about the heavy sets?
