This is where a hospital storage project starts. Healthcare storage design at Labs USA means someone measures the room, reviews your floor plan, draws a layout you can hand to your project team, specifies the parts, and quotes it — before you commit to anything. That service is live today and costs nothing. Four self-serve planning tools are in development and will land on this page as they are released. We are a supplier and project partner, not a manufacturer: Quantum Medical builds the shelving, carts, cabinets and bin systems we specify.
Build & Price Your Medical Shelving
Answer a few application and room questions, configure verified stationary Quantum wire or solid shelving, and send the result to Labs USA for freight review and a quote. Mobile, track-mounted and other complex systems stay on design review.
What the Design Center is
Two things: a set of planning tools you can run yourself, and a team that will do the whole design with you. The second is available now.
Most storage projects stall in the same place: somebody knows the room is not working, nobody has a drawing of what would work instead, and the only way to get a number is to ask for a quote on products nobody has chosen yet. Give us the room and what goes in it, and that loop breaks.
The tools are being built to answer the fast questions — how many linear feet fit, which cart configuration matches the procedure, how much a compacting bank recovers. They stay planning aids: final layouts and specifications require Labs USA review, and dimensions are field-verified before an order goes in.
Everything designed here comes from the families on our healthcare storage solutions hub, or from the storage by department route.
The four planning tools
All four are live now and free to use: the Room Designer, the High-Density Storage Calculator, the Medical Cart Configurator and the Shelving & Bin Configurator. Every one of them is a planning tool — it gives you estimated figures and a parts list, and our team reviews the result with you.
Healthcare Storage Room DesignerDraw your store room to scale, drop in shelving, cabinet and cart footprints, and see the aisle and clearance space you have left. Outputs a plan view and an estimated capacity summary.LIVE — FREE TO USELaunch the tool →
Medical Cart ConfiguratorBuild a supply, procedure, isolation or utility cart from the shelf, drawer, bin and caster options that go together, with incompatible choices blocked and the reason shown.LIVE — FREE TO USELaunch the tool →
Shelving & Bin ConfiguratorSet unit depth, length, height and finish, pitch the shelves against your tallest item, then fill them with bins and count the labelled locations.LIVE — FREE TO USELaunch the tool →
High-Density Storage CalculatorEnter room dimensions, shelf depth and working aisle width and compare static shelving against a compacting bank on the same floor area.LIVE — FREE TO USELaunch the tool →Each tool has its own page, and all four hand their output to the same place: a layout and parts list our team reviews before it becomes a quote. None of them shows pricing — send us the configuration and we will price it. Mention the tool you used in your design request and we will pick up from there.
Healthcare storage design services, done with you
This is the part that is live. It is six pieces of work, and you can stop after any of them.
What it costs and what it obligates
The assessment, the floor-plan review and the first layout are free and carry no obligation. We ask for the room and the requirement; you get a drawing and a parts list, yours to circulate.
On a renovation, department move or new build the same work runs alongside our design and planning support, so storage is specified with the rest of the equipment rather than after it.
What we do not do: interpret standards, certify anything, or make clinical judgements. We specify equipment and design to the criteria your team hands us.
Send us your floor plan
The fastest way to get a real layout back is to send a plan. Use the contact form and attach whatever you have; if the file is too large, say so and we will send an upload link.
A photo of a marked-up printout is enough to start. What helps most is the constraints a drawing does not show.
- Room dimensions, or a plan at a stated scale
- Door positions and swing direction
- Columns, sinks, drains and anything else fixed
- Ceiling height and what hangs below it
- What you store, and the tallest carton height
- How many people pick or restock at once
- Dry, humid, wash-down, cooler or freezer
- Anything immovable, and dates the work must fit around
What a design covers
A storage design is a set of decisions, most of them about the room rather than the catalog. These are the ones we work through with you.
| Decision | What it turns on | Where it is covered |
|---|---|---|
| Fixed or mobile | Whether the room is full, how many people pick at once, and whether anything may be fixed to the slab. | High-density storage |
| Shelf pitch and unit height | Your tallest item, plus what must stay within easy reach. | Configuration guidance on each product hub |
| Open shelf, bin or drawer | Whether an empty location must be visible at a glance, or the item shut away. | Storage solutions hub |
| Finish and material | Dry store room, humid or wash-down area, cooler or freezer. | Finish tables on the shelving hubs |
| Static storage or a cart | How far the item travels to the point of use, and how often. | Medical and lab carts |
| Phasing | Whether the department can close, and what converts first. | Covered in the quote and install plan |
Specifications come from the manufacturer
Every number in a specification we issue is the manufacturer’s own published figure for the model quoted: shelf and unit capacities as evenly distributed maximums, depths, lengths and post heights, finish suitability by environment, and warranty terms confirmed per finish on the quote. Quantum Medical’s current wire, plastics and polymer shelving literature is the source, attributed rather than restated as ours.
Where a figure is not published for the configuration you want, the specification says so and we confirm it with the manufacturer before quoting.
Buying standard items online instead of specifying a room is a different job; say so in your request and we will point you at the right ordering route.
Where we are usually asked to design
Supply rooms that keep running outA visibility and sequencing problem more often than a capacity one. Start with central supply storage.
Departments that outgrew the roomWhere the answer is up the wall, onto a track, or onto a cart rather than into a second room.
Sterile processing flowsSee sterile processing storage planning.
Wet, humid and cold roomsWhere finish selection matters more than layout, and the wrong material fails early.

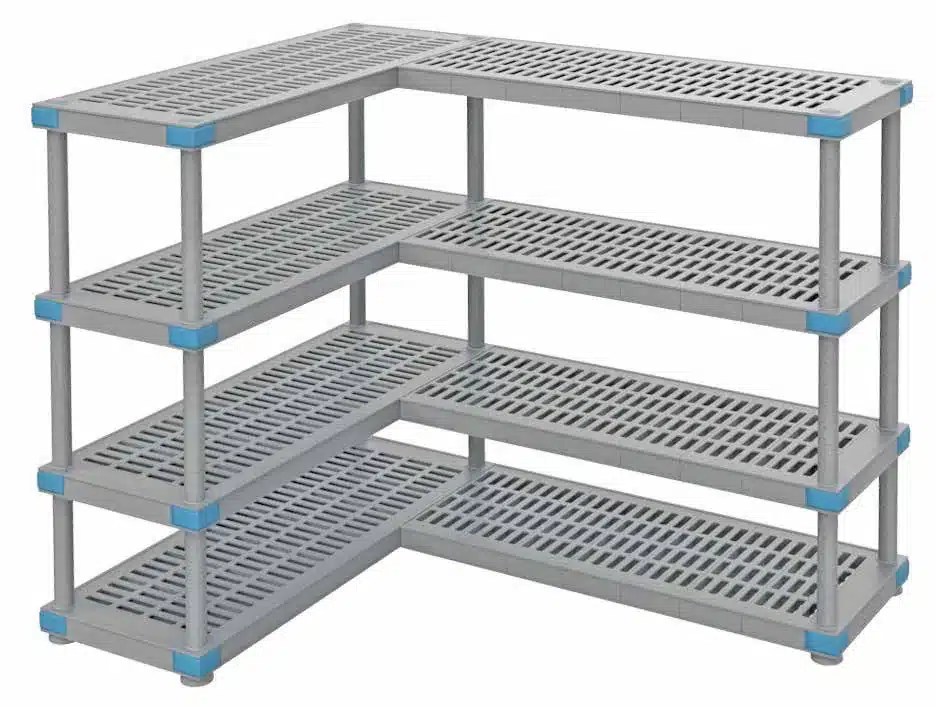

Awkward rooms and leftover cornersShort walls, angled corners and rooms with a column in the middle of the obvious layout.
Point-of-use and transportThe last fifty feet: what travels to the bedside, the procedure room or the OR core, and on what.New construction and expansion projects run the same way, just earlier: we would rather see a drawing than a finished room.
From drawing to installed room
A layout that cannot be installed without closing the department is not a layout. The install plan is part of the design: we sequence work so the room stays usable, build the new bank in one half, move stock across, convert the rest. Deliveries follow dock availability, and packaging leaves with the crew.
Lead times differ by family and finish, so the quote states them per line: that is what lets you decide whether to phase a project or do it once.
Have our team design it with you
Send the room, the plan or just the problem. You get a needs assessment, a marked-up floor plan, a layout for the actual room and a parts list you can circulate, at no cost and with no obligation.
Medical supply room organization guide
Need a practical starting point before drawing the room? Read Hospital Supply Room Organization Guide for a step-by-step approach to storage zones, active pick locations, reserve stock, labels, and replenishment workflow.
Resources
- Design request and contact form — the route for floor plans, drawings and site photos
- Healthcare storage solutions hub — product families, finishes and configuration guidance
- Storage by department — planning pages per clinical area
- High-density storage — the arithmetic behind aisle elimination
- Design and planning support — layout drawings and specification help
- About Labs USA
Manufacturer literature for any family we quote is sent with the quote on request, in the current edition rather than a cached copy.
Healthcare storage design FAQs
Are the four planning tools available now?
What does a storage design cost?
What do you need from us to start?
Can you work from our architect’s drawings?
Will a tool output be enough to order from?
Do you make the products you design with?
How long does a layout take?
Get a layout for your room
Send your floor plan, or just describe the room and the problem. You get a marked-up plan, a layout, a parts list and a quote, and there is no cost to find out what the room could do.
