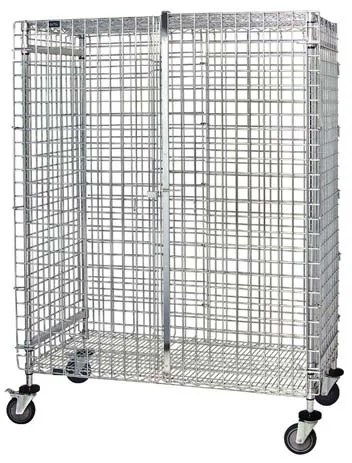

Wire security enclosure cart with a solid base and locking doors

The hospital utility cart is the least glamorous and most used item in the building: two or three shelves, four casters, and a job that changes every hour. It is also the one cart family where the manufacturer publishes current models, dimensions and load figures, so this page can be specific. Labs USA is a supplier and project partner, not the manufacturer. We supply Quantum Medical storage products, help configure them for the room and the workflow, and coordinate delivery and installation.

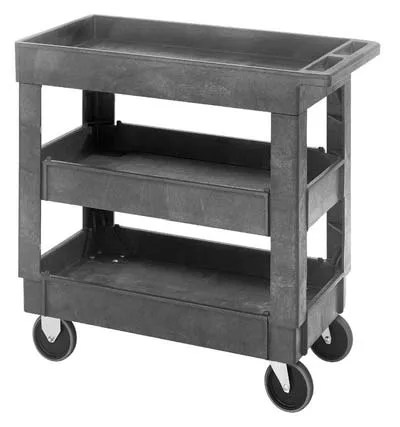

Three-shelf moulded polymer utility cart with recessed shelf lips
1,200 lbpublished mobile load, push handle wire carts
550 lbpublished load capacity, polymer carts
3wire finishes: chrome, stainless, epoxy
2-3shelf combinations published

Wire or polymer: the honest comparison

Both are correct answers to different questions. Pick by what the cart carries and how it gets cleaned, not by price per unit.

Wire carts carry more, take a mix of wire and solid shelves, and come in three published finishes. The manufacturer states that each wire utility cart consists of two u-handles, four donut bumpers, four swivel casters with two brakes, and wire or solid shelf combinations, in chrome, stainless steel or epoxy. The push handle version is published with one push handle instead of two u-handles and a mobile load capacity of up to 1,200 pounds.

Polymer carts have recessed moulded shelves with a lip, so bottles and small loose items stay on the cart, and there are no crevices at the shelf edge to wipe around. The manufacturer publishes them with a set of two swivel and two rigid 5 by 1-1/4 inch heavy-duty casters and a load capacity of up to 550 pounds, in two sizes with a two or three shelf combination, available in gray.

Rule of thumb from projects: liquids, cleaning supplies and anything that drips go on polymer; boxed stock, linen and volume go on wire. Load figures are the manufacturer’s published values for an evenly distributed load.

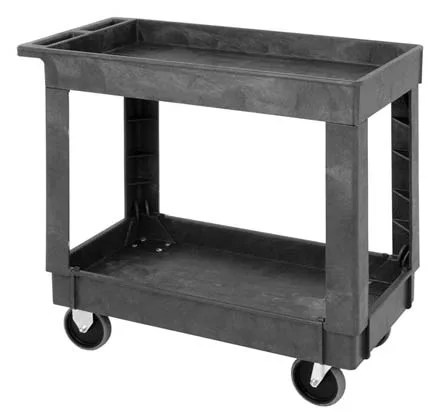

Two-shelf moulded polymer utility cart with a deep top tray

Published wire utility cart models

From the manufacturer’s current wire literature. These are the published figures for these models; we confirm the model, finish and shelf combination on your quote.

Model Shelves Dimensions W x L x H Handle Ship weight
WRC-1836-2 2 chrome wire 18″ x 36″ x 37-1/2″ 2 u-handles 38 lbs
WRC-1842-2 2 chrome wire 18″ x 42″ x 37-1/2″ 2 u-handles 40 lbs
WRC-1836-3 3 chrome wire 18″ x 36″ x 37-1/2″ 2 u-handles 48 lbs
WRC-1842-3 3 chrome wire 18″ x 42″ x 37-1/2″ 2 u-handles 51 lbs
WRCP-1836P-2 2 epoxy wire 18″ x 36″ x 37-1/2″ 1 push handle 38 lbs
WRCP-1842P-2 2 epoxy wire 18″ x 42″ x 37-1/2″ 1 push handle 40 lbs
WRCP-1836P-3 3 epoxy wire 18″ x 36″ x 37-1/2″ 1 push handle 48 lbs

Other sizes and shelf combinations are available and are not all listed in the published table, including solid and mixed shelf builds. A polymer example the manufacturer publishes is PC4026-33, one of two published polymer sizes with a two or three shelf combination.

Reading the model numbers. The digits are the shelf footprint in inches followed by the shelf count, so WRC-1842-3 is an 18 by 42 inch cart with three shelves. A P in the suffix marks the push handle version. That pattern is useful when you are matching an existing cart on a unit – send us a photo of the label and we can identify it.

Choosing the configuration

  • Shelf combination. Solid where things are set down or spill, wire where air movement and visibility help. Mixed builds are published, so you do not have to choose one for the whole cart.
  • Handles. Two u-handles give you a grip from either end in a tight room; a single push handle is better for long corridor runs and heavier loads.
  • Casters and bumpers. The published wire carts ship with four swivel casters, two braked, and four donut bumpers – the bumpers are what keep the cart and the corridor wall in one piece. Polymer carts are published with two swivel and two rigid casters, which tracks straighter over distance.
  • Finish. Chrome for general use, epoxy where colour coding or a coated surface is wanted, stainless where wash-down and durability are the priority. All three are published for the wire carts.
  • Load. Compare the real load to the published figure with a sensible margin, and remember the published capacities assume an evenly distributed load.
  • Accessories. Bins, dividers, label holders and covers are quoted separately so they can be added later without re-quoting the cart.
Estimated figures only. Quantities, footprints and capacities we produce during planning are estimates for discussion. Final specifications and dimensions are confirmed on the quote and field-verified before installation.

Where hospital utility carts do the work

Open frame mobile cart with a hanging bar holding folded blue linenLinen and housekeeping roundsOpen frame and shelf carts for linen distribution, room turnover and housekeeping routes, sized to the corridor rather than the load.

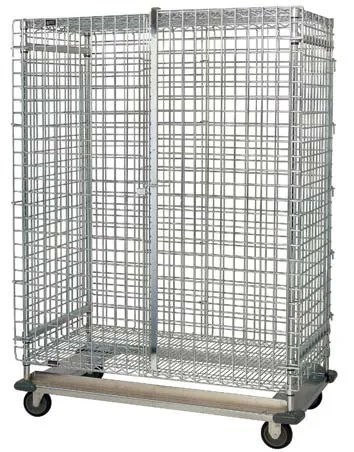

Enclosed wire security cart with hinged mesh doors on castersSecured transportEnclosed wire security carts with lockable mesh doors for stock that travels through public corridors.
Three-shelf wire utility cart stacked with folded linenRestock runsWire shelf carts move boxed stock and folded linen between the storage room and the point of use, then park out of the corridor.

They also serve equipment moves in plant operations and support areas, restock runs between a storage room and the point of use, and set-up and clear-down in procedure and treatment rooms. Where bins need to travel rather than boxes, the manufacturer’s published bin transport cart is the better fit: a chrome cart published at 24 by 60 by 69 inches with four large bins, 5 inch swivel thermoplastic resin casters (two braked) and a published ship weight of 165 pounds – covered on the medical supply carts page.

Not sure which cart and finish to specify?

Send what the cart carries, the corridor width and how it gets cleaned. We will come back with the model, shelf combination and finish, the published dimensions and load figures, and a quote. No charge for the configuration work.

Resources

Hospital utility cart FAQ

What size are the published wire utility carts?
The current published table lists 18 by 36 inch and 18 by 42 inch shelf footprints at 37-1/2 inches high, in two and three shelf builds, with published ship weights from 38 to 51 pounds. Other sizes and shelf combinations are available but are not all in the published table, so we confirm the exact model on the quote.
How much can they carry?
The manufacturer publishes up to 1,200 pounds mobile load capacity for the push handle wire carts and up to 550 pounds for the polymer carts. Those are the manufacturer’s published figures for an evenly distributed load; we do not interpret or extend them.
Which finish should we choose?
Chrome, stainless steel and epoxy are all published for the wire carts. Chrome is the general-purpose choice, epoxy suits colour coding and coated surfaces, stainless suits wash-down and heavy duty. Polymer carts are published in gray.
Wire or moulded polymer shelves?
Polymer if the cart carries bottles, liquids or loose small items, because the recessed shelf holds them and wipes down quickly. Wire if the cart carries boxed stock or linen and capacity matters. Mixed wire and solid shelf builds are published if you want both on one cart.
Can we lock a utility cart?
Enclosed wire security carts with lockable doors are published as a separate cart style, and covers and enclosure panels are available for open carts. An open shelf cart cannot be made secure with accessories alone, so if the contents need to be locked, specify the security style up front.
Do you supply replacement casters and bumpers?
Yes, as quote lines. Donut bumpers and casters are the parts that wear on a cart that works hard, and replacing them is far cheaper than replacing the cart. Send the model number from the cart label and we will match the parts.

Get a hospital utility cart quote

Tell us what the cart carries, the corridor width and the finish you want. You get the model, the manufacturer’s published dimensions and load figures, accessory options, freight and lead time at no charge.
