Hospital facilities storage is the non-clinical backbone: the plant operations shop, EVS closets, maintenance parts, bulk supply and the dock-to-department flow that keeps every clinical department stocked. It is also the storage nobody budgets for until it overflows. This page covers the Quantum Medical facilities systems we supply — wire and steel shelving, dunnage racks, secured storage, utility carts and distribution containers. Labs USA is a supplier and project partner, not the manufacturer; for clinical storage start at healthcare storage solutions.
The storage behind the storage
Clinical supply rooms get designed; facilities storage usually just accumulates. Treating the shop, the dock and the EVS closet as designed spaces recovers more square footage than almost any clinical project, because these rooms were never planned in the first place.
Quantum Medical publishes a dedicated facilities storage range alongside its clinical lines, and the families overlap deliberately — the same shelving platform, casters and bins run from the dock to the department, so parts and stock move without repacking. The systems below are the ones we quote for plant operations, environmental services, maintenance and bulk supply areas. Every capacity figure is the manufacturer’s published number; anything not published is confirmed on the quote.
The facilities storage families we supply
Wire shelvingChrome, stainless and epoxy-coated wire shelving published at up to 800 pounds per shelf, in widths from 12 to 36 inches and lengths to 72 inches.
Solid and steel shelvingSolid shelves for small parts that fall through wire, published with dual layer construction and a double hemmed perimeter on the steel line.
Dunnage and platform racksTubular steel dunnage shelves with removable wire decking, published at 1,300 to 1,600 pounds for the heaviest floor-level loads.
Secured storageModular enclosure panels, security carts and locking containers for stock that needs to be behind something.
Utility cartsWire, solid and polymer utility carts published at up to 1,200 pounds mobile load, in chrome, stainless and epoxy finishes.
Distribution containersAttached-top and latch containers, totes and dollies that run the dock-to-department route.Shelving for shops, docks and support areas

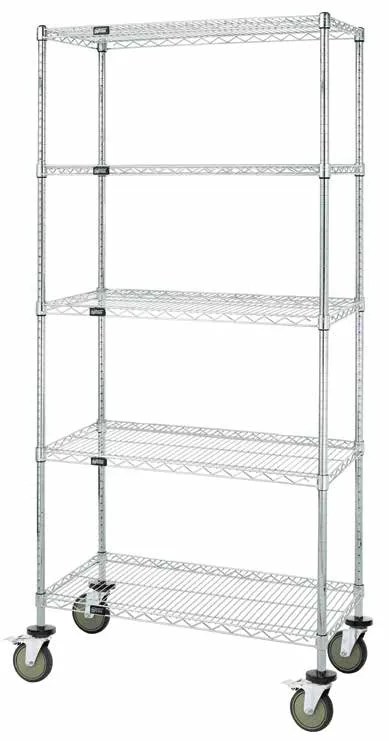

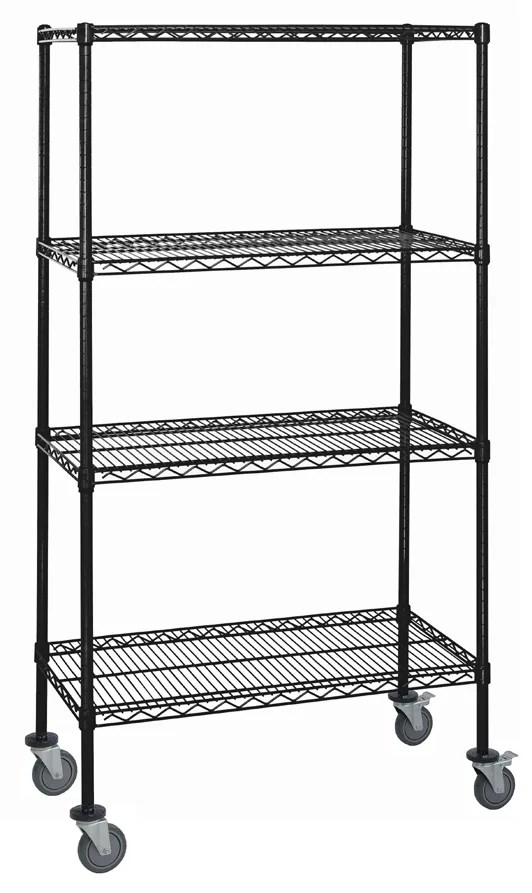

The workhorse is the same wire shelving platform used clinically, in the finishes that suit rougher rooms. The manufacturer publishes chrome wire shelving at up to 800 pounds per shelf in widths from 12 to 36 inches, lengths from 24 to 72 inches and post heights to 96 inches; epoxy-coated wire at the same 800 pound rating with a 15 year limited warranty, suited to wash bays and humid plant rooms; and solid galvanized and stainless shelves at up to 600 pounds where small parts would fall through wire.

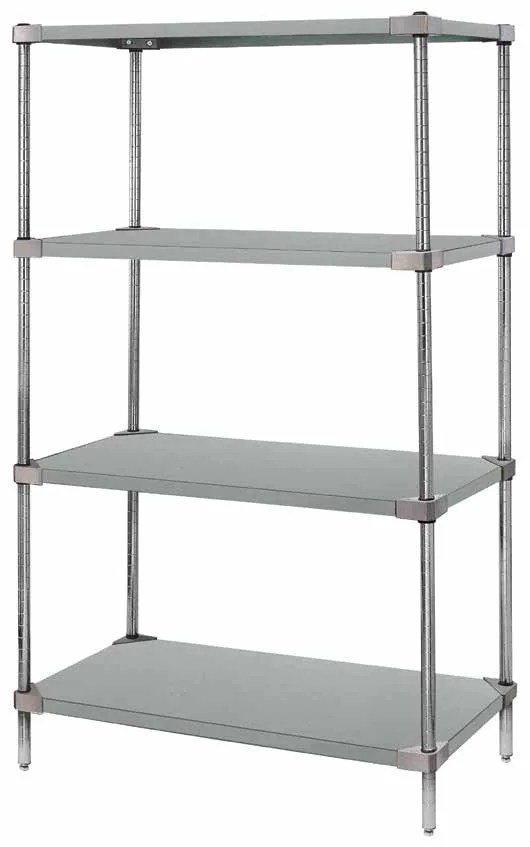

The current steel shelving page adds solid steel shelf systems described with dual layer construction and a double hemmed perimeter for heavier equipment and tools. For corrosive or wet areas the all-polymer Millenia platform is published at up to 1,000 pounds per shelf and 2,000 pounds per unit evenly distributed, with a lifetime warranty against rust and corrosion.
Every family takes the published caster kits, so a stationary run can become a mobile one. Where units stay put, the manufacturer publishes seismic foot plates for anchoring stationary shelving to the floor — we specify anchoring to the criteria your facilities team provides. The full range is on our healthcare shelving page.
Dunnage racks, platforms and parts storage
For the heaviest floor loads — case goods, motors, salt, bagged and drummed stock — dunnage shelves are published in 1 inch square tubular steel with removable wire decking and load capacities of 1,300 to 1,600 pounds depending on shelf length, in Blue Endurance or Gray Epoxy finishes. Modular dunnage racks put that shelf on 14 inch posts with a three-sided retaining frame; the mobile platform version adds 5 inch casters for moving case goods between cleaning, stock rooms and the dock.

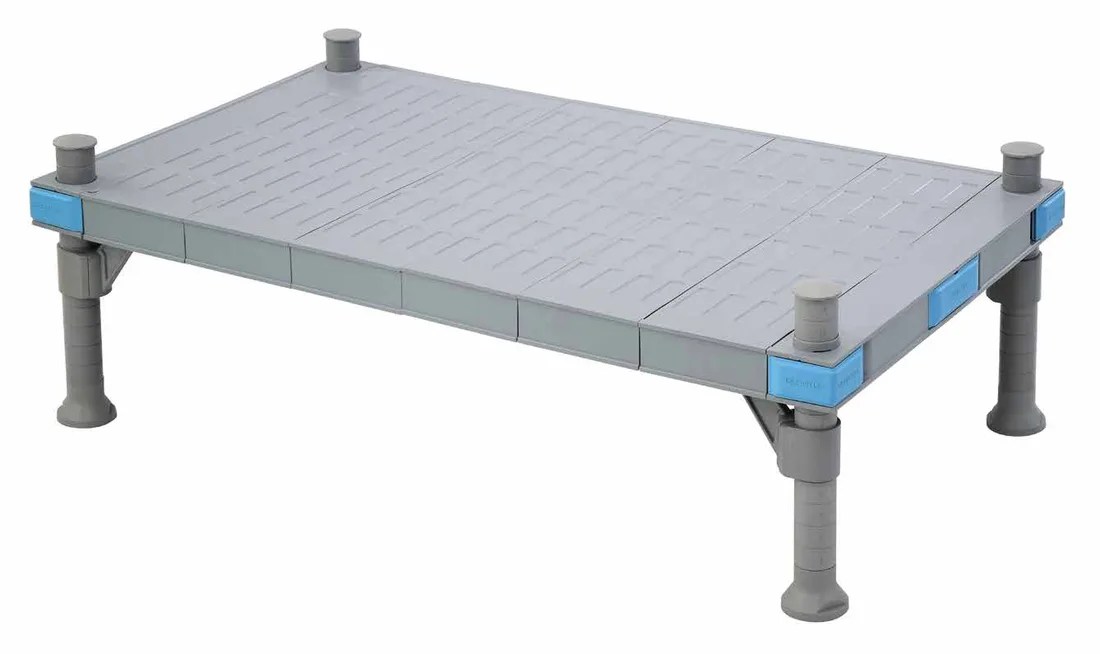

Millenia platforms do the same low-level job in polymer, on 14 inch posts with vented or solid decks, for wet rooms where steel is the wrong answer.
Small parts are the other half of a maintenance shop. The live facilities range publishes interlocking storage cabinets — polystyrene drawer cabinets that connect horizontally and vertically and mount to a wall, with removable drawers, label holders and seven divider slots per drawer — plus tool organizers with up to 22 or 32 compartments, wrench holders and racks, and sloped-shelf pick racks that present bins at an angle for fast picking. Pair them with the bin families on medical bins and containers and the panels and rails on wall mounted medical storage to get benches and walls working too.
Secured and enclosed storage
Some facilities stock needs to be behind something: high-value parts, controlled equipment, clean linen moving through public corridors. The wire catalog publishes modular enclosure panels fabricated from 6 gauge wire on 3 by 3 inch squares, working with four shelf depths and three heights, with clip hardware that fastens the panels tight to the shelves — the published route to turning a standard shelving bay or cart into a secured one.
On the mobile side, the current cart range includes security carts and enclosure carts, linen carts published with four or five enclosure panels and a solid bottom shelf, and nylon or clear vinyl covers for open carts. Garment racks are published in stationary and mobile versions with a hang bar rated at 75 pounds evenly distributed. For locked hard-sided storage, see medical storage cabinets — the live facilities line publishes all-purpose cabinets in 36, 48, 60 and 72 inch widths.

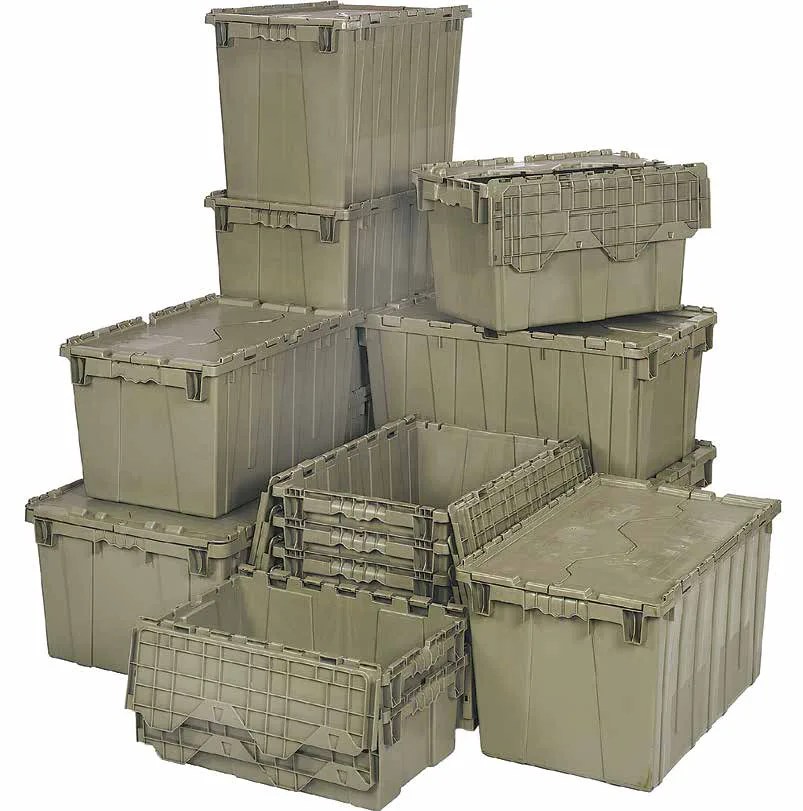

Containers secure the smallest unit of the flow: attached-top containers with interlocking lids and a padlock eye, and latch containers that snap closed to keep dust and splashes out, published to hold up to 75 pounds.
Utility carts and dock-to-department flow
The published wire utility carts ship with two u-handles, four donut bumpers and four swivel casters, two with brakes, in wire, solid or mixed shelf combinations and chrome, stainless or epoxy finishes — with mobile load capacities published up to 1,200 pounds. Polymer utility carts carry a published 550 pounds in two sizes with two or three shelves, and flat-top versions give EVS and maintenance a working surface that travels.
Mobile rail carts and post basket carts from the current range carry bulk items on the same platform, and HULK mobile containers put casters under the largest bins.

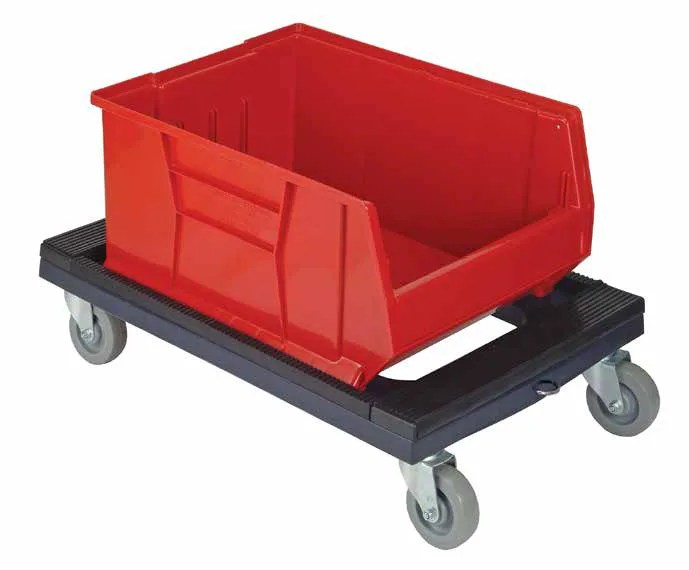

Distribution is the same families in motion: stack-and-nest totes with lockable lids for ward deliveries, cross stack tubs at a published 100 pounds each, and the DLY-3018 dolly published at 1,000 pounds for moving loaded containers without a cart. The receiving pattern that works: bulk arrives at the dock, breaks down onto dunnage and wire shelving, moves in totes and tubs on supply carts, and lands in the bins the departments already use. Our central supply department page covers the clinical end of that route.
Where facilities storage earns its keep
Maintenance parts roomsDrawer cabinets and divided drawers keep thousands of small parts countable — and findable by someone other than the person who put them there.
Bulk and overflow stockCompact and mobile systems absorb the overflow that otherwise lives in corridors and stairwell landings.
Wet and washdown areasPolymer and epoxy systems with removable shelf mats for wash bays, EVS closets and anywhere hoses come out.High-turnover facilities areas also borrow from the clinical playbook: high-density storage doubles what a parts room holds, and modular lockers give trades and EVS teams somewhere to stage equipment that is not the floor.
Configuring facilities storage
The decisions that matter, in the order they save money:
- Weight first — match published shelf capacities to the real loads: 600 to 800 pounds per shelf on wire and solid lines, 1,000 on polymer, 1,300 to 1,600 on dunnage
- Environment second — chrome for dry rooms, epoxy or polymer where humidity, washdown or chemicals are involved
- Off the floor — anything on the slab in a wet or bulk room belongs on dunnage or platforms, not cardboard
- Security by list — write down what actually needs locking before buying enclosure; most stock only needs to be organised
- Mobility where flow exists — casters on the units that genuinely travel; anchored stationary runs everywhere else
- One container standard — totes and bins that run dock to department without repacking
Have a shop, dock or closet that stopped working?
Send photos and rough dimensions. We come back with a layout, a parts list with the manufacturer’s published capacities, and a quote — free. The Design Center has intake checklists and planning tools.
Facilities storage in detail
Each family has its own page with configuration guidance and the published models where the manufacturer publishes them.
- Hospital maintenance storage — louvered bin racks, mobile rail carts and tool organizers for plant operations.
- Work benches and workstations — bench and cabinet combinations, bench top bin racks and mobile workstation carts.
- Bulk storage racks and steel shelving — open and closed steel shelving with published heights, shelf sizes and load figures.
Resources
- Healthcare storage design center — layout support, intake checklists and planning tools.
- Design and planning services — how a design engagement runs and what we need from you.
- About Labs USA — who we are and how we work with facilities and supply chain teams.
Hospital facilities storage FAQ
What counts as facilities storage in a hospital?
How much weight can the shelving hold?
What should we use in wet or corrosive areas?
Can shelving be secured or enclosed?
Do the carts survive maintenance use?
Is this the same storage the clinical departments use?
Do you plan whole facilities areas or just supply parts?
Get a hospital facilities storage quote
Tell us the rooms, the loads and what has to move. You get a layout, a parts list with published capacities, and freight and lead times — free.
