A pilot reactor arrives six weeks before startup, and the first site check reveals critical issues. The vessel clears the room height, but the delivery path is tight, the floor under the planned hood location needs review, the exhaust volume will upset room balance, and the utility drops are on the wrong side for service access. On drawings, the setup looked workable. In the field, it is a containment and installation problem.

Walk-in fume hoods are specified for projects like this. They provide floor-level containment for tall assemblies, skid-mounted equipment, large vessels, and processes that cannot be built safely on a bench. The hood itself is only part of the decision. Good results depend on how the enclosure ties into exhaust capacity, makeup air, floor loading, utility routing, rigging access, and the testing plan after installation.

I have seen otherwise sound projects run into avoidable trouble because the team chose the hood before checking the room. Equipment fit was treated as the main criterion. Service clearance, sash travel, duct static pressure, drain routing, and field modifications were left for later. That usually means change orders, delayed commissioning, or operators doing setup steps outside containment.

For teams comparing enclosure types early, review the available fume hood options before the layout is fixed. The right walk-in hood can support the process for years. The wrong one can force HVAC rework, limit maintenance access, and add operating cost long after procurement is closed.

Introduction

A walk-in fume hood is not just a larger version of a bench hood. It is a floor-mounted enclosure designed for oversized equipment, tall setups, and operations where staff may need to enter the hood to position or work around apparatus. Standard external sizes commonly range from 1200 mm to 1800 mm wide, 850 mm deep, and 2350 mm high, with internal work areas ranging from 960 mm × 680 mm × 2000 mm to 1560 mm × 680 mm × 2000 mm depending on model, as described by MaxLab Furniture.

The defining difference is access and volume. Walk-in units are built to support large distillation columns, multi-liter vessels, industrial process gear, and other bulky setups without forcing hazardous assembly outside the enclosure. The internal working height is engineered to be at least 78 inches, which allows technicians to enter and manipulate large equipment, according to the University of Michigan design guidance.

Article Summary

Quick summary: Walk-in fume hoods are the right choice when your process is too tall, too heavy, or too complex for a standard benchtop enclosure.

• Best fit for tall apparatus, floor-standing equipment, pilot-scale work, drum handling, and equipment cleaning.
• Containment depends on airflow design. Hood size alone doesn't make a project safe.
• Materials matter. Steel, stainless, and polypropylene each fit different chemical and cleaning demands.
• Facility coordination is critical. Exhaust volume, make-up air, floor loading, and duct routing often decide whether the installation succeeds.
• Testing can't be skipped. Walk-in hoods should be verified in real operating conditions, not just by catalog specs.
• Early planning helps. It improves scheduling, reduces change orders, and avoids late-stage conflicts with structure or HVAC.

What Is a Walk-In Fume Hood and When Do You Need One

A walk-in hood is used when the process can't be handled safely at bench height. That usually means the equipment is tall, the setup is floor-based, or the operator needs more interior clearance than a standard hood can provide.

How it differs from a standard hood

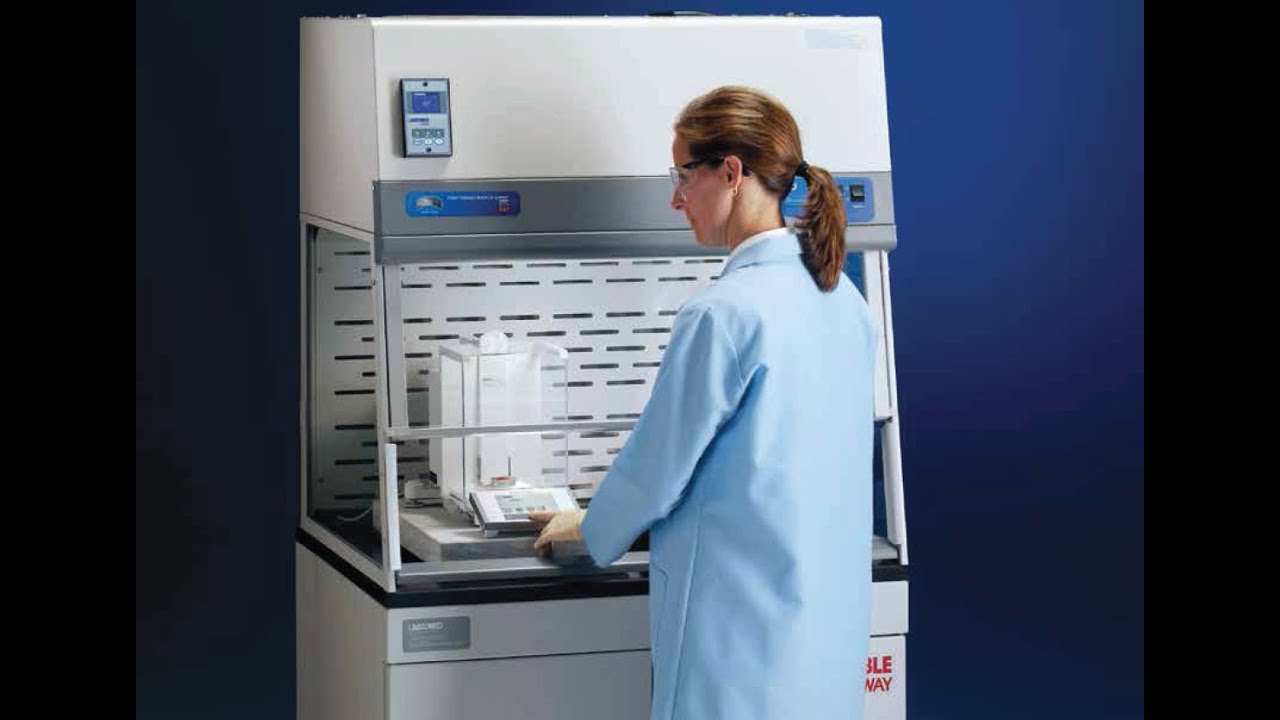

A standard hood is usually built around benchtop access. The user stands outside and reaches in. That works well for routine chemistry, small instruments, and moderate apparatus heights.

A walk-in hood changes the working model. The enclosure is floor mounted, the opening is larger, and the internal height supports full apparatus setups. Personnel can enter the enclosure area as needed for positioning, maintenance, or operation around large equipment.

When teams build part of the setup outside the hood because it won't fit inside, that's often the point where a walk-in model becomes the safer choice.

Clear signs you need one

The need is usually obvious once the process is accurately mapped. Common triggers include:

• Tall apparatus such as distillation columns or stacked reactor assemblies that exceed practical bench hood clearance
• Large floor equipment like reactors, centrifuges, or rolling process skids
• Pilot plant operations where larger vessels and process piping need in-hood access
• Drum dispensing where containers sit on the floor and require controlled transfer space
• Equipment cleaning when contaminated parts need contained washdown or solvent handling
• Assembly inside containment because moving hazardous material in and out during setup would create exposure risk

Typical use environments

Walk-in hoods are often selected for:

• Pharmaceutical research
• Chemical process development
• University engineering labs
• Industrial applications with specialized chemical handling

The practical point is simple. If the process depends on vertical space, floor access, or large-batch manipulation, trying to force it into a benchtop hood usually creates operational workarounds that reduce safety.

Core Design and Airflow Principles for Containment

A walk-in hood that looks generous on paper can fail containment the first day a tall reactor, transfer line, and operator all occupy the opening. The problem is rarely the hood shell alone. It is the interaction between face velocity, internal geometry, sash position, room supply air, and duct layout.

Face velocity and why balance matters

For walk-in hoods, average face velocity has to be high enough to capture vapors at the opening and stable enough to avoid roll-out. The University of Virginia guideline sets a target average face velocity of 80 feet per minute with a tolerance of ±5 percent, or 76 to 84 fpm, and states that speeds above 88 fpm should only be used when airflow visualization confirms acceptable containment.

Other institutions set a stricter baseline. Stanford requires laboratory fume hoods to maintain an average face velocity of at least 100 fpm, with no point below 70 fpm, in its laboratory standard design guideline.

The design lesson is practical. Specifying one target number is not enough. The hood has to be selected for the site standard, the chemical hazard, and the room air pattern around the opening. A hood that passes factory testing can still perform poorly after installation if a supply diffuser throws air across the face or if operators routinely work with the sash higher than the tested position.

Baffles, sash geometry, and interior shape

Large openings are difficult to keep uniform. Air will favor the easiest path unless the hood interior is shaped to distribute flow across the full height and width.

On one pilot-scale project, an 8-foot-wide by 4-foot-deep walk-in hood was intended for a tall glass distillation setup. The original concept used a simple rear baffle layout similar to a bench hood. During review, the weak point was obvious. The upper corners and side zones were likely to underperform once hot equipment created thermal currents. The final design used dual rear baffles, adjustable upper and lower slots, and side-wall bypass paths to even out capture across the opening.

Ceiling shape also changes performance. In a retrofit I reviewed, a flat interior top allowed unstable flow near the upper sash area during smoke testing. Revising the hood to a 15-degree sloped ceiling and tuning the rear slots improved capture where operator movement had been disrupting the airflow. That kind of change rarely appears in a catalog comparison, but it can decide whether a large hood works in daily use.

Exhaust volume and room interaction

Walk-in hoods impose a heavy load on the building system. The exhaust requirement is often large enough to affect room pressure balance, adjacent door swing, noise levels, and the ability of the air-handling unit to maintain stable make-up air.

This is one of the most missed planning issues in real projects. Teams focus on hood size and chemical resistance, then discover late in design that the branch duct is undersized, the fan has no capacity margin, or the room supply layout sends a cross-draft straight into the opening. Early coordination around optimizing HVAC duct design for projects helps prevent those failures, especially in renovations where duct routing and shaft space are already constrained.

Operator traffic matters too. A walk-in hood placed near a corridor door or across from an active supply grille can lose containment even when measured face velocity looks acceptable. Good containment depends on the full room setup, not just the hood tag.

Sash type trade-offs

Sash selection affects containment and day-to-day use.

• Vertical-rising sash supports loading tall equipment and large floor-mounted apparatus, but it also creates a large opening that increases sensitivity to operator movement and room drafts.
• Horizontal sash panels give better control over the working opening for repetitive tasks, but they can interfere with handling bulky vessels or drum transfer equipment.
• Combination sash designs can improve routine operating positions while preserving occasional full-height access, though they add moving parts and require clearer user training.

The right choice depends on how the hood will be used. A hood intended for frequent equipment roll-in has different sash needs than one used mainly for contained charging and observation.

Alarm setpoints, sash operating rules, smoke visualization, and periodic performance checks should be part of the containment plan from the start. For a practical overview of those operating controls, see these fume hood safety guidelines.

Choosing Materials and Planning for Utilities and Structure

Material choice should follow the chemistry, cleaning method, and service life expected from the hood. Utility planning should follow the process. Structural review should happen before anyone places an order.

Walk-In Fume Hood Material Comparison

Utility integration that supports the process

A walk-in hood often needs more than exhaust and lighting. It may need:

• Electrical service for heaters, mixers, pumps, controls, or instrument power
• Gas and water for process connections or cleaning
• Vacuum lines for transfer or filtration steps
• Data pass-throughs for monitoring and instrumentation
• Access panels that allow maintenance without tearing apart the installation

The best layouts keep these services out of the operator's way while still making them easy to reach. Side-wall utility panels are often easier to manage than rear connections once equipment is in place.

Structural and HVAC issues that get missed

At this stage, many projects become expensive.

A large walk-in hood can impose meaningful floor load. In one pilot plant installation, a 4-foot-deep hood with a concrete-lined floor pan for spill containment weighed about 2,800 pounds. That required structural reinforcement at the install location. If the floor review had happened later, the project would have stalled.

Exhaust infrastructure can be just as demanding. High-volume walk-in hoods require make-up air systems to keep the room stable and to avoid negative pressure problems. They also need ductwork sized for the actual hood demand, not a rough guess carried over from a benchtop project.

If a walk-in hood is being discussed before the mechanical engineer has confirmed room air balance, the project is still in concept, not in purchasing.

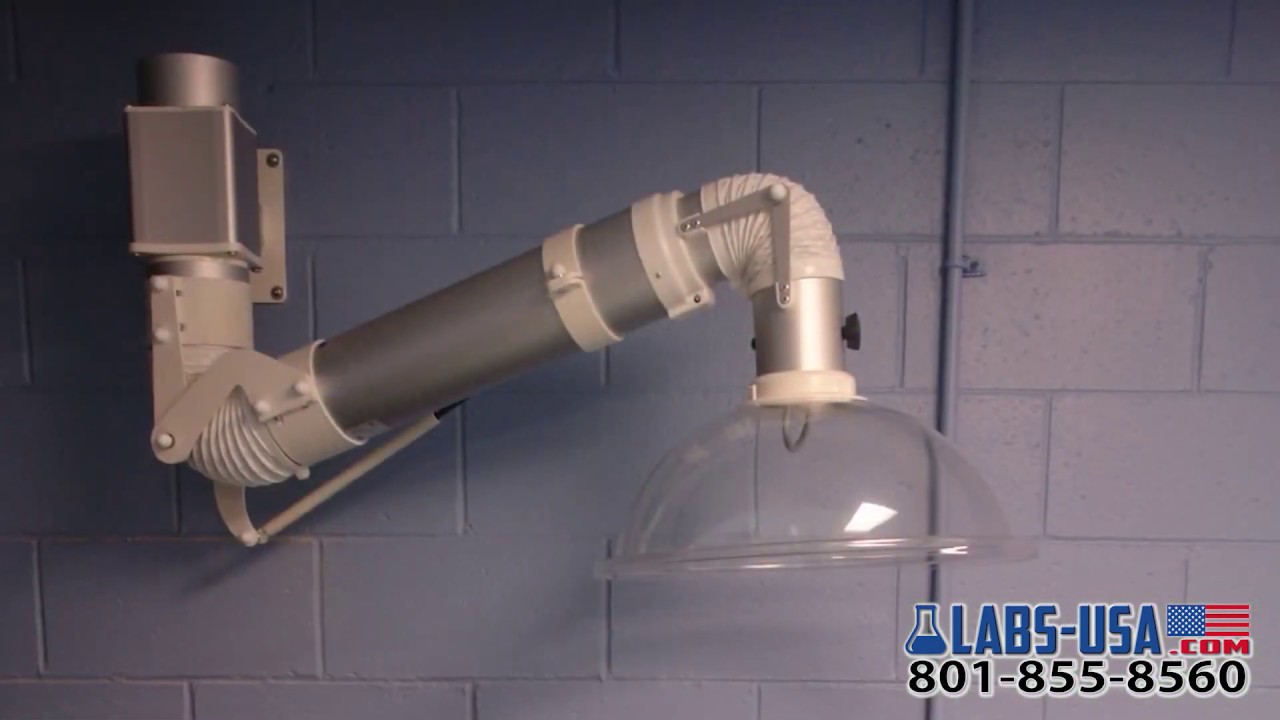

When medical, research, or hybrid lab spaces need related source capture planning, teams often compare hood exhaust with broader medical lab exhaust systems to sort out what should be handled by the hood and what should be handled elsewhere in the room.

How to Select the Right Walk-In Fume Hood

A good selection process prevents bad assumptions from becoming permanent construction details.

Five-step checklist

1. Define the process first
   List the chemicals, heat sources, equipment footprint, operating height, and cleaning method. If the application could be handled by another hood type, compare it before committing. This overview of ducted vs. ductless fume hoods is a useful early checkpoint.

2. Measure the operational setup
   Measure the tallest operating condition, not just the stored condition. Include service clearances, lifting path, and the space needed for hands, tools, and vessel changes.

3. Check the room, not just the spec sheet
   Confirm floor capacity, delivery path, ceiling constraints, mechanical chase access, and exhaust routing before release.

4. Map utilities to the workflow
   Decide where electrical, vacuum, water, gas, and controls should enter the hood so hoses and cords don't cross the work area.

5. Plan the test and compliance path up front
   Confirm who will review containment requirements, what standard applies, and how the hood will be tested after installation.

What buyers often overlook

• Working position matters as much as full-open loading position
• Maintenance access needs space around the hood
• Noise from high exhaust volume should be discussed early
• Lead times can stretch if custom geometry or utility panels are added late

Application Case Studies and Decision Scenarios

A walk-in hood project usually goes off track before the hood arrives. The failure point is often upstream: the process equipment grew after concept design, the exhaust volume was priced from a catalog cut sheet instead of the actual opening, or the room structure could not support the loaded base and equipment. Those are the problems that drive change orders.

Scenario one with a tall distillation setup

A specialty chemical manufacturer needed to run a tall distillation train with a fractional column, a heating mantle on a lab jack, and multiple receivers that had to be swapped during operation. A standard bench hood did not provide enough vertical working space, and it also created poor access around the lower vessel area.

The final design used an open interior with no fixed shelving, a reinforced floor pan, retort support points above the work zone, and utility panels on both side walls so cords and tubing stayed out of the operator path. The sash had two practical positions. It opened high for setup and glass changes, then ran lower during active operation to maintain a better face opening. That is a common trade-off on distillation work. The largest opening is convenient for loading, but the normal operating opening determines containment and exhaust demand.

Scenario two with a pilot plant hood

A pilot plant team specified a large walk-in hood for reactor trials, drum staging, and periodic cleaning of process vessels. The hood itself was only part of the decision. The larger issue was whether the building could support the exhaust volume, utility routing, and live load once the hood was filled with equipment.

On projects like this, the internal geometry matters more than buyers expect. A wide opening can develop dead spots and uneven capture if the plenum, baffles, and exhaust takeoff are treated like a scaled-up standard hood. The structure matters too. An older slab may handle the hood shell but not the combined weight of a reactor skid, operators, and secondary containment. Mechanical capacity becomes another gate. If the building cannot deliver the added makeup air and exhaust, the hood specification is incomplete no matter how good the submittal looks.

Labs USA is one option for such projects when the scope also includes coordinated casework, utility planning, and related lab package decisions.

Scenario three with an installation-day obstruction

A university renovation hit a familiar field problem. The mechanical chase above the hood was shallower than the record drawings showed, so the planned top connection would have forced a hard elbow in a tight space.

That kind of conflict sounds minor on paper. In practice, it can delay rigging, duct fabrication, controls coordination, and final balancing.

The team changed to a rear upper exhaust arrangement and fabricated a transition that fit the actual clearance. The hood could still be installed, but the redesign added cost and consumed schedule float that should have stayed with commissioning. This is why I push teams to review actual field dimensions early and tie the hood release to that verification. For teams mapping labor and duct revisions during planning, Exayard HVAC estimating software can help quantify the mechanical impact before those changes reach the field.

Four decision guides that come up often

• Drum dispensing
  A walk-in hood makes sense when containers stay at floor level and the operator needs access for pumps, scales, or funnel transfers without lifting heavy vessels onto a bench.

• Equipment cleaning
  Specify for washdown, residue, and abrasion. The right liner, floor detail, and drain strategy usually matter more than accessory storage.

• Large reactor service
  Place utilities where maintenance crews can reach them without working across hot surfaces or temporary hoses. Service access often drives layout more than the reaction setup itself.

• Shared research use
  Keep the interior flexible if future apparatus is uncertain. Fixed supports and custom cutouts solve one problem well, then create the next one.

Teams also underestimate how often field modifications change the final outcome. A walk-in hood may need a revised utility entry, a different exhaust collar orientation, added floor reinforcement, or a split shipment because the delivery path cannot handle the assembled unit. Those issues should be discussed before approval, not after fabrication. A practical walk-in fume hood installation planning guide is useful at this stage because installation risk is usually where budget assumptions start to break.

Installation, Compliance, and Long-Term Maintenance

A walk-in hood project often looks straightforward until the unit reaches the building. Then practical constraints often manifest. The exhaust connection may conflict with existing ductwork, the floor may need reinforcement under a lined hood and floor-mounted equipment, or the delivery route may force the installer to bring the hood in as subassemblies and complete work on site.

Those field conditions affect cost, schedule, and containment performance.

Installation details that affect performance

Placement still matters, but room integration usually causes the bigger problems. A walk-in hood needs stable room air patterns, enough make-up air, and supply diffuser locations that do not push air across the opening. I have seen a properly specified hood fail its first commissioning test because a nearby diffuser washed the face with turbulent air after a late HVAC revision.

The support conditions need the same level of review. Large walk-in hoods can impose meaningful dead load before process equipment, reagent drums, pumps, or shielding are added. In older buildings, the structural check is sometimes more important than the hood submittal review, especially when the unit sits over a framed floor instead of a slab on grade.

Access planning is another common miss. Verify the route from loading dock to final room, including door clearances, corridor turns, elevator limits, ceiling height, and any need for rigging. If the hood must be modified in the field for utility entry, chase conditions, or exhaust collar orientation, that work should be controlled, documented, and reviewed by the manufacturer and project team before installation proceeds.

Compliance and testing

Code compliance and performance verification are not the same thing. A hood can meet the purchase specification and still perform poorly once it is tied into the actual room.

Commissioning should include ASHRAE 110 testing in the installed condition, with the sash position, equipment load, and operator configuration that match real use. EHS, facilities, and the user group should all review the setup before the test. If the hood will serve drum dispensing, reactor charging, or large apparatus cleaning, test conditions should reflect that work rather than an empty interior.

Documentation matters after turnover. Keep the test report, balancing data, control sequences, alarm setpoints, and final utility drawings together. That record becomes important when airflow changes later, a VAV sequence is adjusted, or a process owner adds equipment that was never part of the original basis of design.

For mechanical budgeting and coordination, some teams use Exayard HVAC estimating software early in design to compare exhaust volume, make-up air demand, and downstream HVAC scope before change orders appear in the field.

Long-term maintenance habits

A walk-in hood stays safe when the facility treats it as an operating system, not a one-time purchase.

• Check airflow monitors and alarms routinely and investigate nuisance alarms instead of bypassing them.
• Keep the air path open so carts, drums, and temporary hoses do not block flow near the baffle or face opening.
• Clean liners, sashes, and service fixtures based on actual chemical exposure rather than a generic housekeeping schedule.
• Retest after meaningful changes such as diffuser relocation, exhaust rebalance, sash repair, process changes, or new floor-standing equipment.
• Inspect floor joints, coved details, and penetrations where chemical residue and washdown water can damage materials over time.
• Maintain service access so valves, electrical disconnects, and controls can be reached without climbing into the hood around contaminated equipment.

For teams heading into construction or retrofit, this walk-in fume hood installation planning guide is a useful reference for coordinating purchasing, trades, startup, and final handoff.

Frequently Asked Questions

Is a walk-in hood always more expensive than a benchtop hood

Usually, yes. The hood is larger, and the supporting exhaust, make-up air, structure, and installation work are often more involved. Total project cost should include the room-side mechanical and structural scope, not just the hood price.

How do I know if I need a custom layout

You likely need customization if your equipment is unusually tall, floor standing, utility heavy, or hard to service. Customization is also common when the process needs open floor space instead of shelves or fixed internal fixtures.

Can a walk-in hood use standard lab utilities

Sometimes, but not always. The answer depends on equipment load, connection count, and where those services enter the hood. Utility planning should be tied to the actual process layout.

What sash style should I choose

Choose based on loading method and operating position. Vertical-rising sashes are often useful for tall apparatus. Other workflows may benefit from horizontal or combination access, depending on how people interact with the setup.

What if the building is older and space is tight

Older buildings often present the biggest challenges with chase space, floor capacity, and delivery route. That's why field verification should happen before final release, not after fabrication starts.

Do I need a structural review

If the hood is large, deep, heavily lined, or carrying substantial equipment, yes. It's a practical step, especially in renovations and upper-floor labs.

How should I think about long-term operating cost

Look beyond the hood shell. Exhaust volume, make-up air demand, maintenance access, material durability, and testing requirements all affect long-term ownership cost.

Can the supplier help with planning

Many projects benefit when the supplier, architect, facility team, and mechanical engineer review the layout together. Early coordination usually leads to fewer revisions, cleaner installs, and better procurement timing.

Conclusion

Walk-in fume hood design and applications only look simple from the catalog page. In practice, the hood has to fit the process, the room, the utilities, the structure, and the test standard. If one of those pieces is missed, the project becomes slower, more expensive, and harder to use safely.

The good projects start early. They measure the apparatus, review the mechanical path, check the floor, and plan the operating position before the order is placed. That approach protects safety and avoids late design changes that can slow construction and procurement.
