3D Printer Fume Extraction for Utah Makerspaces and Prototyping Labs
Filament and resin printers release ultrafine particles and vapors. Labs USA supplies exhaust snorkels that capture them at the printer and the post-processing bench, for Utah schools, makerspaces and labs.
Why 3D Printers Need Fume Control
Desktop 3D printers have moved out of the engineering shop and into classrooms, libraries, design studios and research labs. That shift puts people close to the printers for hours at a time. NIOSH researchers report that both filament (fused filament fabrication) and resin (vat photopolymerization) printers release particles and organic vapors while they run, and that the particles are mostly ultrafine, smaller than 100 nanometers, a size that can reach deep into the lungs (NIOSH, Factors Influencing Emissions from 3D Printers).
Utah campuses show how common shared printing has become. The University of Utah’s Marriott Library lists more than half a dozen makerspaces across campus, from Lassonde Studios to the Digital Fabrication Lab (ProtoSpace). Utah Valley University has run a 3D Print Lab in Orem since 2015 that makes parts for labs, departments and senior capstone projects (UVU 3D Print Lab). Every one of these rooms needs a plan for the air around the printers, and a well-placed exhaust snorkel is often part of it.
What NIOSH Recommends for Print Room Air
NIOSH’s guide for makerspaces, schools, libraries and small businesses lays out a clear order of preference (Approaches to Safe 3D Printing, NIOSH 2024-103):
Material choice matters too. NIOSH notes that ABS filament produces higher ultrafine particle levels than PLA, so swapping to PLA where the part allows it is a simple first step. For printer emissions testing, the UL 2904 standard gives manufacturers a common method for classroom, office and similar indoor settings.
This page summarizes public NIOSH guidance. Your environmental health and safety team sets the controls for your lab.
Where an Exhaust Snorkel Fits

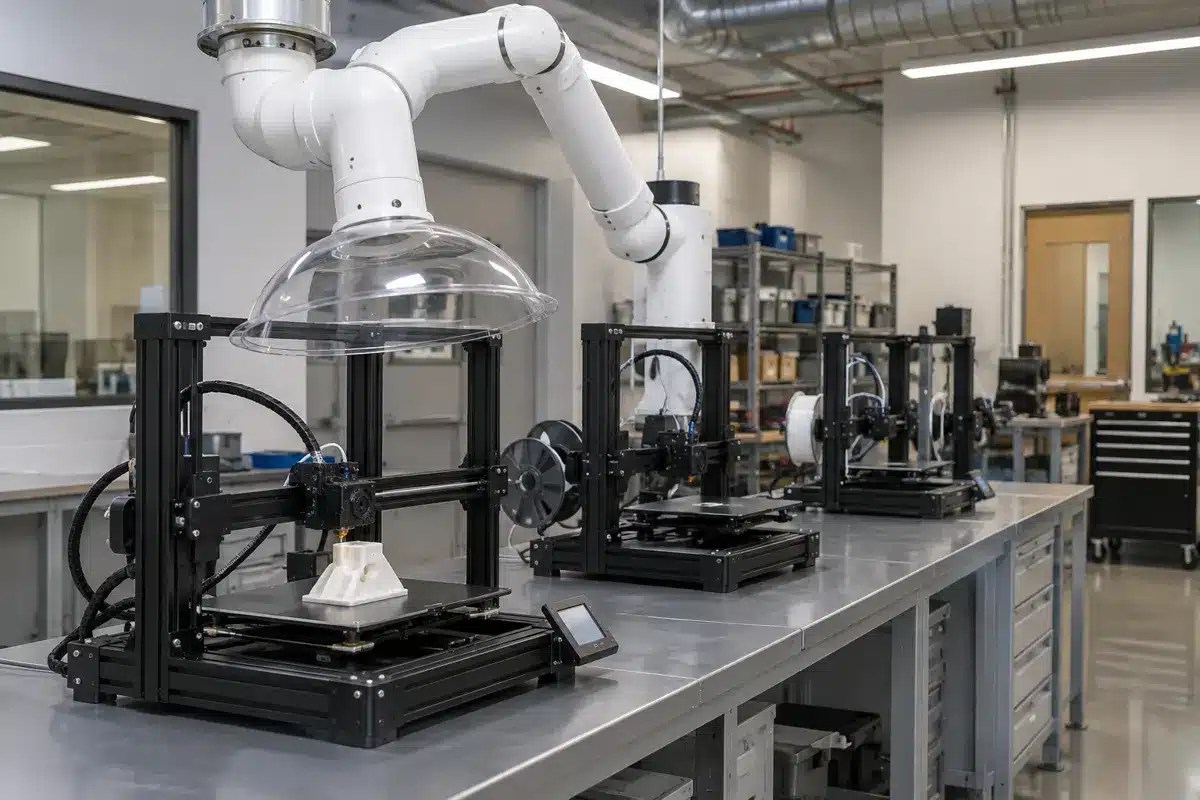

What a snorkel does well. An exhaust snorkel is a jointed arm with a capture hood that you position right at the source, then swing out of the way. It connects to your building exhaust, so captured air leaves the room instead of being recirculated.
Where it fits in a print lab. Snorkels work best over open-frame printers where a full enclosure is not practical, and at the benches where most hands-on exposure happens: support removal, sanding, heat-set inserts, soldering and adhesive bonding.
Keep the hood close to the work. Capture falls off quickly as the hood moves away from the source, so an arm that reaches every station matters more than a large hood. Pick the mount to suit the room: ceiling-mounted snorkels keep benches clear over a printer row, wall-mounted extraction arms suit perimeter benches, and portable fume extractors filter and return air where there is no duct nearby. For sanding and finishing work, a downdraft table pulls dust down and away from the operator.
Resin Printing and Post-Processing
Resin printing brings a different set of chemicals. NIOSH warns that uncured resin contains acrylates that can cause asthma or skin allergies, that printing releases uncured resin particles and gases the cover may not hold, and that UV and heat curing also give off particles and gases (NIOSH Safe 3D Printing flyer).
Part washing usually means isopropyl alcohol, which NIOSH flags for lung irritation. A snorkel over the wash tank and curing station, plus sealed containers, keeps vapors away from the breathing zone.
For solvent-heavy stations, a chemical resistant snorkel is the better match. Our chemical resistant vs ESD vs original snorkel guide explains the difference. Store bulk isopropyl alcohol in approved safety cans or a flammable cabinet, not on the bench. See our safety cabinets in Utah page for options.
Choosing the Right Snorkel Model
Labs USA offers three snorkel builds, and most print labs use more than one:
Electronics prototyping is common in these spaces, so see our ESD-safe fume extraction arms for Utah aerospace and electronics labs for more on static control.
When a snorkel is not enough. Printers that run all day, or print ABS and other higher-emitting materials, are good candidates for a ventilated enclosure ducted to exhaust. Metal powder printing is a separate hazard altogether. NIOSH raises fire and explosion risk with metal powders (NIOSH metal powder guidance), so those systems need their own engineered controls or a laboratory fume hood review, not a snorkel alone.
What to Know Before You Request a Quote
NIOSH recommends a written risk plan that covers every step: pre-printing, printing, post-printing, post-processing, maintenance and cleaning. A good quote follows the same list. Bring these details:
- Number of printers and work stations, and whether they are filament, resin or both
- Materials you print most, such as PLA, PETG, ABS, nylon or photopolymer resin
- Post-processing steps: washing, curing, sanding, solvent smoothing or soldering
- Ceiling height, wall space and where your building exhaust is available
- Whether you need airflow checks after install (see our ventilation verification guide)
How Labs USA Works With Utah Print Labs
Review
We look at your printers, materials and post-processing steps.
Layout
We match snorkel models, reach and mounts to each station.
Coordinate
We work with your facilities team on exhaust connections.
Deliver
Snorkels ship to your Utah site, with installation available.
Serving Print Labs Across Utah
Labs USA is based in Utah and supplies exhaust snorkels to university, college, high school, library, research and product development labs from Logan to St. George, including Salt Lake City, Provo, Orem and Ogden. Rural sites count too: Utah State University’s Bingham Research Center in Vernal offers public 3D printing on an enclosed, filtered printer (USU Bingham Research Center), a reminder that print labs are everywhere.
See every exhaust snorkel option for Utah labs, or browse the full exhaust snorkel line. Planning benches too? Visit lab tables in Utah, laboratory casework in Utah or lab furniture in Utah. Call (801) 855-8560 to talk with our Utah team.
Shop Exhaust Snorkels for 3D Printing Stations
Order the same three exhaust snorkel builds described above online: Original for filament printers and finishing benches, ESD for electronics work and Chemical Resistant for resin wash and curing stations. Need help with reach, mounting or several stations? Call (801) 855-8560.
Frequently Asked Questions
Do 3D printers really need ventilation?
NIOSH research shows filament and resin printers emit ultrafine particles and organic vapors while running. NIOSH recommends good room ventilation plus source control, such as enclosures or local exhaust, especially for regular use.
Is an exhaust snorkel better than a printer enclosure?
They do different jobs. A ventilated enclosure gives the highest capture for a printer that runs all day. A snorkel is flexible, reaches open-frame printers and covers post-processing benches where people work hands-on.
Which snorkel model is best for resin printing?
The chemical resistant model is the usual choice for resin wash and curing stations that use isopropyl alcohol. The original model suits most filament printing and finishing work.
Can a snorkel handle metal powder 3D printing?
No. Metal powder printing carries fire and explosion hazards and needs its own engineered controls. Talk with your safety team and equipment maker first.
Does a snorkel need to connect to building exhaust?
Ducted snorkels connect to your building exhaust so captured air leaves the room. Where no duct is available, a portable fume extractor filters the air and returns it to the room.
Do you serve schools and labs outside Salt Lake City?
Yes. Labs USA ships exhaust snorkels throughout Utah and the surrounding region, with installation available.
