Tall mobile wire unit with rows of open baskets holding clinical stock

Hospital mobile shelving puts clinical stock on units that roll: shelving on casters that parks in a bank and rolls out to be picked, or shelving on a track that slides side to side so the room needs one aisle instead of four. It is the least disruptive way to get more out of a store room, because nothing is fixed to the building. Labs USA plans the layout, specifies the units, and coordinates delivery and installation. Quantum Medical manufactures the shelving described here.

Wide aisle in a hospital supply room between shelving runs loaded with cartons and packs
18 / 24 instandard unit depths*
36–60 instandard unit lengths*
80 intypical overall height on casters*
Freelayout and unit-count planning
*Manufacturer’s published ranges for Quantum Medical mobile wire units. Other sizes exist; we confirm the exact configuration on the quote.

Where mobile shelving beats fixed shelving

Fixed shelving decides your layout once. Mobile shelving lets the room keep changing after the install.

Four situations come up again and again in hospitals, and mobile units answer all four:

The room is full. Parking units against each other and rolling out the one you need removes the standing aisles. That is the whole argument for high-density healthcare storage, and mobile units are the version of it that needs no floor work.

The room is temporary. Swing space during a build, a unit opening in stages, a department that will move. Casters go with you; track and fixed shelving do not.

Stock has to reach the point of use. A loaded unit rolled to the work area beats a person walking back to a store room. Where the item needs to travel with a clinician rather than sit in a room, the answer is usually a medical cart instead.

The floor has to be cleared. Rooms that get wet-mopped, or where the floor is inspected, are much easier to work in when the shelving rolls out of the way.

Mobile wire shelving unit loaded with boxed clinical supplies

The trade is stability and capacity. A unit on casters moves under load, so it wants brakes, bumpers and even loading; a static unit does not. Where loads are very heavy or very deep, static racking is the better answer — see our hospital modular rack system page.

Casters or track?

Units on casters Units on track
Density gained Moderate: you still leave room to manoeuvre High: one working aisle for the whole bank
Floor work None Floor track fixed to the slab, or overhead track
Reconfigurable later Completely Within the bank’s geometry
Published unit capacity Up to 1,200 lb per unit on a caster kit* Up to 1,500 lb per unit on sliding floor track*
Best for Existing departments, swing space, point-of-use stock A room that is staying, and is full
*Manufacturer’s published maximums, evenly distributed. Caster and track options are not interchangeable on every unit: the manufacturer notes, for example, that shelving built up with add-on kits sharing a middle set of posts cannot be made mobile. We check that before quoting.

What a mobile unit is actually made of

A mobile wire unit is four posts, a set of shelves, four donut bumpers and four swivel casters, two of them braked. The manufacturer’s published mobile wire units use 5 in stem casters in polyurethane or thermoplastic resin, come in 18 in and 24 in depths and 36 to 60 in lengths, and stand around 80 in tall overall in five- and six-shelf builds. Garment versions add a hang bar rated by the manufacturer at up to 75 lb evenly distributed.

Shelves are the part you choose for the room: open wire for airflow and visibility, solid shelves or shelf plates where you do not want anything falling through, and polymer shelf plates where the unit lives somewhere humid. Finish follows the environment — the manufacturer rates chrome and galvanized for dry storage, and epoxy-coated, 304 stainless and all-polymer for wet, cooler and freezer areas.

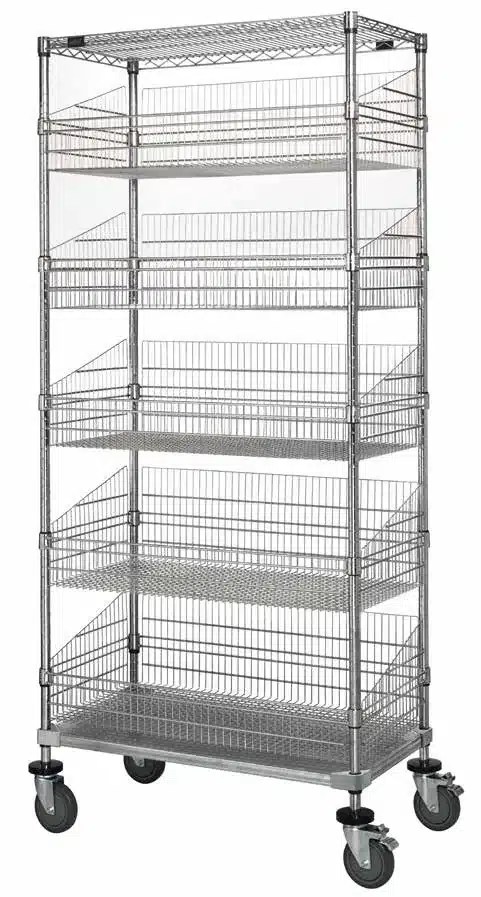

Mobile wire unit fitted with several open pull-out baskets on casters

Track systems, their capacities and the space math behind them are covered on the parent page: high-density healthcare storage.

Mobile shelving families we supply

Most departments end up with two or three of these in the same room.

Mobile wire unit holding eight large blue hopper bins of suppliesMobile bin unitsLarge hopper bins on a rolling frame, one colour per unit, for bulk items picked by hand rather than by carton.
Mobile wire rack with folded blue drapes hanging over the shelvesMobile shelving for packs and drapesOpen wire shelving on casters for wrapped packs, drapes and anything that should not be stacked flat.
Mobile wire garment rack with hanging gowns and a lower shelfMobile garment and apparel racksHang bar plus a lower shelf for gowns and coats, with a stationary version where the rack stays put.

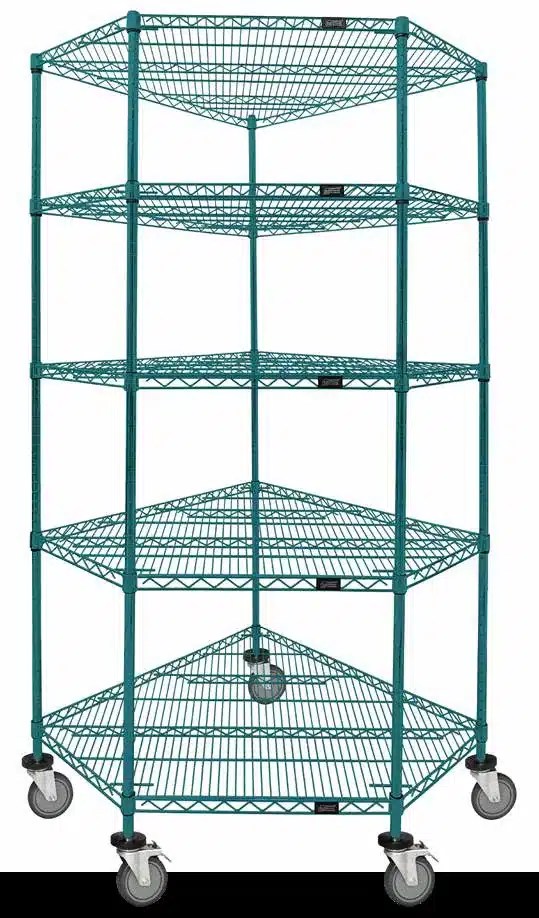

Corner wire shelving unit on casters for turning a shelving runCorner and add-on unitsCorner units to turn a run, and add-on bays that share posts. Add-on bays stay stationary by design.

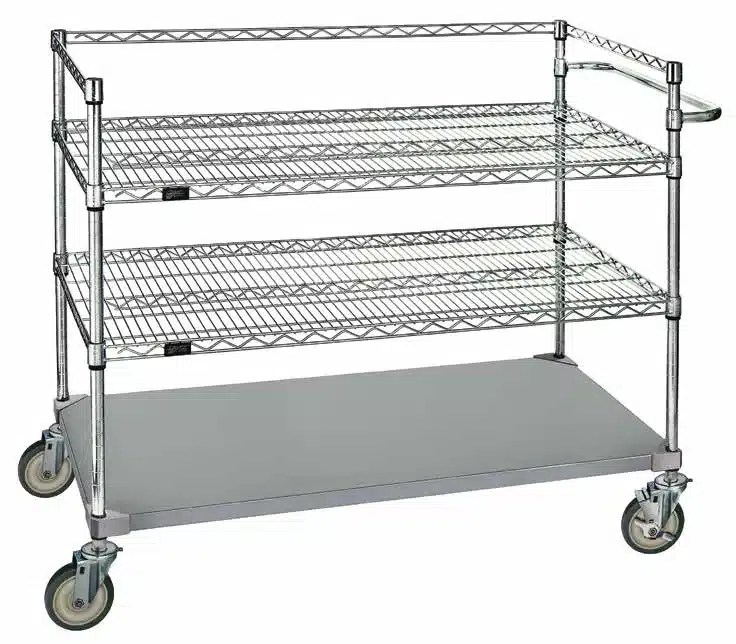

Chrome utility cart with a solid lower shelf and swivel castersUtility and shelf cartsTwo- and three-shelf carts with push handles, for moving stock rather than storing it.
Mobile wire rack with upright tool holders above red binsMobile racks with holdersUpright holders and bins on a rolling frame for long-handled items and housekeeping equipment.

Basket modules, colour coding and par levels

Flat shelves waste the back half of a deep unit, because nobody reaches past the front row. Pull-out baskets fix that: the basket comes out on glides and the whole depth is reachable without unstacking anything. The manufacturer’s published post basket units combine four or five baskets with wire and solid shelves on 74 in posts, in the same 18 and 24 in depths as the rest of the range, on braked casters.

The other half of the job is finding things. Three cheap habits do most of the work:

One item, one labelled location. A shared shelf becomes an unfindable shelf within a month. Label the location, not the box.

Colour by category, not by unit. Colour-coded baskets, bins and handle strips let someone find the right group of supplies from across the room before they read a single label. Bin colours are usually specified one colour per unit, so the colour scheme has to be decided before the order, not after.

Two locations per fast mover. Pick from the front location, restock from the back one, and the empty front location is the reorder signal. That is a par-level system with no software in it, and it is what most departments should do before they buy any.

Clinician lifting a blue tote out of a multi-tote mobile cart

If your materials management team runs barcode or RFID location labels, mobile units are compatible with that in the boring sense: the label goes on the location. We do not supply the tracking system, and we do not make claims about what it will do for your counts — we make sure every location on the unit can carry a label and be reached without moving something else first.

Configuration and specification guidance

1Measure the tallest thing you storeShelf pitch comes from your tallest item, and pitch decides how many shelves fit in the height available.
2Choose depth honestly24 in holds more per square foot than 18 in, but only if the back is reachable. Deep plus flat shelves means baskets or bins.
3Check the door and the routeA unit that will not fit through the door, round the corner or into the lift is a delivery problem, not a design detail.
4Decide what moves and what staysMobile everything is rarely right. Fast movers static at the front, bulk and slow movers mobile behind.
5Match finish to the roomDry, humid, wet, cooler or freezer. Finish also sets the warranty terms, which we confirm on the quote.
6Specify brakes and bumpersBraked casters on any unit that gets loaded while standing still, and bumpers wherever a unit meets a painted wall or a door frame.

Loading a unit that moves

  • Heaviest items on the lowest shelves, always — a top-heavy unit on casters is the main safety issue with mobile storage
  • Load evenly across the shelf: published capacities are stated as evenly distributed maximums, not point loads
  • Brakes on before anyone loads or picks from a parked unit
  • Leave the top shelf reachable without a step, or accept that it will be used for storage nobody rotates
  • Keep the travel path clear of floor drains, thresholds and cable covers
  • Re-check bumpers and casters as part of routine maintenance, not after damage

Covers, enclosures and controlled stock

Two problems come up once a unit is rolling. Dust and handling on open wire, which a fitted cover answers, and items that need to be shut away, which needs a mesh-panelled or enclosed unit rather than open shelving. Where the requirement is genuinely locked storage rather than a closed door, look at medical storage cabinets instead.

We do not make claims about what a cover or an enclosure does to the contents inside it. What we can say is that it keeps dust off, keeps hands out, and makes the unit easier to move through a corridor without losing the top layer.

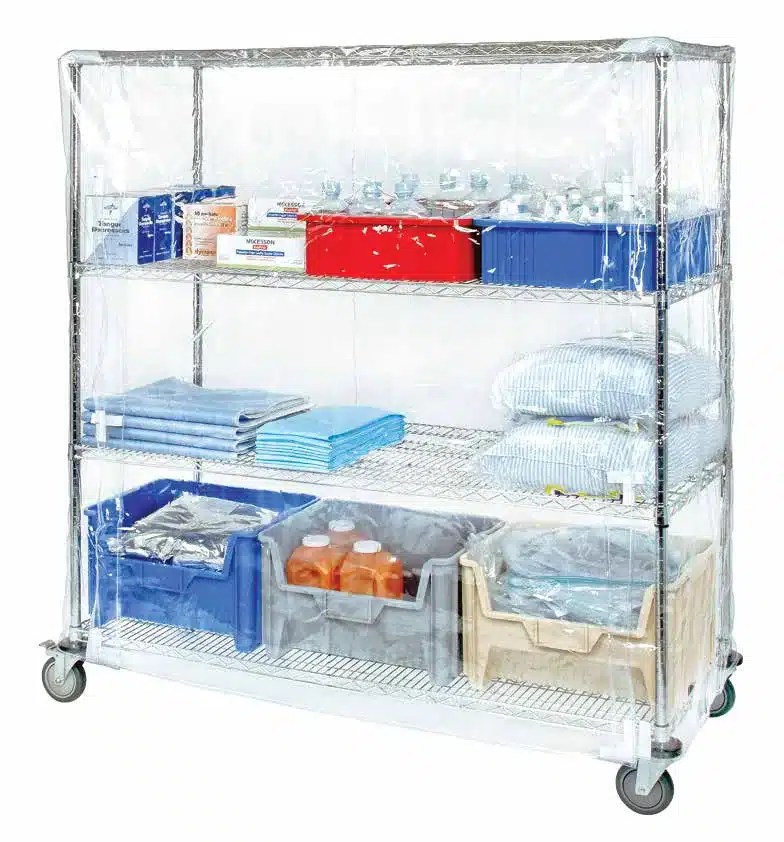

Mobile wire shelving unit fitted with a clear zip cover over stored supplies

Where the room is part of a wider project, our design and planning support covers the layout drawing alongside the equipment specification.

Where hospital mobile shelving is used

Mobile wire unit with large yellow hopper bins and shelved suppliesCentral and bulk supplyBin units and mobile shelving behind a static pick face. See central supply storage.
Mobile wire unit with folded linen and blankets on each shelfLinen and PPE holdingCompressible bulk, where depth and shelf pitch matter more than track.
Mobile cart holding three large blue totes of packaged suppliesClean storage and case cart areasPacks and drapes that should not be stacked. See sterile processing storage.
Shelving run filled with blue and yellow hopper bins of clinical suppliesFloor and departmental stock roomsSmall rooms where one rolled-out unit replaces a permanent aisle.

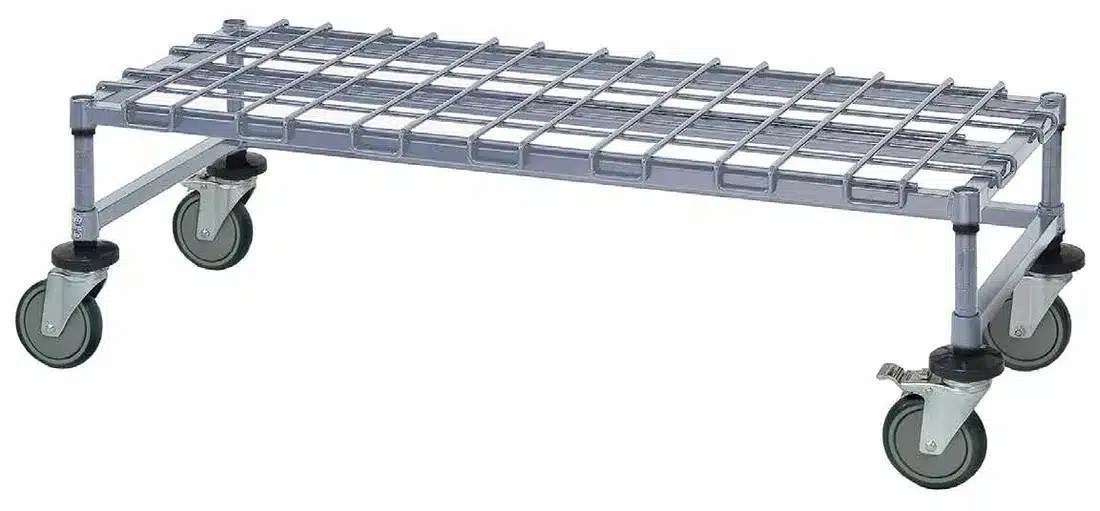

Low mobile wire platform on casters for keeping bulky items off the floorHousekeeping and equipment roomsLong-handled equipment and bulky kit that never fits a flat shelf.
Open wire basket accessory that mounts onto a shelving postPoint-of-use and procedure areasBaskets and bins at the bench, restocked from the store room rather than picked from it.

Laboratories are a different problem: loads, benches and sample storage do not behave like clinical stock. That is covered on mobile shelving for laboratories, and medical lab carts covers the rolling version. This page stays with hospital and clinical store rooms.

Plan the room before you buy the units

The Healthcare Storage Design Center holds our planning tools, including the High-Density Storage Calculator: enter the room and it estimates how many units fit and what they hold against your current layout. Outputs are planning estimates; we field-verify dimensions before anything is ordered.

Resources

Manufacturer literature for the mobile wire, basket and polymer units on this page comes with the quote on request.

Hospital mobile shelving FAQs

How much weight will a mobile shelving unit hold?
The manufacturer publishes up to 1,200 lb per unit on a caster kit and up to 1,500 lb per unit on sliding floor track, both as evenly distributed maximums, with individual shelf capacities depending on the shelving family and shelf type. We confirm the figures for your build on the quote rather than quoting a headline number.
What sizes do mobile units come in?
The published mobile wire range runs 18 in and 24 in deep, 36 to 60 in long, and stands around 80 in tall overall on casters in five- and six-shelf builds. Basket units use 74 in posts with four or five pull-out baskets. Other sizes exist; the constraint is usually your door and lift, not the catalogue.
Can any shelving unit be made mobile?
No. A standalone unit generally can, but the manufacturer notes that shelving assembled with add-on kits sharing a middle set of posts cannot be made mobile. We check the configuration before quoting so nobody discovers this on the loading dock.
Is mobile shelving stable enough for a busy corridor?
With braked casters, bumpers, even loading and the heaviest items on the lowest shelves, yes. Top-heavy loading is the real risk with any unit that rolls, and it is a loading discipline rather than a product problem. We specify brakes and bumpers on units that get picked while parked.
Should we use baskets or flat shelves?
Flat shelves for cartons and boxed stock; pull-out baskets wherever the unit is deep and picked by hand, because nobody reaches the back of a 24 in shelf. Most rooms end up with both in the same unit.
Do you supply the inventory tracking system as well?
No. We make sure every location can carry a label and be reached without moving something else, and we work alongside whatever barcode or RFID system your materials management team already uses. We make no claims about what it does to your counts.
How is this different from your laboratory mobile shelving page?
Different intent and different loads. This page is hospital and clinical store room storage. Sample, reagent and equipment storage on a lab bench is covered on our laboratory mobile shelving page, which we keep separate on purpose.

Tell us the room and we will tell you what fits

Send dimensions, doors and what you store. You get a layout, a unit list and a quote, plus delivery and installation coordinated by us.
