Welded Steel Laboratory Table With a Phenolic Resin Work Surface: Nelson Laboratories, Salt Lake City, Utah
Nelson Laboratories needed another fixed work position for its Salt Lake City testing facility, built to bench height and finished in a surface that stands up to laboratory chemicals and daily cleaning. Labs USA supplied a welded steel table assembly with a one piece phenolic resin top and protective leg boots, working with our partner Fenco Solutions.
The Situation
Nelson Laboratories runs testing and sterility assurance work from its Salt Lake City, Utah facility. Laboratories like this add and move equipment constantly as test methods and client volumes change, and every instrument eventually needs somewhere solid to live. A rolling cart will hold something for a week, not a heavy instrument at a fixed working height in a room that gets wiped down with disinfectants.
This was a repeat order. Labs USA had already built this customer a custom welded equipment table to raise autoclaves off the floor, so the starting point was a specification the laboratory already trusted. Two constraints shaped it. The first was height: a table that is off from the bench beside it creates a step in the work surface, so the finished height had to be confirmed against the room before fabrication. The second was timing, because the laboratory asked to be told when the table was ready so delivery could be scheduled around lab operations.
The Solution
Labs USA supplied a welded steel laboratory table assembly with a one inch thick phenolic resin countertop in black and black polyethylene boots on the legs, quoted and built to a confirmed working height that matched the existing benches in the room. The lead time quoted was approximately eight weeks from release, and delivery timing was coordinated with the laboratory before the table shipped.
A welded table assembly arrives as one rigid piece. There are no bolted joints to work loose, which is what eventually makes a knock down frame rock under an instrument. The polyethylene leg boots keep the steel out of standing liquid when the floor is mopped and stop the leg from scarring a sealed or resin floor if the table is repositioned.
The work surface is phenolic resin, one inch thick, supplied in black. Phenolic resin is solid material all the way through rather than a decorative layer over a substrate, so moisture, common laboratory reagents and repeated disinfection do not swell or lift an edge. In a laboratory that cleans surfaces between procedures, that property decides whether the table still looks serviceable in year eight.
Because the welded assembly and the top were quoted together as one laboratory table specification, the finished height, the top overhang and the surface all came from the same drawing. The required height was carried explicitly on the order, so the fabricator built to the room rather than to a standard leg length, the same approach used when a table has to align with existing laboratory casework.
Features
Advantage
The advantage here is that a fixed work position is treated as laboratory equipment rather than as furniture. Equipment gets a defined working height, a surface chosen for the chemistry in the room and a frame rated for a real load. Laboratories that buy furniture instead usually buy it twice.
The second advantage is continuity. This customer had already received a welded equipment table from Labs USA, so the second order followed the same construction approach and surface material rather than adding another mismatched work position with a different height and cleaning rule. It is also why the details usually dropped from a quick quote, leg boots, top overhang and confirmed height, were on the order.
Benefits
- A permanent work position at the same height as the surrounding benches
- A surface that tolerates laboratory chemicals and frequent disinfection
- A welded frame that stays rigid under instrument loads
- Legs protected from mop water and a floor protected from the legs
- Delivery timed with the laboratory
- A specification consistent with equipment already in the facility

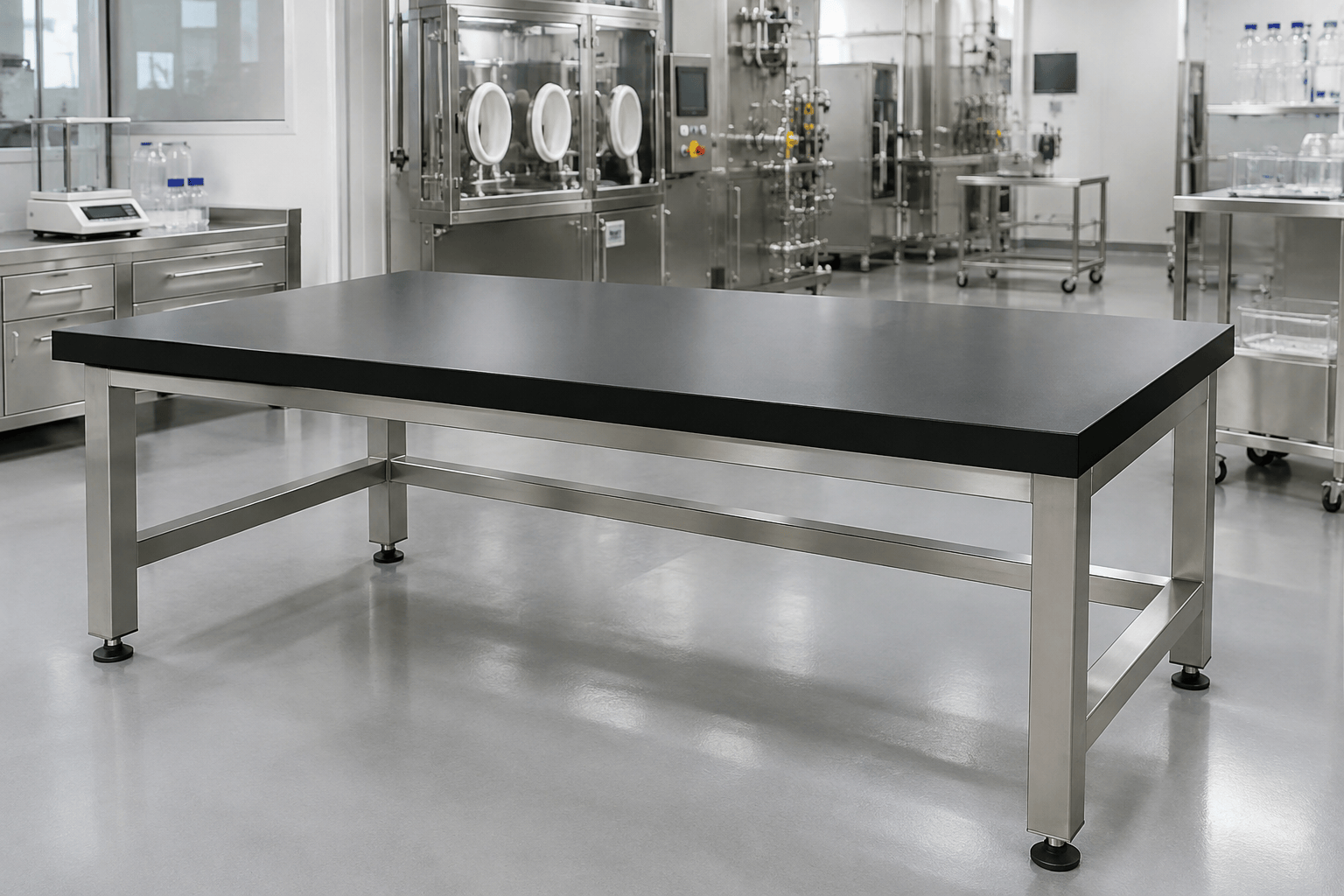

One inch phenolic resin work surface. The material is solid through its thickness, so cleaning and reagent contact do not lift an edge the way they do on laminate over a core. Representative photo.
Return on Investment
The first return is service life. Work surfaces fail before frames do, and they fail at edges and seams. A solid phenolic top on a welded frame removes both paths, so the table outlasts the instrument it was bought for.
The second is avoided rework. Confirming the finished height before fabrication is the cheapest step in the project and finding a mismatch after delivery is the most expensive.
Project Process
Define the Work Position
Identify the load and the cleaning routine before choosing a material.
Confirm the Height
Measure against the existing benches and put the height on the order.
Specify the Surface
Select phenolic thickness and finish for the chemistry in the room.
Protect the Details
Add leg boots and set the top overhang for floor cleaning and daily use.
Release and Track
Release to fabrication and track the build to the quoted lead time.
Coordinate Delivery
Confirm readiness with the laboratory and schedule delivery around operations.
Laboratory Tables for Salt Lake City and Utah
The Salt Lake Valley carries a dense cluster of testing, medical device, diagnostics and pharmaceutical laboratories, from the South Salt Lake industrial corridors out to Lehi and the Point of the Mountain. Most of that work happens in existing buildings, where a new work position has to match bench heights, floor finishes and cleaning protocols set years ago.
Labs USA is based in Salt Lake City, so a Utah table project is a site visit rather than a freight gamble. Heights can be verified in the room, delivery can be scheduled around a test schedule, and a follow up order can reuse the same specification. We supply laboratory tables throughout Utah along with laboratory tables and workstations and laboratory casework for testing labs, universities, clinics and manufacturers across the state. To specify a welded laboratory table or a phenolic work surface in Salt Lake City, Ogden, Provo or anywhere else in Utah, call (801) 855-8560.
Shop Laboratory Workbenches Online
Related in-stock work surfaces from our online store. These modular workbench kits are not equivalent to the welded steel laboratory table with a phenolic resin top supplied on this project. Request a quote for welded lab tables and phenolic work surfaces.
Frequently Asked Questions
Why choose a welded laboratory table instead of a bolted frame?
A welded assembly is one rigid piece, so no joints work loose under equipment loads. Bolted frames ship cheaper but usually need retightening and eventually develop movement.
What makes phenolic resin a good laboratory work surface?
It is solid material through its full thickness rather than a thin face over a core, so reagents, moisture and frequent disinfection do not lift an edge. It is also lighter and less brittle than stone or epoxy resin tops.
Why confirm the table height before the table is built?
Laboratory benches are not all the same height, and a work position that does not match the run beside it creates a step in the working surface. Confirming it before fabrication avoids modification or return freight after delivery.
What do the leg boots on a laboratory table do?
They cover the bottom of each leg so the steel does not sit in mop water, and they keep the leg from marking a sealed resin or epoxy floor if the table is moved.
How long does a custom welded laboratory table take?
On this project the quoted lead time was approximately eight weeks, starting once the specification, approvals and purchase order were all in place.
Can a laboratory reorder the same table specification later?
Yes. This order followed earlier welded table work for the same facility, so the construction approach and surface material were already proven in that laboratory.
Need a laboratory table built to your bench height?
Labs USA specifies and supplies welded laboratory tables, phenolic and epoxy work surfaces, casework and workstations for testing laboratories across Utah. Tell us the equipment and the room, and we will build to it.
