Heavy-Duty Lab Tables for Mining Assay and Sample Prep Labs in Utah
Crushers, pulverizers, hot trays and fine dust are hard on lab furniture. Labs USA supplies welded steel lab tables, balance tables and chemical resistant tables for Utah mining, assay and geology labs.
Why Utah Assay Labs Need Heavy-Duty Tables
Mining is still one of Utah’s biggest industries. The Utah Geological Survey reports that the state’s mining industry (metals, industrial minerals, uranium and coal) accounted for $4.5 billion, or 47 percent, of all extractive resource production in 2024. Base metals such as copper, molybdenum, beryllium and iron contributed $1.9 billion, and gold and silver added nearly $270 million (UGS Circular 139). Every one of those operations depends on assay results, and every assay starts with a sample on a bench.

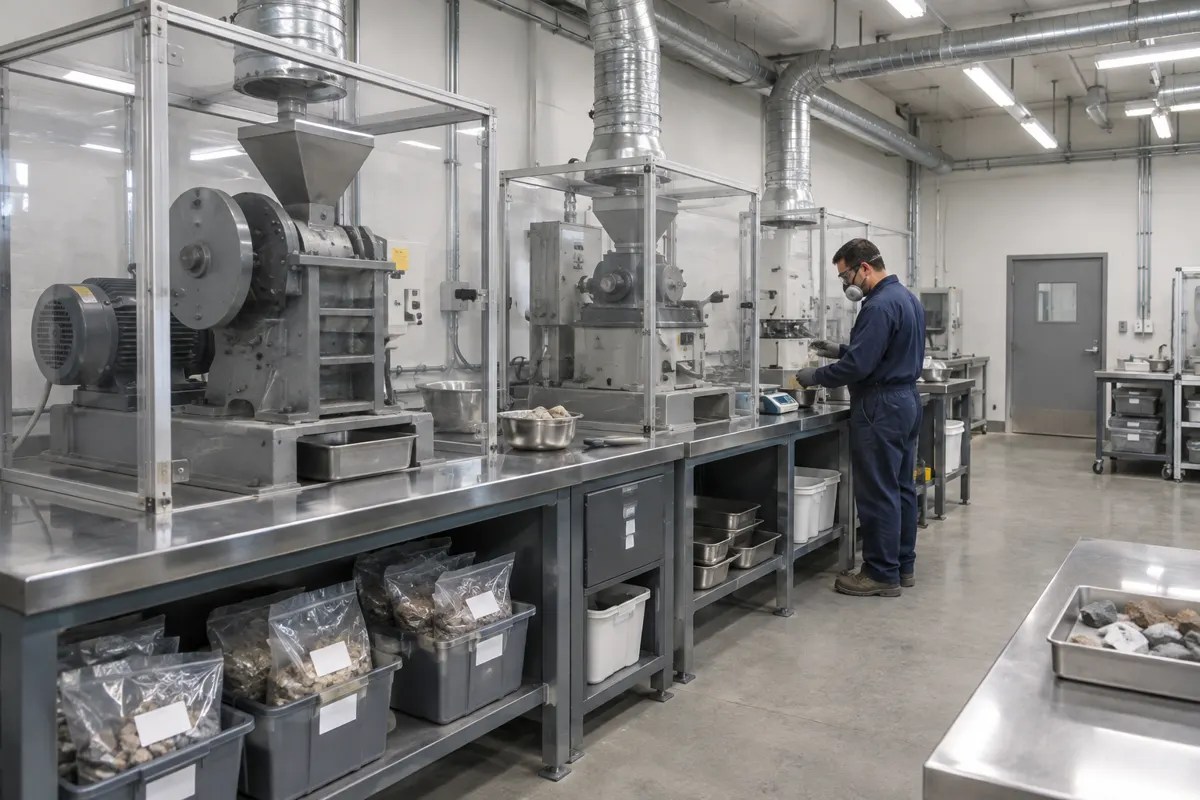

Assay and sample prep labs are hard on furniture. Rock samples are heavy, crushers and pulverizers vibrate, drying ovens and furnaces give off heat, and fine dust settles on every surface. NIOSH studies of mine assay labs found workers could be exposed to lead, crystalline silica, respirable dust, mercury and arsenic (NIOSH). The right heavy-duty lab tables will not solve those hazards alone, but the wrong ones make them worse.
Assay Lab Stations and What Each Table Carries
Most assay labs move each sample through the same stations. Each station puts a different load on the table under it.
Choosing Tables for Prep, Weighing and Wet Chemistry
Welded frames for crushers and heavy trays. A fully welded steel table does not rack or loosen under vibration the way a bolted frame can. Heavy square tube legs, leveling feet and a thick top keep a benchtop crusher or a full tray of samples steady. Our welded steel lab table for Nelson Laboratories in Salt Lake City shows the kind of build quality we supply in Utah.
Pick the top for the station. Stainless steel suits drying, prep and wipe-down areas. Phenolic and epoxy resin suit wet chemistry. Our laboratory work surfaces guide compares them, and chemical resistant lab tables cover the acid side of the lab.
Weighing needs its own table. Fire assay results come down to a very small bead weighed on a very sensitive balance. Vibration from crushers down the hall or foot traffic can make the reading drift. An anti-vibration balance table with a heavy isolated top keeps the balance steady. Put the weighing room as far from the prep area as your floor plan allows.
Mobile tables for flexible stations. Some labs add mobile lab tables for sample staging or batch sorting, so the space can change as the sample load changes.
The wet lab side. After prep, many samples go to acid digestion and instrument analysis. That area looks more like a standard chemistry lab, with fume hoods, chemical resistant tables and laboratory casework for reagents and glassware. Store acids and flammables in proper safety cabinets, not under a prep table.
Designing Tables Around Dust and Silica Control
In an assay lab, tables have to work with the dust control plan, not against it. OSHA’s general industry silica standard limits respirable crystalline silica to 50 micrograms per cubic meter as an 8-hour average. It also bars dry sweeping and compressed-air cleaning of surfaces where that could raise exposure, unless the dust is captured or no other method is feasible (29 CFR 1910.1053). In 2024, MSHA lowered the silica limit for miners to the same 50 microgram level (MSHA). Your safety team decides which rule applies to your lab.
- Leave clear space around crushers and pulverizers for the ventilated enclosure your engineer specifies
- Choose smooth, sealed tops that can be wet-wiped or HEPA-vacuumed instead of blown off
- Keep the weighing room and wet chemistry area separate from dusty prep work
- Use a fume hood for acid digestion, and a powder weighing hood where fine powders are handled
- Plan table height and reach so technicians are not leaning over running equipment
Labs USA supplies the tables, casework and fume hoods. Crusher enclosures, furnace hoods and dust collectors are engineered systems, so we coordinate with your ventilation contractor rather than size them ourselves. For lighter bench tasks, a powder weighing fume hood or an exhaust snorkel can capture fume at the source, but neither replaces an engineered enclosure on a pulverizer.
What to Know Before You Request a Quote
A good quote starts with the stations, not the catalog. A sketch of the lab and a list of equipment per station is enough to start.
- Which stations you need: receiving, drying, crushing, weighing, wet chemistry
- The weight of the heaviest benchtop equipment on each table
- Which tables sit near ovens or furnaces and need heat-tolerant tops
- Where ventilated enclosures, ducts and dust collectors will go
- The chemicals used in digestion and cleaning, from their safety data sheets
- Your daily sample volume and whether it is expected to grow
- Any safety, MSHA or OSHA requirements your team has to sign off on
How Labs USA Works With Utah Labs
Station Review
We review each station, its equipment and its loads.
Table Selection
We match frame, top and size to each station.
Coordination
We work around your ventilation and utility plans.
Delivery
Tables ship to your Utah site, with installation available.
Serving Mining and Geology Labs Across Utah
Labs USA is based in Utah and supplies lab tables to mining, geology and materials testing labs statewide, from the Salt Lake Valley and Tooele County to Utah County, Juab County and Beaver County. We also serve commercial testing labs and university geology departments.
For a related Utah project, see our material testing laboratory furniture in Utah, or browse industrial testing lab furniture. For every Utah table option in one place, visit Laboratory Tables in Utah, or see the full range of laboratory tables and workstations.
Call (801) 855-8560 to talk with our Utah team.
Shop Related Heavy-Duty Workbenches and Storage
Related products available online now: a heavy-duty steel workbench kit and an all-welded storage cabinet for prep-area tools. These are not equivalent to the custom welded lab tables and balance tables described above, which are quoted to your stations. Call (801) 855-8560 for a table quote.
Frequently Asked Questions
What kind of lab table holds a benchtop crusher or pulverizer?
A fully welded steel table with heavy legs, leveling feet and a thick top. Welded frames do not loosen under vibration the way bolted frames can. Tell us the equipment weight so we can size the table.
Which work surface is best for sample prep?
Stainless steel is a common choice for drying and prep areas because it handles heat and wipes clean. Phenolic or epoxy resin is better for the acid side of the lab.
Do assay balances need a special table?
Yes. Sensitive balances need an anti-vibration balance table, ideally in a room away from crushers and foot traffic.
Do you supply dust collectors or crusher enclosures?
No. Those are engineered ventilation systems. We supply the tables, casework and fume hoods, and coordinate with your ventilation contractor.
How should tables be cleaned in a silica-dust area?
Wet wiping or HEPA vacuuming. OSHA’s silica standard restricts dry sweeping and compressed-air cleaning where they could raise exposure. Your safety team sets the procedure.
Do you serve mine sites outside the Wasatch Front?
Yes. Labs USA ships throughout Utah, including Tooele, Juab, Beaver and other rural counties. Installation is available.
Outfitting an assay or sample prep lab in Utah?
Send us a sketch of the lab and the equipment at each station. We will recommend frames, tops and sizes for every table.
