ESD Safe Fume Extraction Arms for Utah Aerospace and Electronics Labs

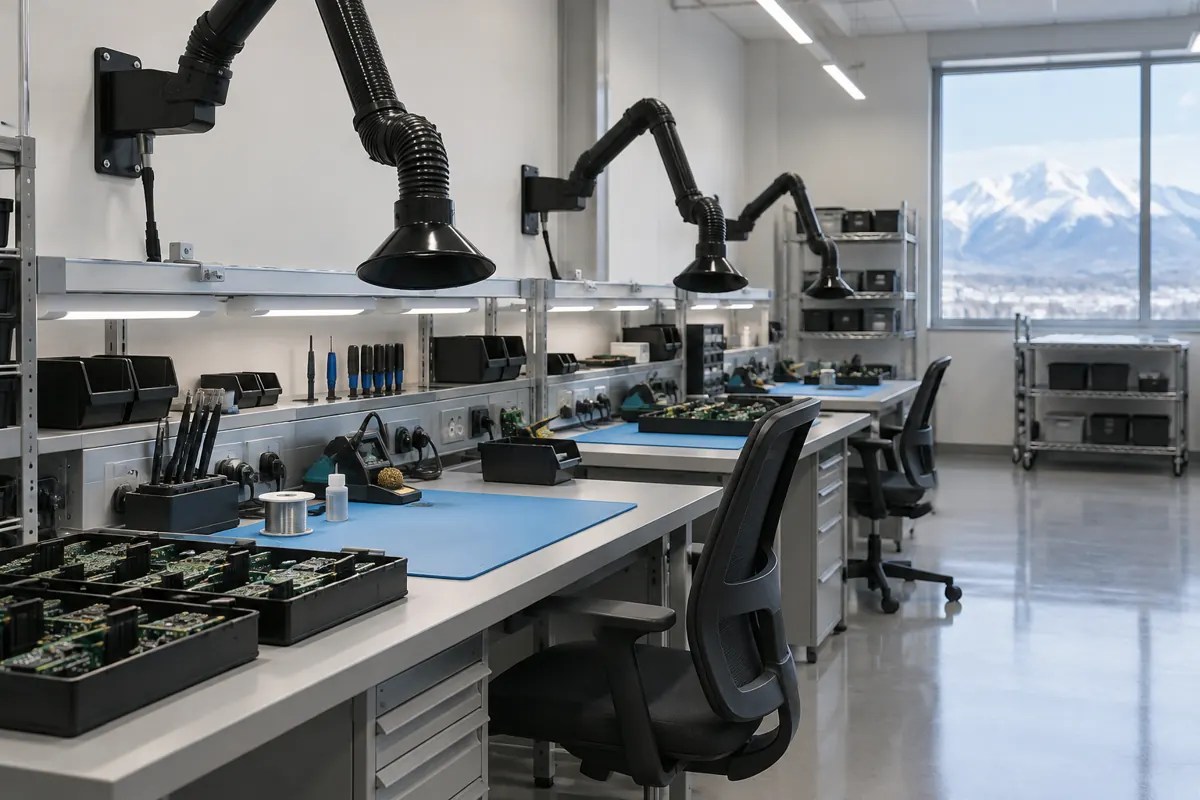

Soldering, rework, adhesives and composite repair all create fume at the bench. Labs USA supplies ESD safe and chemical resistant exhaust snorkels that capture it at the source for Utah aerospace, defense and electronics labs.
Why Utah Aerospace and Electronics Benches Need Source Capture
Utah has one of the most concentrated aerospace and defense economies in the country. The Governor’s Office of Economic Opportunity reports that, as of 2020, the state’s aerospace industry counted 944 establishments and 31,390 employees, anchored by Hill Air Force Base and built on composites manufacturing, software and control systems, sophisticated testing, and repair and maintenance (Utah GOEO). Much of that work happens at a bench: soldering and reworking circuit boards, bonding and potting assemblies, and repairing avionics.
Those benches produce fume that should be captured at the source. The UK Health and Safety Executive calls rosin based solder flux fume a common cause of occupational asthma, mostly affecting workers in electronics and assembly (HSE INDG249). The same benches also sit inside an electrostatic discharge (ESD) control program. The U.S. Department of Defense moved from MIL-STD-1686C to ANSI/ESD S20.20 for static control (EOS/ESD Association), so anything you add to an ESD protected bench, including an exhaust snorkel, has to fit that program.
Bench Tasks That Create Fume
Most Utah aerospace and electronics labs run a mix of tasks at the same benches. Each one creates a different kind of fume, and each one changes where the extraction arm should sit.
Choosing the Right Extraction Arm for Each Bench
An ESD version keeps the arm inside your static control program. A standard plastic hood and arm can hold a charge right next to sensitive parts. Labs USA offers an ESD exhaust snorkel alongside the original and chemical resistant models, and our chemical resistant vs ESD vs original snorkel comparison explains when each fits. Tie the arm into your bench grounding the same way as the rest of the workstation, and have your ESD coordinator verify it as part of the program.
Position matters more than power. HSE guidance notes that a moveable capturing hood reliably captures fume only within about one to two hood diameters of the hood face, and that it should be moved whenever the work moves (HSE INDG249). Articulated arms make that easy for the technician.
Composite and adhesive work needs reach. Bonding a panel or repairing a composite part covers more area than a circuit board. A ceiling mounted extraction arm keeps the table clear and swings over the full work area, while a wall mounted arm suits benches along a wall. Check the mounting and clearance guide for reach, height and bracket options.
Where cleaners or resin systems are aggressive, the chemical resistant snorkel is often the better material choice. Where parts are static sensitive, the ESD model comes first. Some labs use both, one type per bench.
Repair and test benches in avionics shops often combine soldering, hot air rework and inspection under a microscope in one spot. An articulated arm can park out of the way during inspection and swing back when heat work starts. Pair it with ESD safe chairs and laboratory workstations sized for the equipment on the bench.
Snorkels Compared With Other Bench Options
HSE describes several types of local exhaust for soldering. Tip extraction on the iron works well for widely spaced joints but its narrow tubes clog with sticky residue. Downdraft tables suit irregular parts but need high airflow. Small benchtop fan and filter units are inexpensive, but HSE found their coarse carbon filters remove only a small part of the harmful fume and they return air to the room (HSE INDG249). A ducted extraction arm removes the fume from the room and serves soldering, adhesives and cleaning at one bench.
What to Know Before You Request a Quote
A good extraction quote starts with the benches, not the catalog. Collect these answers before you call. A photo of each bench and a list of the tasks is enough to start.
- Which tasks happen at each bench: soldering, hot air rework, coating, adhesives, composites or cleaning
- Which benches are inside your ESD protected area and how they are grounded
- Bench length, wall construction and ceiling height for wall or ceiling mounting
- Whether you have building exhaust available or need a new fan and duct run
- The cleaners, fluxes and resins in use, from their safety data sheets
- How many arms can share one fan, and whether benches run at the same time
- Any facility or program requirements your quality or safety team must sign off on
Use our exhaust snorkel sizing guide to estimate airflow per arm.
How Labs USA Works With Utah Labs
Bench Review
We review your tasks, ESD areas and bench layout.
Arm Selection
We match arm type, length, hood and mounting to each bench.
Airflow Check
We size airflow and confirm the exhaust connection.
Delivery
Arms ship to your Utah site with the mounting hardware you need.
Serving Labs From Hill Air Force Base to Utah County
Labs USA is based in Utah and supplies exhaust snorkels to labs across the state, from Ogden, Layton, Clearfield and Roy near Hill Air Force Base to Salt Lake City, West Jordan, Lehi, Provo and Logan. We work with aerospace and defense suppliers, electronics manufacturers, repair stations and university research labs.
For a similar project outside Utah, see our ESD safe wall mounted extraction arms for an aerospace manufacturer in Alabama. Closer to home, our Brigham Young University teaching lab extraction arm shows a Utah installation, and our Salt Lake City exhaust snorkels page covers local service. For every Utah option in one place, visit Exhaust Snorkels in Utah, or browse the full exhaust snorkel range.
Call (801) 855-8560 to talk with our Utah team.
Shop Exhaust Snorkels Online
The three exhaust snorkel models discussed on this page, available in our online store. Not sure which fits your bench? Call (801) 855-8560 for help choosing arm length, hood and mounting.
Frequently Asked Questions
Do I need an ESD safe exhaust snorkel for soldering?
If the bench is inside an ESD protected area, yes. A standard plastic arm can hold a charge next to sensitive parts. An ESD model lets the arm be grounded with the rest of the workstation.
How close should the hood be to the solder joint?
Close. HSE guidance says a moveable capturing hood reliably captures fume within about one to two hood diameters of its face, so the technician should move it as the work moves.
Is a benchtop fume absorber enough?
For very occasional, low volume work it can help. HSE testing found coarse carbon filters in these units remove only a small part of the harmful fume, so ducted source capture is the stronger choice for regular soldering.
Can one extraction arm handle adhesives and composites too?
Often, yes. The arm captures vapor at the source for soldering, adhesives and cleaning. For aggressive chemicals a chemical resistant model is the better material, and large composite tables usually need a ceiling mounted arm.
Wall mounted or ceiling mounted?
Wall mounted arms suit benches along a wall. Ceiling mounted arms suit island benches and large work tables where you need reach and a clear surface.
Do you serve labs near Hill Air Force Base?
Yes. Labs USA is based in Utah and supplies exhaust snorkels statewide, including Davis and Weber counties, Salt Lake County, Utah County and Cache County.
Planning fume extraction for a Utah electronics or aerospace lab?
Send us a photo of each bench and the tasks done there. We will recommend arm type, mounting and airflow for every station.
