Matching a Third Ceiling Mounted Extraction Arm to an Existing Teaching Lab: Brigham Young University, Provo, Utah
Brigham Young University already had two ceiling mounted extraction arms in service and needed a third that matched them exactly. Labs USA supplied a four inch by one hundred six inch arm with an inline damper, a ten inch metal capture hood, a seventy inch ceiling bracket and an escutcheon plate, shipped within days of the order.
The Situation
Brigham Young University in Provo, Utah runs teaching and research laboratories at the scale of a large research institution, and its laboratory equipment decisions carry a constraint that private industry does not always share: the rooms are used by rotating groups of students, and every station needs to behave the same way as the one next to it.
This project was small in dollar terms and specific in requirement. A teaching laboratory already had two ceiling mounted extraction arms installed from an earlier order. The room needed a third station covered, and the request was not for the best arm available, it was for another one exactly like the two already there.
That distinction matters more than it sounds. In a teaching lab, a slightly different arm at the third station means a different reach envelope, a different hood, and possibly a different airflow at the capture point. Students trained at one station then behave incorrectly at another, and instructors end up teaching the equipment rather than the chemistry. Standardization is a safety property, not an aesthetic one.
The timing was also practical rather than dramatic. University laboratory work happens on an academic calendar, and equipment that has to be installed between terms cannot wait on a long build to order schedule. The order was placed in the second half of August, which is exactly the window before a fall term starts.
The Solution

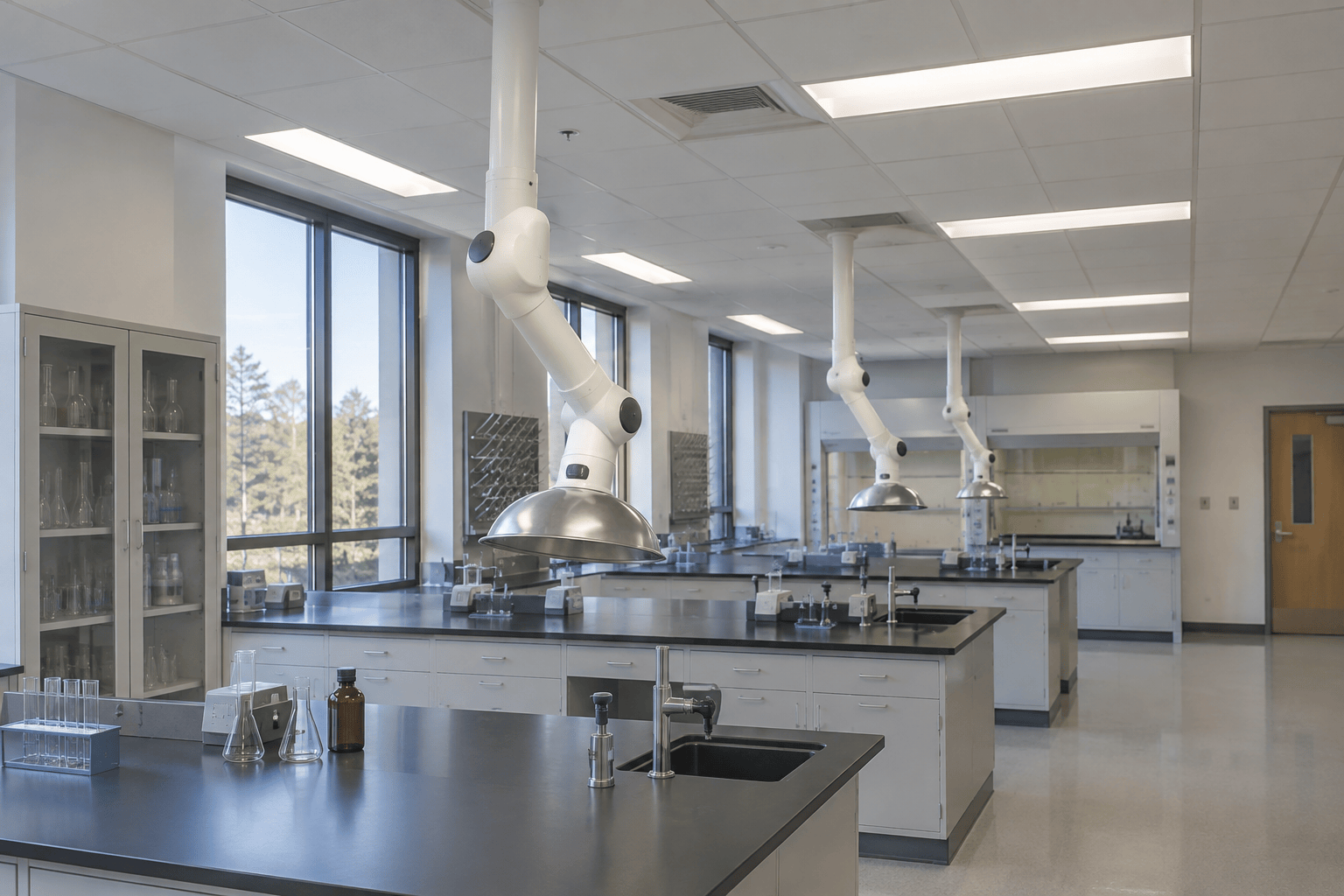

Labs USA matched the existing installation component for component: a four inch diameter by one hundred six inch extraction arm fitted with a damper, a ten inch diameter painted metal capture hood, a seventy inch by five inch ceiling bracket, and an escutcheon plate to finish the ceiling penetration. The order was written directly against the previous specification rather than re-quoted from scratch.
A four inch arm is a different tool from the three inch arms common on bench stations. The larger diameter moves substantially more air at the same duct velocity, which is what makes it appropriate for heavier vapor generation or for a capture point that sits further from the source. Paired with a one hundred six inch length, it reaches across a teaching bench without the instructor having to reposition students around it.
The inline damper is the component that makes a multi station room work. Several arms on a shared exhaust system compete for the same available airflow, and without a balancing device the station closest to the fan captures well while the far station barely pulls. A damper at each arm lets the room be balanced so every station gets the airflow it was designed for, and it lets an unused arm be closed down so it is not stealing capacity from a station in use.
A painted metal hood rather than a clear plastic dome was the right choice for this room. Metal hoods tolerate heat and incidental contact in a way that polycarbonate does not, which matters where open flame or hot work happens at a teaching bench and where the equipment is handled by many different users over a term. The trade off is visibility through the hood, which is a fair exchange in a teaching setting where the instructor is looking at the bench, not through the capture point.
The seventy inch ceiling bracket sets the arm at a working height below the structure, and the escutcheon plate closes the penetration where the bracket passes through the finished ceiling. That plate is a small part with a real function: an open ceiling penetration is an air path between the room and the plenum above it, which undermines the room’s pressure relationship and its containment. Labs USA supplies matching components across the ceiling mounted extraction arm and exhaust snorkel lines.
Features
Advantage
The value in this project is repeatability. A university that can order a third arm identical to its first two, years later, is a university whose teaching lab does not drift. Every station has the same reach, the same hood, the same damper adjustment and the same maintenance part. Instructors teach one procedure; facilities stock one spare.
That only works if someone keeps the record. Because the earlier order and its component list were on file, this order could be written directly against the previous specification instead of being re-engineered from a description of what was in the room. Re-engineering from memory is how a lab ends up with three nearly identical arms that all take different hoods.
Buying stock components rather than a custom assembly is what made the schedule possible. The order was placed in mid August and shipped within about five days, because arms, brackets, hoods and plates in standard sizes come from inventory. A room that needs to be ready for a fall term cannot absorb an eight week build, and it did not have to.
There is a control benefit too. Adding a damper equipped arm rather than another uncontrolled drop means the room’s total exhaust can still be balanced across three stations. Adding capture points to a shared system without balancing devices is how a laboratory ends up with a fan that runs at full load while the far station captures nothing.
Benefits
- A third station with identical capture behavior to the two already in service
- One reach envelope, one hood type and one spare part list across the room
- Damper control so all three arms can be balanced on the shared exhaust system
- Heat tolerant metal capture hood suited to a heavily used teaching bench
- A sealed ceiling penetration that does not compromise room pressurization
- Delivery within days rather than a built to order lead time
- Ordered against the original specification, so nothing had to be re-engineered
The inline damper lets each arm be balanced against the others on a shared exhaust system, and the escutcheon plate seals the ceiling penetration. Representative photo.
Return on Investment
For a university, the return on standardizing extraction equipment is measured in training and maintenance rather than in purchase price. Three identical arms mean one instruction sheet, one set of lab safety training slides and one procedure for checking that a station is drawing before work starts. Three different arms mean three of everything, and the version that gets taught is whichever one the instructor learned first.
Spare parts follow the same logic. A room built from one specification carries one hood, one bracket and one damper as spares. A room assembled opportunistically over several years needs a parts list per station, and the part that fails is always the one nobody stocked.
Getting stock components in days rather than weeks has a direct academic value. A capture point that is not installed before a term starts is either a station that cannot be used for the experiments that require it, or a procedure that gets moved to another room. Both cost teaching capacity that cannot be recovered later in the term.
The damper is a small line item with an operating payback. Being able to close an unused arm keeps the exhaust fan working against a sensible load and keeps the airflow where the work is happening, rather than pulling conditioned room air through idle capture points for an entire semester.
Project Process
Requirement
The teaching laboratory needed a third capture point matching the two extraction arms already installed in the room.
Specification match
Pulled the component list from the earlier order rather than re-quoting, so arm diameter, length, hood, bracket and trim matched exactly.
Component confirmation
Confirmed the four inch by one hundred six inch arm with damper, ten inch metal hood, seventy inch by five inch ceiling bracket and escutcheon plate.
Order placement
Placed the order in mid August against the academic calendar so the station could be ready for the term.
Stock shipment
Standard components shipped from inventory within about five days of the order rather than on a built to order schedule.
Installation and balancing
The arm was hung from the ceiling bracket, the penetration finished with the escutcheon plate, and the damper set so all three stations balance.
Laboratory Extraction Arms in Provo and Along the Wasatch Front
Provo and Orem sit at the south end of Utah’s Wasatch Front, a corridor that carries a heavy concentration of university teaching and research laboratories, medical device manufacturing, pharmaceutical and nutraceutical production, and analytical testing. Labs USA is based in Salt Lake City, about forty five minutes north, which makes this a local project rather than a national one.
Utah laboratories share a specific ventilation reality. The Wasatch Front experiences winter inversions that trap air in the valley, and buildings are consequently run tight to control infiltration and heating cost. In a tight building, every exhaust point is competing for a limited quantity of make up air, which is exactly why balancing devices such as inline dampers matter more here than in a leaky building in a mild climate.
University laboratories add the academic calendar. Equipment work happens between terms or during the summer, and those windows are fixed. Sourcing standard components that ship from stock is often the difference between a station being ready for a term and a procedure being deferred.
Labs USA supplies extraction arms, fume hoods, casework, laboratory tables and shelving throughout Utah, including Provo, Orem, Salt Lake City, Lehi, Ogden, Logan and St. George. Call (801) 855-8560 to match equipment already in your building, or browse the ceiling mounted extraction arm hub for arm, hood and bracket options.
Shop Exhaust Snorkels Online
Browse current catalog options for a similar extraction project. These are not a confirmed match to the existing university installation. Confirm arm model, reach, hood, mounting hardware and exhaust requirements before ordering. Displayed starting prices vary with selected options.
Frequently Asked Questions
Can a new extraction arm be matched to ones already installed?
Yes, and it is usually the right approach. If the original component list is available, the new arm can be ordered against the same arm diameter, length, hood, bracket and trim so reach and capture behave identically. That is what this project did: a third arm written against the specification of the two already in the room.
What is the inline damper for?
Balancing. Several arms on one exhaust system compete for the same airflow, and without dampers the station nearest the fan over pulls while the far station under performs. A damper at each arm lets the room be balanced, and lets an unused arm be closed so it is not consuming capacity.
Why a metal capture hood instead of a clear plastic dome?
Heat tolerance and durability. Metal handles incidental contact, hot work and open flame far better than polycarbonate, which matters in a teaching laboratory used by many different students. The trade off is that you cannot see through the hood, which is rarely important at a teaching bench.
Why is a four inch arm used instead of a three inch arm?
A four inch diameter arm moves considerably more air at the same duct velocity, so it suits heavier vapor generation or a capture point that has to sit further from the source. Three inch arms are common for light bench work; four inch arms are the choice when the source is stronger or the reach is longer.
What does the escutcheon plate do?
It closes and trims the hole where the ceiling bracket passes through a finished ceiling. Beyond appearance, an open penetration is an air path between the room and the ceiling plenum, which undermines the room’s pressure relationship and containment.
How quickly can extraction arms be delivered?
Standard diameter arms, brackets, hoods and trim plates typically ship from stock in about one to two weeks, and this order shipped in about five days. Custom lengths, finishes or special materials move onto a build schedule, so confirm availability if you are working against a fixed installation window.
