Wall Mounted Chemical Fume Extraction for a University Research Lab: Princeton University, Princeton, New Jersey

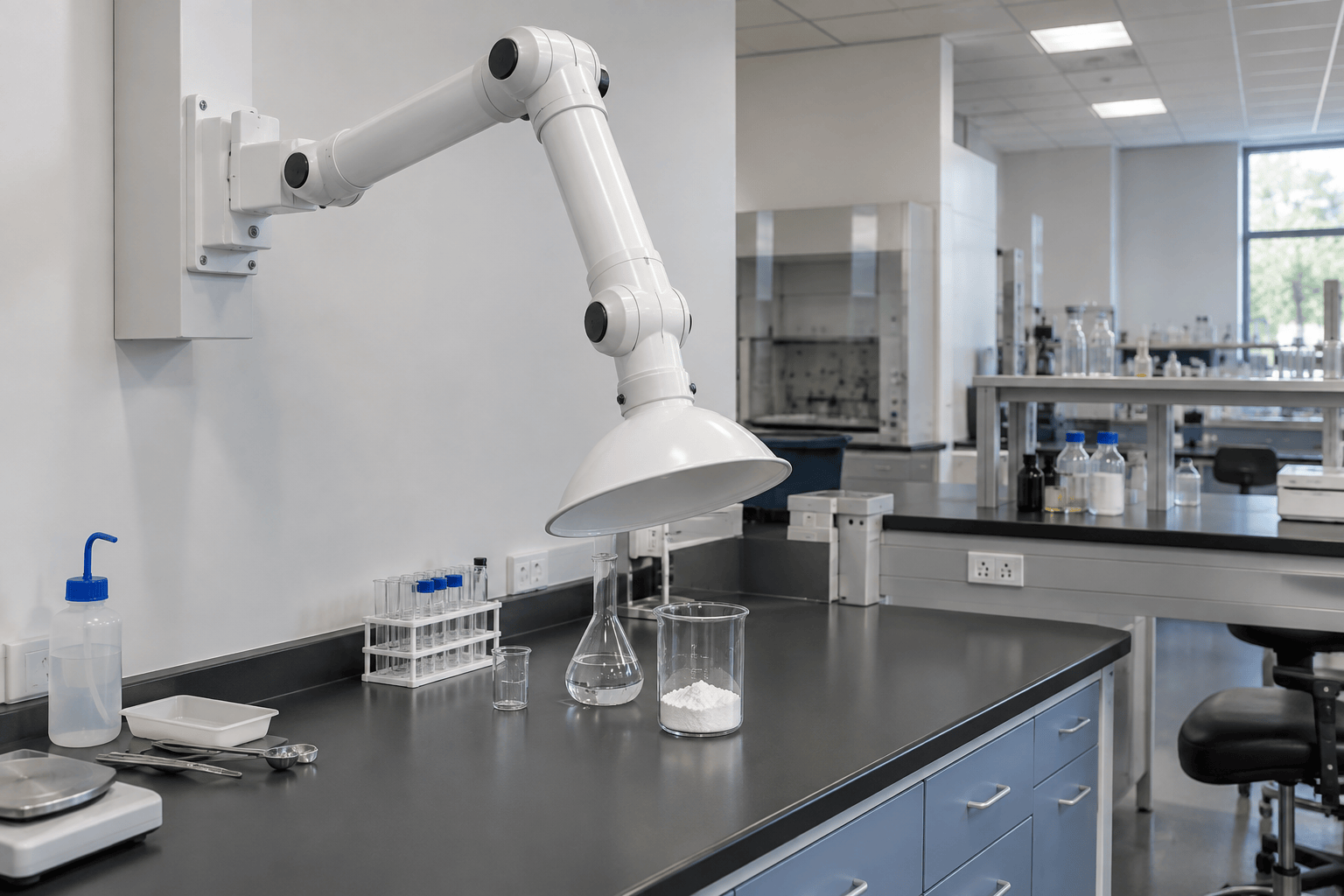

Princeton University needed source capture over a bench in a research laboratory on its engineering quadrangle. Labs USA supplied a chemical duty articulated extraction arm with a white powder coated aluminum capture hood, then a matching flat wall bracket in a second phase so the arm could be mounted where the bench actually sat.
The Situation
Princeton University runs research laboratories across its engineering quadrangle, and the work in them changes as research groups and projects change. This project came out of that pattern. A bench needed local fume capture that it did not have, and the requirement was for one station rather than for a room wide ventilation change.
A university research building makes that a specific kind of problem. The room already exists, the casework already exists, and the mechanical system was designed for whatever the room was used for when the building was fitted out. Adding a full fume hood means a hood, a duct route, fan capacity, controls and usually a shutdown. For a bench where the actual exposure is intermittent vapor from open work, a hood is the wrong scale of answer.
Source capture is the right scale, but the arm has to be matched to the chemistry. A general purpose extraction arm handles solder fume, dust and nuisance odor. Research chemistry can involve solvents and acid vapor that will attack a standard arm’s internal surfaces, hood and joints. Once an arm starts to degrade internally it is not just a maintenance item, it is a leak path along the route the vapor travels.
The second constraint was mounting, and it is the reason this project ran in two phases. Where an arm attaches decides whether it is usable. A bench against a wall wants the arm on the wall behind it, at a height that lets the hood reach the work zone without the arm folding into the operator. Ceiling mounting is the answer over an island bench, but it needs a structural route and a penetration. On this project the arm and hood were supplied first, and a flat wall bracket was added afterwards, once the mounting position at the bench was settled on site.
The Solution
Labs USA supplied a chemical duty articulated extraction arm together with a white powder coated aluminum capture hood, and in a follow on phase a white flat wall bracket to mount the assembly to the wall behind the bench.
A chemical duty arm differs from a general purpose one in the parts that the airstream touches. The internal tube surface, the joints and the hood are selected to stand up to solvent and acid vapor rather than to dust and warm fume, and the articulation is designed to hold its position without the operator supporting it. That is what makes an arm get used: it stays where the researcher puts it, and it does not become a consumable after a few months of real chemistry.
The hood is a powder coated aluminum round hood in white. Metal hoods are the right choice where the vapor being captured would craze or cloud a clear polycarbonate dome, and they take incidental heat and knocks better. Where visibility through the hood matters more than chemical exposure, a clear dome is the better pick, and both are available on the same arm.
The flat wall bracket supplied in the second phase is a small item with a large effect. It gives the arm a rigid, flat mounting face against the wall structure, and it lets the assembly be positioned by the bench instead of by whatever mounting point happens to be nearby. Splitting the order this way meant the mounting decision was made from the room rather than guessed at from a drawing, and the university was not left with a bracket that did not suit the wall.
Because the whole assembly is modular, it stays maintainable. The hood, joints and arm sections are individually replaceable, and a second arm can be added on the same specification if another station needs capture. Labs USA specifies wall mounted extraction arms, ceiling mounted arms and complete exhaust snorkel systems, along with laboratory fume hoods where an enclosure genuinely is the right answer.
Features
Advantage
The choice worth explaining on this project is source capture instead of an additional fume hood. A hood is an enclosure, and enclosures are correct where a whole procedure has to happen inside containment. Where the exposure is vapor released at a defined point on an open bench, an arm placed at that point removes it before it enters the room, and it does so while moving a fraction of the air a hood moves. In a research building where every cubic foot of exhausted air is conditioned air paid for twice, that difference is permanent.
Matching the arm’s chemical duty to the work is the other decision that pays off. A general purpose arm on research chemistry is an arm that will be replaced, and the failure is not obvious from the outside. Specifying chemical duty internals and a metal hood at the start avoids buying the same arm twice.
Running the project in two phases was practical rather than accidental. The arm and hood were ordered first, and the wall bracket followed once the mounting position at the bench was confirmed in the room. Small additions like a bracket are exactly what a phased approach handles well: the university got the correct mount for the wall it actually had, and no one had to reverse a purchase because a drawing disagreed with the bench.
The last advantage is scope. A single arm and hood on a wall bracket is a project a facilities group can execute without a shutdown, without a mechanical redesign and without a construction schedule. That is why source capture is so often the way a research group actually gets the ventilation it needs.
Benefits
- Vapor captured at the point of release rather than diluted across the room
- A far smaller exhaust volume than adding another fume hood to the building
- Chemical duty internals and a metal hood matched to research chemistry
- Installed against existing casework with no room shutdown or mechanical redesign
- Mounting position confirmed in the room before the bracket was purchased
- A modular assembly that is maintained by parts rather than replaced whole
The flat wall bracket supplied in the second phase gives the arm a rigid mounting face on the wall behind the bench, so the hood reaches the work zone from the position the researcher actually works in.
Return on Investment
The operating cost case is the clearest one. Every cubic foot per minute a laboratory exhausts is conditioned air that has to be replaced, heated in a New Jersey winter and cooled and dehumidified in summer. A source capture arm exhausts a modest targeted volume; a fume hood exhausts continuously at a much higher rate. Where an arm can do the job, the annual energy difference dwarfs the equipment price.
The capital case is almost as direct. An additional hood in an existing building brings duct routing, fan capacity, controls and construction with it. An arm on a wall bracket is equipment plus a duct connection.
The third return is durability. Specifying chemical duty internals against the chemistry actually in use means the arm is not on a replacement cycle, and because hoods, joints and sections are individually replaceable, maintenance stays incremental.
The fourth is uptime. No shutdown was needed, so the laboratory continued operating while the station gained capture. In a university research building where bench time is allocated months ahead, keeping the room in service is often the largest number in the calculation and the one that never appears on an invoice.
Project Process
Understand the chemistry
Establish what is released at the bench so arm duty and hood material can be matched to it.
Right size the answer
Compare source capture with an additional hood and choose the scale the exposure justifies.
Confirm the mounting
Check wall structure, bench height and reach so the hood covers the real work zone.
Supply the arm and hood
Deliver the chemical duty arm with the powder coated aluminum capture hood.
Add the bracket
Supply the flat wall bracket once the mounting position at the bench is settled.
Support the install
Advise on duct connection and hood positioning so the assembly is used as intended.
Source Capture Extraction for Princeton and Central New Jersey Laboratories
Central New Jersey has one of the densest concentrations of research laboratories in the country, from the university laboratories in Princeton through the pharmaceutical, specialty chemical and materials laboratories along the Route 1 corridor into Plainsboro, Hopewell, Ewing and New Brunswick. The recurring problem in all of them is the same as the one on this project: a building’s ventilation was designed for the research that was happening when it was fitted out, and the research has moved on.
Source capture is usually how that gap gets closed, because it can be added station by station without a mechanical project. Labs USA supplies extraction arms, brackets, hoods, dampers and fans for university, pharmaceutical and industrial laboratories across New Jersey, and we specify the arm to the chemistry rather than selling one arm for every application. We also recently supplied ceiling mounted arms on telescopic brackets for a contractor laboratory build out in Princeton, which shows the same product line answering a very different mounting situation.
For advice on wall mounted versus ceiling mounted capture, or on when a fume hood is genuinely required, call 801-855-8560.
Shop Exhaust Snorkels Online
Buy select items directly from our online store, or request a quote for volume, custom sizes and freight-rated orders.
Frequently Asked Questions
When is an extraction arm a better answer than another fume hood?
When the exposure is released at a defined point on an open bench rather than throughout a procedure that needs containment. An arm captures at that point while moving a fraction of the air a hood moves, and it can be added to an existing room without duct redesign or a shutdown. Work that must be fully enclosed still needs a hood.
What makes a chemical duty extraction arm different?
The parts the airstream touches. Internal tube surfaces, joints and the hood are selected to resist solvent and acid vapor instead of dust and warm fume. A general purpose arm used on research chemistry degrades internally, which is both a maintenance cost and a potential leak path.
Why choose a metal capture hood instead of a clear dome?
Powder coated aluminum tolerates vapor that would craze or cloud a clear polycarbonate dome, and it handles incidental heat and knocks better. A clear dome is preferable where the operator needs to watch the work through the hood, so the choice follows the chemistry and the task.
Should the arm be wall mounted or ceiling mounted?
Wall mounting suits benches against a wall where the wall structure can carry the bracket, and it is the simplest installation. Ceiling mounting is for island benches and open floor stations and needs a structural route and a penetration. The bench position decides it, not preference.
Can an extraction arm be added to an existing laboratory without a shutdown?
Usually yes. The arm, bracket and hood mount to existing structure and connect to a duct run, so the work is local to the station. That is the main reason source capture is how most operating research laboratories close a ventilation gap.
Can more arms be added later to match this one?
Yes. Because the assembly is a standard modular product, additional arms, brackets and hoods can be ordered against the same specification so later stations match the first, and spare hoods and joints fit both.
