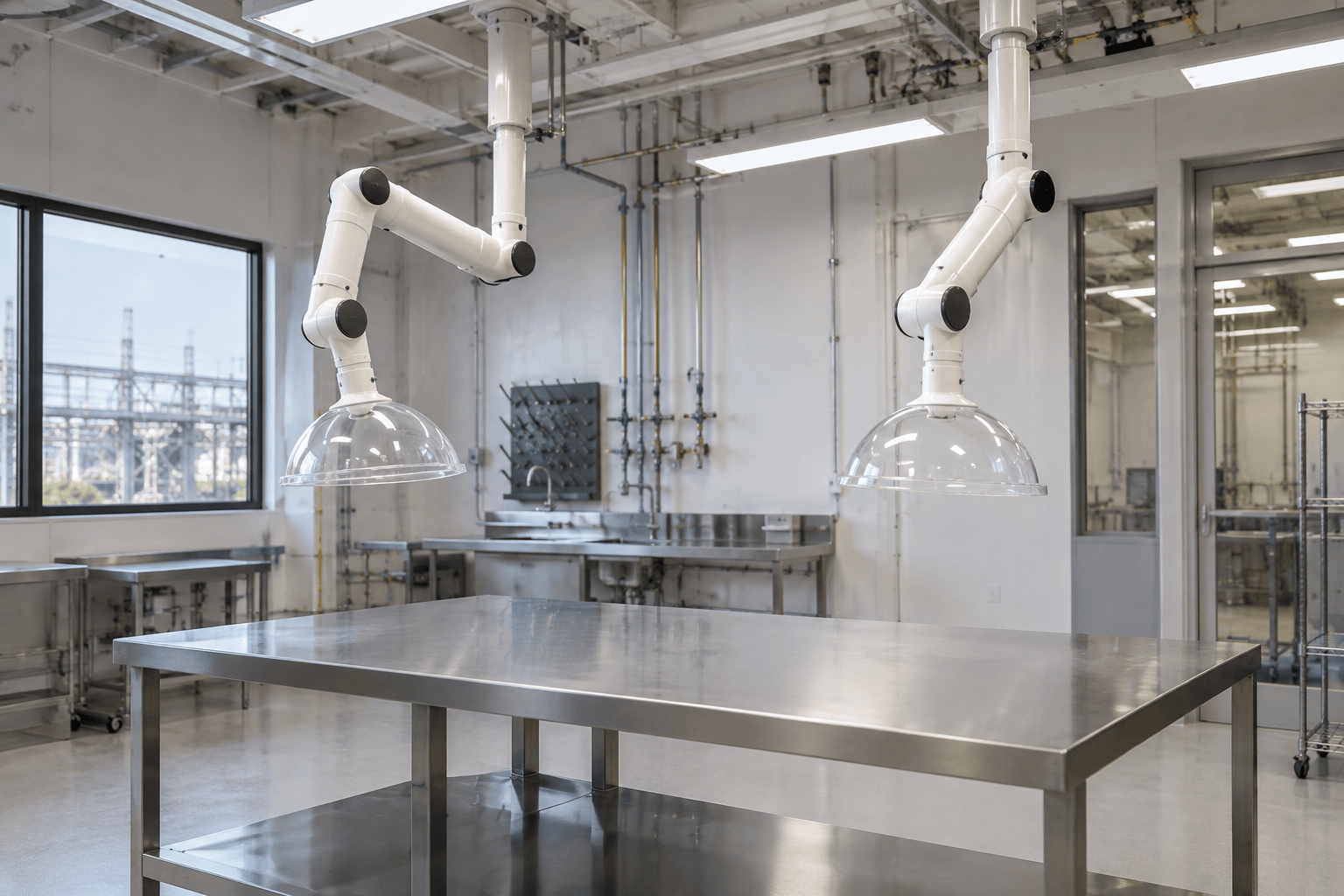

Two Ceiling Extraction Arms on Telescopic Adjustable Brackets for a Contractor Build Out: Princeton, New Jersey
A contractor building out a laboratory area in Princeton, New Jersey needed fume capture over a bench before the ceiling height was finalized. Labs USA supplied two three inch extraction arms on forty inch telescopic ceiling brackets with clear dome capture hoods, delivered in about a week.
The Situation
This project came through a contractor, Apex USA, building out a laboratory area in Princeton, New Jersey. Contractor purchased laboratory equipment is a different buying situation from a lab manager buying for a room already in use, and the difference shapes the specification.
The contractor is working from a drawing set, on a construction schedule, in a space that is not finished yet. The bench may not be installed, the ceiling grid may not be in, and the exact height from the finished floor to the point where the arm has to hang is frequently not settled at the moment the equipment has to be ordered. Order too early and the dimension is a guess; order too late and the trade schedule slips.
Fume capture also tends to arrive late in the specification process. Casework, sinks and mechanical systems are drawn and bid first, and the requirement for local exhaust at a bench often surfaces once someone reviews what will actually be handled at that station. By then the ceiling contractor may be days from closing the grid.
The scope itself moved during quoting, which is common on contractor projects. The requirement was initially discussed as a single arm and the quote was revised to two arms before the order was placed, so the pair was priced and shipped as a matched set rather than a second arm being added later at a different specification.
The Solution
Labs USA supplied two three inch diameter fume extractor arms, each mounted on a forty inch by four inch telescopic ceiling bracket with a four inch top duct connection, and each fitted with a fourteen inch clear dome capture hood with a hood stub, plus the connectors to tie arm and bracket together.
A telescopic bracket is the answer to the dimension nobody has yet. Instead of ordering a fixed drop length that has to be correct to the inch against a ceiling that is not built, the bracket adjusts within its range on site. The installer sets the hood at the working height the bench actually needs after the floor, ceiling and casework are in, which removes the single most common source of rework on ceiling mounted extraction.
Three inch arms were the correct size for this application. A three inch diameter arm is the standard choice for bench scale work, moving enough air to capture vapors, fumes and light aerosols at the source without over exhausting a conditioned room. Larger four inch arms exist for heavier generation and longer reach, but specifying up when the work is bench scale means a bigger fan, more make up air, and higher operating cost for capture that was already adequate.
The clear dome hoods were chosen for visibility. A fourteen inch polycarbonate dome sits over the work without hiding it, so the operator can see what is happening under the capture point and position the hood by eye where the vapor is actually being generated. In a room where the work at the bench is still being defined, a hood the user can see through is more likely to be used correctly than one that blocks the view.
The four inch top connection on each bracket is the detail that keeps the mechanical trade honest. It gives the contractor a defined duct interface to build to, so the ductwork above the ceiling can be sized and routed while the arms are still in transit, rather than being improvised around whatever fitting shows up. Labs USA supplies matched arms, brackets, hoods and connectors across the exhaust snorkel and ceiling mounted extraction lines.
Features
Advantage
The useful lesson from this project is about ordering into an unfinished space. A fixed length ceiling drop has to be right the first time, and on a construction site the finished floor to grid dimension is one of the last things to settle. Telescopic brackets convert that hard dimension into a range, which means the equipment can be ordered on the trade schedule instead of waiting for the ceiling.
Revising the quote from one arm to two before the order shipped also matters more than it appears. Two arms bought together are identical: same reach, same hood, same bracket range, same spare parts, and one delivery to receive on a busy site. An arm added three weeks later is a second freight bill, a second receiving event, and a real chance of a different revision arriving.
Sizing the arms at three inches rather than four was a restraint decision. Oversized capture looks conservative on paper, but it drives fan selection, make up air and operating cost for the life of the room. Matching the arm to bench scale work keeps the mechanical system proportionate to what is actually happening under the hood.
For a contractor, the component completeness is the quiet advantage. Arms, brackets, hoods, stubs and connectors arriving as a coordinated set means the installer is not sourcing an adapter at a supply house on the day of installation. Every mismatched fitting on a construction site is a delay measured in days, not minutes.
Benefits
- Hood height set on site after the ceiling and casework were finished
- Equipment ordered on the construction schedule rather than waiting for a final dimension
- Two identical stations from one order and one delivery
- Bench scale capture that does not oversize the fan or the make up air requirement
- Clear dome hoods so operators can see the work under the capture point
- A defined four inch duct interface for the mechanical trade to build to
- Complete arm, bracket, hood and connector package with no field sourced adapters
A clear dome hood keeps the work visible under the capture point, which is what makes an arm get positioned correctly. Representative photo.
Return on Investment
On a construction project, the return on this kind of package is measured in avoided schedule risk. A ceiling mounted arm ordered at a fixed drop length against an unfinished space is a coin flip; if the dimension moves, the bracket is wrong, and the fix is a return, a re-order and an installation crew standing down. An adjustable bracket removes that failure mode for a marginal cost.
Buying both arms in one order avoids duplicate transaction cost. A second arm added later carries its own freight, its own receiving and its own installation trip, and on a construction site a second installation visit for one device is rarely cheap.
Right sizing the arms is the operating saving. Local exhaust runs whenever the lab runs, and an oversized capture point pulls conditioned air out of the building for the life of the room. Choosing three inch arms for bench scale work keeps the exhaust volume, the fan, and the heating and cooling load that follows it proportionate to the task.
Finally, a complete component package protects the labor budget. Field sourcing a missing connector or fabricating an adapter is billable time on a construction project, and it happens most often when arms, brackets and hoods are bought from separate catalogs. Ordering them as a set from one source is what makes a two hour installation a two hour installation.
Project Process
Requirement from the drawing set
Reviewed the bench area and the capture requirement with the contractor while the space was still under construction.
Scope revision
The requirement moved from one arm to two, and the quote was revised so both stations were priced and shipped as a matched set.
Bracket strategy
Specified forty inch telescopic ceiling brackets so the final hood height could be set on site rather than fixed at order time.
Component selection
Selected three inch arms for bench scale capture and fourteen inch clear dome hoods for visibility, with matched connectors and hood stubs.
Duct coordination
Confirmed the four inch top connection on each bracket so the mechanical trade could size and route ductwork in parallel.
Stock delivery
Shipped the complete package from stock inside about a week so installation fit the construction schedule.
Laboratory Extraction Arms in Princeton and Central New Jersey
Princeton and the central New Jersey corridor along Route 1 hold one of the densest concentrations of pharmaceutical, specialty chemical, materials science and university research laboratories in the country. A large share of the laboratory construction here is renovation work inside existing research buildings, where a suite is stripped and rebuilt for a new tenant or a new program.
Renovation is precisely where adjustable mounting earns its place. Existing buildings have variable slab to slab heights, ceilings that were installed to whatever dimension suited the previous fit out, and services already routed above the grid. A telescopic bracket absorbs that variability instead of requiring a survey before the equipment can be ordered.
New Jersey laboratories also operate under close attention to local exhaust and air handling, and the practical consequence is that capture points get documented and inspected. Specifying a defined duct connection at the bracket rather than an improvised field fitting is what makes that documentation straightforward.
Labs USA supplies extraction arms, fume hoods, casework, laboratory tables and shelving throughout New Jersey, New York and Pennsylvania, including Princeton, Trenton, New Brunswick, Newark and the Philadelphia metro, and works directly with general and mechanical contractors on build outs. Call (801) 855-8560 with a drawing set, or browse the exhaust snorkel hub for arm, bracket and hood options.
Shop Exhaust Snorkels Online
Browse current catalog options for a similar extraction project. Confirm the arm, hood, telescopic bracket and building exhaust requirements as one compatible package; these listings do not identify the exact supplied project configuration. Displayed starting prices vary with selected options.
Frequently Asked Questions
What is a telescopic ceiling bracket and when should it be used?
It is an adjustable length drop bracket that hangs an extraction arm from the ceiling and can be set within a range on site. Use it whenever the finished floor to ceiling dimension is not settled at order time, which on a construction or renovation project is most of the time. A fixed length bracket has to be correct to the inch before the ceiling exists.
Can a contractor buy laboratory extraction equipment directly?
Yes. General and mechanical contractors buy arms, brackets, hoods and trim directly, which is how this project was purchased. Working from the drawing set, the important items to nail down are mounting height range, duct connection size and hood type, so the mechanical trade has a defined interface to build to.
Should I use a three inch or a four inch extraction arm?
Three inch arms suit bench scale work, which covers most laboratory vapor, fume and light aerosol capture. Four inch arms move considerably more air and are the choice for heavier generation, longer reach or a capture point that has to sit further from the source. Oversizing drives fan selection, make up air and operating cost for the life of the room.
Why choose a clear dome hood?
Visibility. A polycarbonate dome lets the operator see the work under the capture point, which makes correct positioning of the hood far more likely. Painted metal hoods are the better choice where heat, open flame or heavy incidental contact is expected.
How quickly do extraction arms ship?
Standard arms, brackets, hoods and connectors typically ship from stock in about one to two weeks, which is what happened on this project. Custom lengths, special materials or non standard finishes move onto a build schedule.
What has to be coordinated with the ductwork above the ceiling?
The connection size and location. Each bracket here carries a four inch top duct connection, so the mechanical contractor can size branch duct, plan the route and set the fan while the arms are still in transit. Without a defined interface, the connection gets improvised on site, which is where leaks and rework come from.
