Ceiling Mounted Fume Extraction Arms Supplied to a General Contractor: East Coast Construction Group, Boca Raton, Florida
A general contractor building out a laboratory in south Florida needed source capture at two bench positions with no wall available to mount to. Labs USA supplied two ceiling mounted extraction arms on sixty inch drop brackets with side exhaust outlets, clear dome hoods and ceiling trim plates, delivered in one to two weeks.
The Situation
East Coast Construction Group is a general contractor, and on this project it was building out laboratory space rather than operating it. That changes the nature of the purchase. A contractor is responsible for equipment that has to be installed correctly, coordinated with mechanical and ceiling trades, and accepted by the owner, usually while the room is still an active construction site.
The requirement was source capture at two bench positions. Two things made wall mounted extraction arms the wrong answer. The bench positions were not against a usable wall, and the room had a suspended ceiling with structure well above it, so the only solid mounting available was overhead.
Overhead mounting introduces a dimension problem that decides whether the installation works at all. The bracket has to reach from real structure, in this case hard deck or channel framing at about one hundred forty four inches above finished floor, down through a false ceiling at about one hundred eight inches, and still leave the arm at a working height over the bench. Get that drop length wrong and the hood either sits too high to capture anything or hangs low enough to be in the way.
The contractor also had a coordination problem that is specific to false ceilings. A bracket passing through a ceiling tile leaves a rough opening. Left as is, it is an unfinished penetration that the owner will reject and that undermines the ceiling plane, so the trim detail had to be part of the equipment order rather than something field fabricated later.
The Solution
Labs USA specified a matched ceiling mounted package for both positions: a three inch diameter standard fume extractor arm sixty inches long, a sixty inch vertical ceiling bracket with a four inch side exhaust outlet, a fourteen inch clear dome capture hood with a hood stub, and an escutcheon trim plate to finish the ceiling penetration. Two of each, so both stations are identical.
The bracket length was set from the actual dimensions rather than assumed: mount to structure at about one hundred forty four inches above finished floor, pass through a false ceiling at about one hundred eight inches, and place the arm connection at a height where a sixty inch arm reaches the whole bench without being pushed to the end of its travel. The equipment supplier confirmed the height before release so the bracket would not need resizing on site.
The side exhaust outlet on the bracket is a detail worth naming. A top exhaust connection is normal on a wall bracket, but on a ceiling drop it forces ductwork to turn immediately above the bracket, in the tightest part of the space, right where ceiling grid and other trades are already competing. A four inch side outlet lets the duct leave horizontally in the ceiling cavity, which is where it wants to run.
The clear dome hood was chosen for the same practical reason. A dome pulls from a wide area above the work rather than a narrow face, which suits bench operations where the operator cannot predict exactly where fume will rise. Because it is transparent, it does not shadow the work or block sight lines, and operators are far more willing to position a hood they can see through.
Escutcheon plates finished each ceiling penetration in a manufactured trim ring rather than a field cut patch. It is a small part with a large effect on how a completed room looks at handover, and it gives the ceiling contractor a clean detail to work to. Related options are on the Labs USA ceiling mounted exhaust snorkel hub and the broader exhaust snorkel hub.
Features
Advantage
General contractors get equipment wrong on laboratory projects for a predictable reason: the package is bought as a line item, the mounting dimensions are not verified, and the mismatch shows up on site when the ceiling is already closed. Rework at that stage means reopening finished work and coordinating trades that have moved on.
This order avoided that by treating the mounting height as part of the specification. The drop length, the structure height and the false ceiling height were confirmed against each other before production, and the trim plate that closes the penetration was in the same order as the arm.
Buying both stations as matched packages also protects the contractor at handover. Two positions built from the same parts commission the same way, and there is no argument about why one hood behaves differently from the other.
Delivery matters as much as the parts on a construction schedule. A one to two week lead time on standard components lets equipment arrive when the sequence calls for it, rather than becoming the item that holds up ceiling closeout.
Benefits
- Source capture at two bench positions with no wall mounting available
- Bracket length verified against structure and false ceiling heights before production
- Ductwork routed horizontally in the ceiling cavity through side exhaust outlets
- Clear dome hoods that capture over a wide area without blocking the operator’s view
- Finished ceiling penetrations using manufactured escutcheon plates
- Identical parts at both stations for simpler commissioning and spares
- One to two week delivery that fits a construction sequence

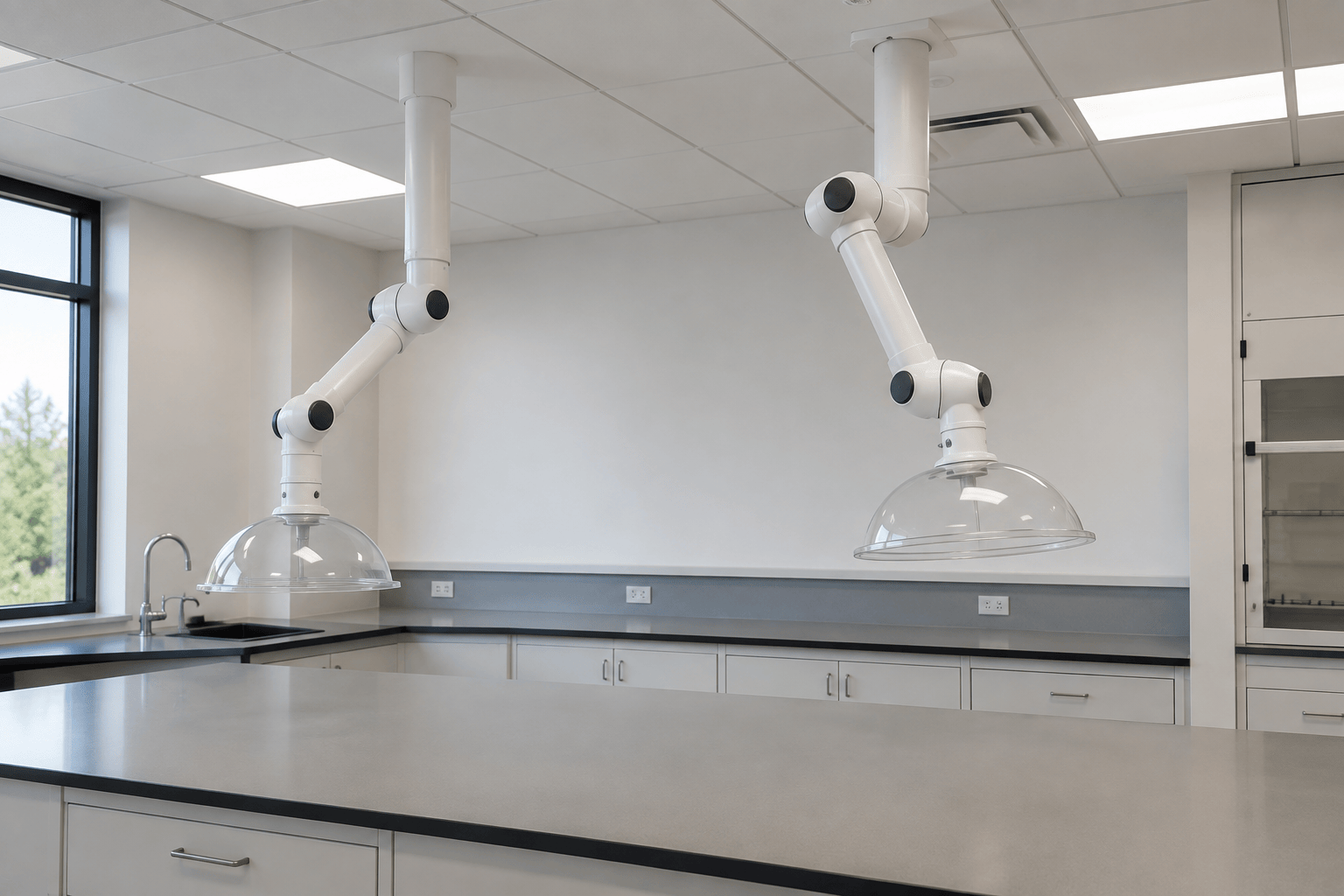

An escutcheon plate closes the gap where the drop bracket passes through the ceiling, which is what makes the installation look finished at handover. Representative photo.
Return on Investment
On a contractor project the return is measured in avoided rework and in schedule protection, not in energy savings. A drop bracket that turns out to be the wrong length after the ceiling is closed is one of the more expensive small mistakes available on a laboratory fit out, because it touches ceiling, mechanical and equipment trades at once.
Source capture also reduces what the building has to do. Two arms drawing at the point of release handle contaminant with a fraction of the airflow that room dilution requires, which keeps make up air and exhaust fan sizing where the mechanical design put it instead of pushing it up late in the project.
For the owner who inherits the room, articulated arms that fold back out of the way survive daily use. Fixed hoods over benches get bumped, worked around and eventually ignored. An arm that repositions gets used, and equipment that gets used is the only kind that returns anything.
Finally, standard components carry a maintenance benefit that a bespoke assembly does not. Hoods, dampers and arm sections are catalog parts, so a damaged hood is a replacement part rather than a fabrication project.
Project Process
Contractor requirement
Established that source capture was needed at two bench positions in a laboratory build out, with no usable wall for mounting.
Mounting survey
Confirmed structure height at about one hundred forty four inches above finished floor and a false ceiling at about one hundred eight inches.
Bracket sizing
Set a sixty inch vertical drop with a four inch side exhaust so the arm sits at working height and duct runs in the ceiling cavity.
Hood and trim selection
Specified fourteen inch clear dome hoods with hood stubs and escutcheon plates to finish each ceiling penetration.
Quote and release
Issued the package for review and release as two identical station kits so both benches were built from the same parts.
Delivery to site
Shipped standard components on a one to two week schedule to match the construction sequence for ceiling closeout.
Laboratory Fume Extraction in Boca Raton and South Florida
Boca Raton and the Palm Beach and Broward County corridor hold a dense mix of clinical and diagnostic laboratories, medical device work, university and research space, environmental testing and specialty manufacturing. Much of that space is fit out by general contractors inside existing shell buildings, which is exactly the situation on this project.
South Florida construction has two features that affect extraction equipment. Suspended ceilings are nearly universal, so overhead mounting almost always means a drop from structure through a ceiling plane rather than a direct bracket. And humidity is high year round, so painted steel components and properly finished penetrations matter more than they do in a dry climate.
Labs USA supplies extraction arms, capture hoods, brackets, fume hoods, casework and laboratory tables throughout Florida, including Boca Raton, Fort Lauderdale, West Palm Beach, Miami, Orlando and Tampa, and works with general contractors as well as end users. Call (801) 855-8560 with room dimensions and we will size the mounting before anything is ordered. Related equipment is on the ceiling mounted snorkel and laboratory fume hood hubs.
Shop Exhaust Snorkels Online
Buy select items directly from our online store, or request a quote for volume, custom sizes and freight-rated orders.
Frequently Asked Questions
When should an extraction arm be ceiling mounted instead of wall mounted?
Whenever the work position is not against a wall that can carry the load, or when the bench is in the middle of a room, on an island, or against glazing or casework that cannot be drilled. A ceiling drop puts the arm where the work is instead of where the wall happens to be.
How is the drop bracket length determined?
From three real dimensions: the height of the structure the bracket attaches to, the height of the finished ceiling it passes through, and the working height you need the arm to sit at over the bench. On this project structure was about one hundred forty four inches above finished floor and the false ceiling about one hundred eight inches, which set a sixty inch drop.
Why use a side exhaust outlet on a ceiling bracket?
Because ductwork in a ceiling cavity runs horizontally. A top outlet forces an immediate elbow in the most congested part of the space above the bracket, while a side outlet lets the duct leave in the direction it needs to travel.
What is the advantage of a clear dome hood?
It captures over a wide area rather than a narrow face, which suits bench work where fume does not rise from a predictable point, and it does not block the operator’s view of the work. Hoods that obstruct sight lines get pushed aside and stop being used.
What is an escutcheon plate for?
It is a trim ring that closes the gap where the bracket passes through a suspended ceiling. Without it the installation leaves a rough opening in the ceiling plane, which looks unfinished and is usually rejected at handover.
Can a general contractor buy this equipment directly?
Yes. Contractors buy extraction packages from Labs USA regularly. The useful practice is to confirm mounting heights and duct direction before release, so the bracket does not have to be resized after the ceiling is closed.
