Corrosion Resistant Extraction Arm for an Environmental Testing Laboratory | Pace Analytical, Oakdale, Minnesota

The Solution

Labs USA specified a polypropylene extraction arm rather than a standard metal one. The arm is four inches in diameter and seventy six inches long, articulated, with a manual damper, and its air path is polypropylene throughout. Polypropylene is essentially inert to the mineral acids used in sample preparation, so the inside of the tube, which is the part that sees concentrated vapor, is the part that is best protected.

The manual damper is the least glamorous item on the list and the one technicians use most. A fixed-flow arm is either pulling too hard for a light vessel, which disturbs sample handling and drags conditioned air out of the room, or too softly for an active digestion. A damper at the arm lets the operator set capture for the task in front of them, and lets them close it when the station is idle so the rest of the exhaust system keeps its balance.

A ten inch metal hood with a connector was supplied with the arm. Ten inches is a deliberate choice: it is large enough to cover an open beaker or digestion vessel with margin, and small enough to keep face velocity high at the source without demanding a large exhaust volume. A larger dome hood would have looked more impressive and captured less, because capture depends on velocity at the vessel rather than on hood area.

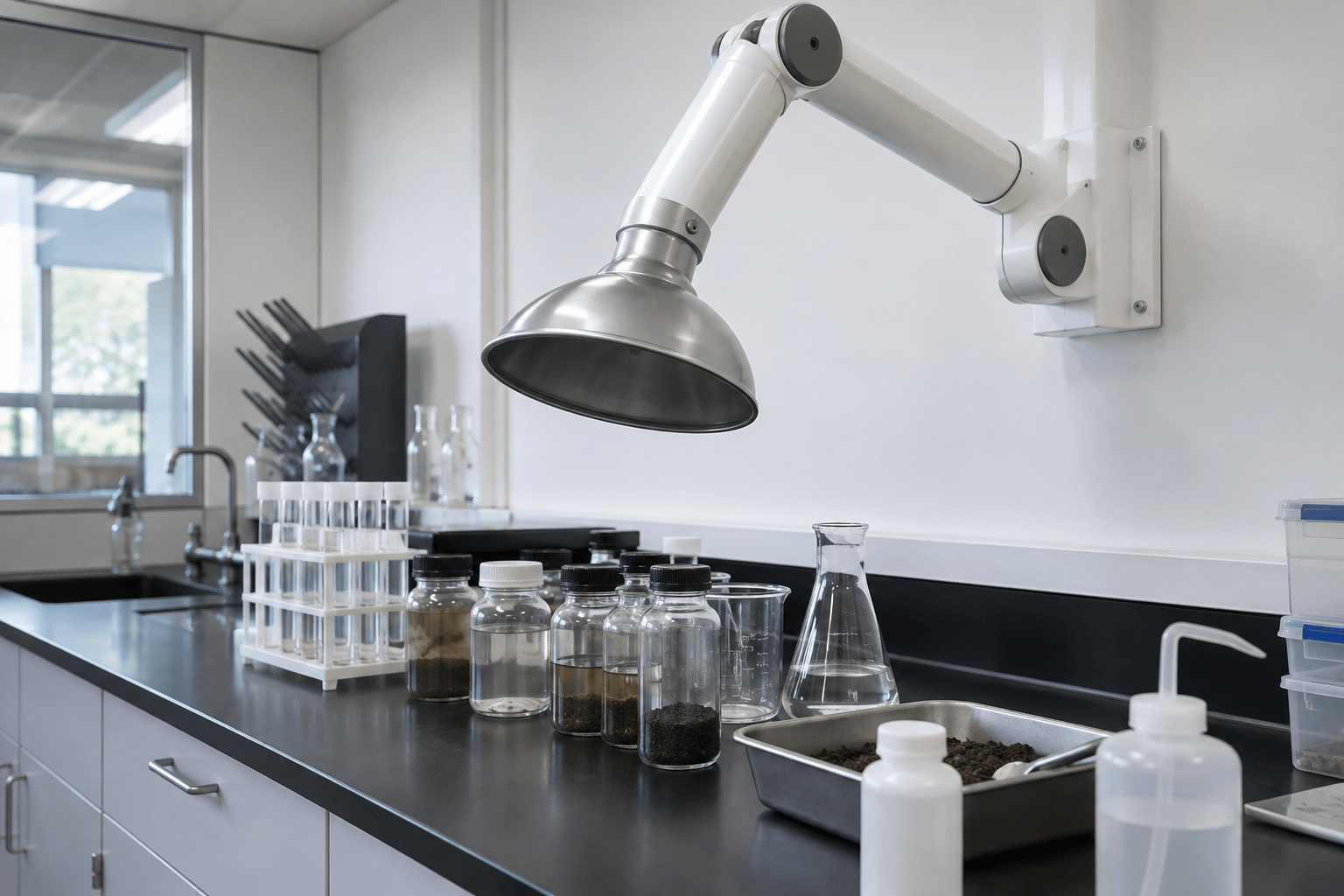

Mounting used a wall bracket with a five inch top exhaust outlet, together with a ten by ten inch mounting plate to spread the load into the wall structure. A ceiling bracket at roughly one hundred forty four inches above finished floor was evaluated for this station and a wall mount was the configuration ordered, which is normally the better choice when the bench is against a wall and an exhaust point is available at high level. That made the installation a bracket, a plate, an arm, and a duct connection, with no bench modification at all.

The result is a single, purpose-matched capture point: a wall mounted extraction arm built from a material that matches the chemistry, sized for the vessels actually in use, and adjustable by the person using it. Delivery was two to three weeks after receipt of order. Where the same problem appears at an island bench, a ceiling mounted arm solves it, and where the station moves, a portable extractor does.

Advantage

The specification decision that matters most on this project is material. Extraction arms are sold primarily as painted steel or aluminum assemblies, and for solvent, dust, or heat capture they are fine. For acid vapor they are a consumable. Corrosion starts on the inside surface where the concentration is highest and the inspection access is worst, and the first symptom is usually a joint or damper that will not move.

Polypropylene removes that failure path. It costs more per arm than a painted steel equivalent and less than replacing a corroded arm twice. In an environmental laboratory, where acid digestion is not an occasional task but a daily production step, that trade is straightforward.

The second decision is scale. Source capture at a single bench station uses a fraction of the exhaust volume of an additional fume hood, and it does not consume the floor area or the sash-hours that a hood does. For a task measured in minutes, capture at the vessel is the proportionate control, and it leaves the laboratory’s hoods available for the work that genuinely needs containment.

Labs USA specifies exhaust snorkels in wall mounted, ceiling mounted, and portable configurations, alongside laboratory fume hoods and lab furniture, so the recommendation for a given station is based on the chemistry, the bench, and the duct that is actually available.

Return on Investment

The first return is the hood that did not have to be bought. Adding a ducted fume hood to serve a short preparation step means the hood, the casework beneath it, the duct, the exhaust fan capacity, the floor space, and the conditioned make-up air, indefinitely. A single extraction arm addresses the same exposure at a small fraction of the capital and a small fraction of the exhaust volume.

The second is the Minnesota energy argument. Every cubic foot exhausted in January is replaced with outside air that has to be heated. Source capture at four inches of duct, with a damper that closes when the station is idle, is the cheapest air in the building to condition. A hood running at fixed flow is the most expensive.

The third is maintenance avoided. A corroded arm is not simply replaced; it is diagnosed, priced, scheduled, and installed, and the station is out of service while that happens. Specifying a polypropylene air path for acid service converts a recurring maintenance line into a one-time purchase.

The fourth is throughput. Technicians use controls that are convenient. An arm that is at the bench, adjustable, and out of the way when folded back gets used for every acidification step. A hood across the room gets used when it is free.

Serving Laboratories Across Oakdale and the Twin Cities

The Twin Cities metro has an unusually dense cluster of environmental, water quality, food safety, and medical device testing laboratories, from Oakdale and Woodbury on the east side through St. Paul, Roseville, Eagan, Plymouth, and into Minneapolis. Most of them share the same operating pattern: high sample throughput, standardized methods, and bench stations that run all day.

In that pattern, bench level source capture does more for exposure control per dollar than any other intervention, and it does it without taking hood space away from the methods that require it. Minnesota’s climate sharpens the point. With a long heating season, exhaust volume is a direct and permanent operating cost, so controls that capture a small volume close to the source are worth specifying carefully.

Labs USA supplies extraction arms, fume hoods, casework, and laboratory furniture to laboratories across the metro and greater Minnesota. If you have a station where vapor reaches the technician before it reaches the ceiling, an exhaust snorkel is usually the right first move, and we will tell you when it is not.
