Double Slotted Wall Standards for Adjustable Laboratory Shelving: Craddock Lumber, Dallas, Texas
A laboratory in Dallas, Texas needed its wall shelving to be adjustable and to stay that way. Labs USA supplied eight thirty six inch double slotted steel wall standards in textured black for Craddock Lumber, the components that turn a plain wall into a reconfigurable storage wall.
The Situation
Craddock Lumber, a Texas building materials supplier, needed shelving hardware for a laboratory space on Harry Hines Boulevard in Dallas. The order was small and entirely about a component: eight thirty six inch tall double slotted wall standards, finished in textured black.
Small component orders like this one are worth documenting because they solve a problem that gets solved badly all the time. A room needs shelving over a bench. The quick answer is a fixed shelf on a pair of brackets screwed to the wall wherever the studs happen to be. That works exactly once, for whatever is on the shelf on the day it goes up. The first time a taller bottle, a new instrument or a different set of sample boxes arrives, the shelf is either in the way or wasting the space above it, and moving it means new holes in the wall.
A laboratory changes more often than that. Storage requirements shift with methods, sample volumes, container sizes and equipment, and the wall above a bench is the most contested storage real estate in any room. Making that wall adjustable from the beginning is the difference between shelving that keeps fitting the work and shelving that gets abandoned.
There was also a finish requirement. Textured black is not a cosmetic afterthought in a working room. A textured powder coat hides the scuffing that shelf brackets and sliding boxes inevitably cause, and a dark finish stays presentable in a space where a light finish shows every mark. In a laboratory that gets cleaned frequently, finish durability is part of how long the installation looks maintained.
The Solution

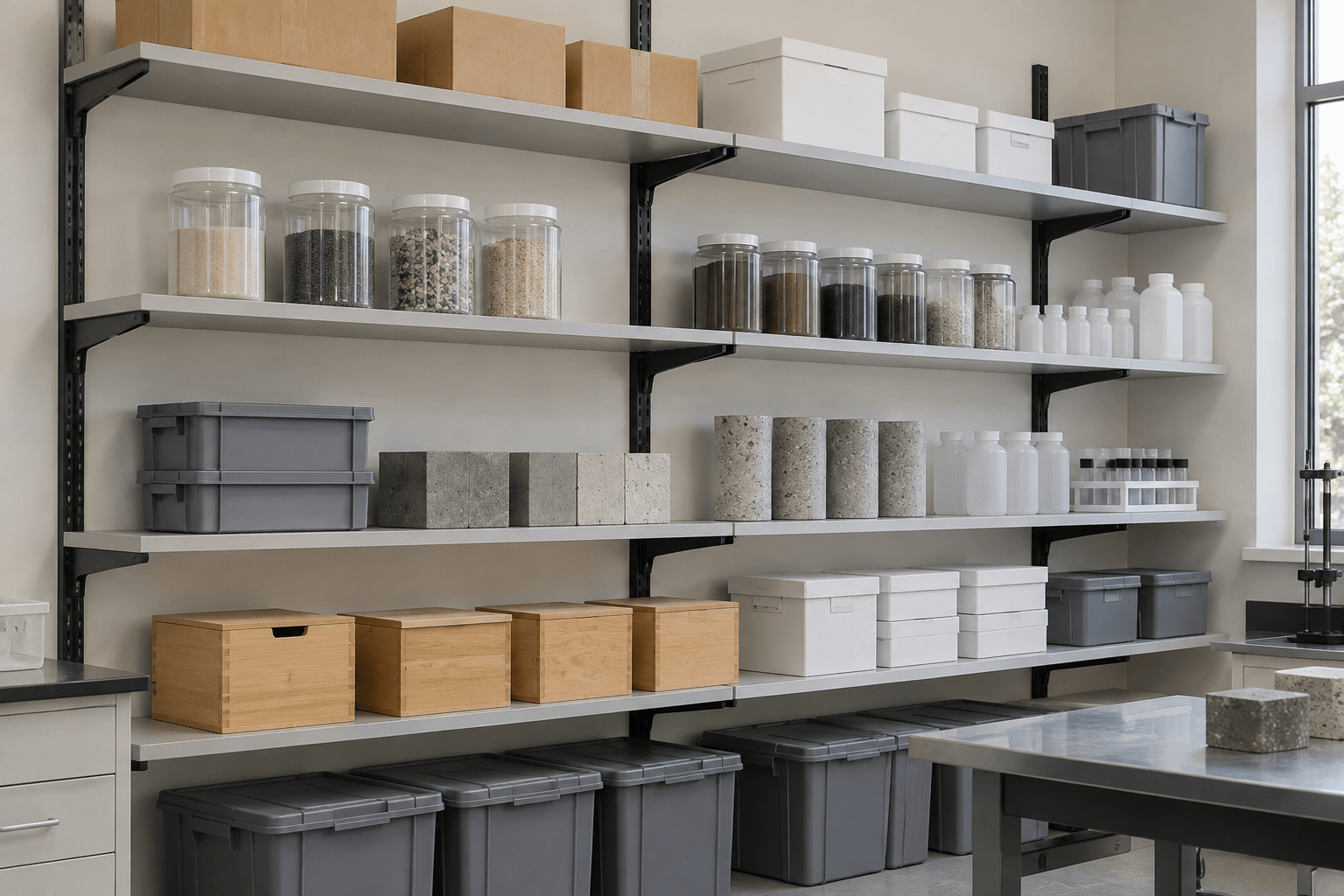

Labs USA supplied eight thirty six inch tall double slotted steel wall standards, finished in textured black, as the mounting backbone for adjustable wall shelving above the laboratory’s benches.
A double slotted standard has two parallel slot columns rather than one. That is the whole engineering point: a bracket engages at two points instead of one, so the load is carried as a couple rather than as a single hooked tab. The result is a bracket that resists rotation under an off center load, which is what you get every time someone slides a heavy box to the front edge of a shelf. Single slot systems are adequate for light dry goods; laboratory storage is where the double slot earns its place.
Eight standards at thirty six inches is a specific decision about coverage. Standards are set on a spacing that matches both the wall structure and the intended shelf length, and eight of them gives several bays of shelving rather than one isolated run. Because the shelves hang from bracket positions in the slots, every shelf height in every bay can be changed independently, without new holes in the wall and without unloading the rest of the run.
Thirty six inches of vertical travel is the practical sweet spot above a standard bench. It is enough to carry two or three shelf levels and to relocate them through the full range that matters, while staying below the height where stored items become hard to reach safely. Taller standards make sense on a full height storage wall; above a work surface they mostly add unreachable space.
The finish carries through the same logic. A textured black powder coat resists visible wear from bracket engagement and from boxes sliding along the wall, and it stays presentable in a room that gets wiped down constantly. These standards sit alongside the rest of the Labs USA laboratory shelving systems range, and they pair naturally with laboratory casework and laboratory tables below them.
Features
Advantage
The argument for a slotted standard system over fixed brackets is about the second year, not the first. Fixed shelving is faster and cheaper to put up, and for a wall whose contents never change it is a reasonable choice. Laboratory storage changes constantly, and every change to a fixed shelf means drilling the wall again, patching the last set of holes and taking the shelf down to do it. After two or three rounds the wall is damaged and the shelving is wherever the least inconvenient holes were.
Choosing double slotted rather than single slotted is the second decision, and it is a load decision. Two engagement points per bracket turn a hooked tab into a fixed connection, which is what keeps a shelf level when weight is loaded at the front edge. Laboratory shelves carry reagent bottles, sample boxes and instruments, and they are loaded unevenly by definition. A single slot system used that way relies on friction and the shelf lipping over.
Sizing the standard to the wall zone is the third. Thirty six inches above a bench covers the range where shelves are actually used and reached. Buying taller standards to get more capacity usually produces a top shelf that nobody wants to use with both hands full, and shelving that is not used is not capacity.
The last point is about small orders. A component order does not need to be treated as an afterthought. Eight standards in the right height, the right slot pattern and a durable finish is a complete answer to a real problem, and it was supplied as such: specified, priced, shipped by parcel and tracked to delivery.
Benefits
- Shelf heights can be changed as storage needs change, without new holes in the wall
- Two engagement points per bracket for real load stability under uneven loading
- Storage moved onto the wall so bench tops and aisles stay clear
- A textured black finish that hides the wear a working laboratory produces
- Several bays of coverage rather than one isolated shelf run
- Matching standards and brackets can be added later to extend the wall
The bracket engages both slot columns, so the shelf load is resisted as a couple rather than hanging from a single tab. That is what keeps a laboratory shelf level when the heaviest item ends up at the front edge.
Return on Investment
The first return is the wall itself. Every reconfiguration of fixed shelving damages drywall or masonry, and repeated patching in a laboratory eventually means repainting a room that is in use. A slotted system is drilled once and adjusted indefinitely.
The second is usable storage per square foot of floor. Wall shelving above a bench uses space that otherwise does nothing, and it displaces the free standing racks and carts that otherwise migrate into the aisle. Aisle width is the most expensive space in a laboratory and the easiest to lose.
The third is labor. Changing a shelf height in a slotted system takes one person a minute. Doing the same job with fixed brackets takes a drill, an anchor, a patch and a paint touch up, and it happens every time a container size changes.
The fourth is longevity. Steel standards with a durable powder coat outlast the shelves they carry, and because the system is standard, brackets and shelves are replaceable parts. The investment is in the wall infrastructure, and it stays valid through several generations of what sits on it.
Project Process
Define the storage
Establish what goes on the wall, in what container sizes, and how often that changes.
Set the vertical zone
Confirm the working range above the bench so shelf travel is where it is reachable.
Choose the slot system
Select double slotted standards where loads are uneven and shelves are reconfigured often.
Lay out the bays
Space the standards to the wall structure and the intended shelf length.
Match the finish
Specify a textured finish that hides bracket and box wear in daily use.
Supply and ship
Deliver the standards as a tracked parcel shipment with brackets and shelves to match.
Laboratory Shelving and Storage for Dallas and North Texas
Dallas and the wider North Texas metroplex carry a broad mix of laboratory work: building materials and construction testing, medical and clinical laboratories along the Harry Hines corridor, environmental and water testing, food and beverage quality control, and manufacturing quality laboratories through Fort Worth, Irving, Garland and Plano. Storage is a constant in all of them, because sample retention and consumable stock grow whether or not the room does.
Labs USA supplies laboratory shelving, casework, work surfaces and source capture ventilation into Texas, and we quote component orders as readily as full rooms. On a small hardware order the things that matter are getting the specification right the first time and shipping it promptly, which is how this order was handled.
For adjustable wall standards, brackets, shelves, laboratory shelving systems, casework or extraction equipment in North Texas, call 801-855-8560.
Shop Laboratory Shelving Systems Online
Buy select items directly from our online store, or request a quote for volume, custom sizes and freight-rated orders.
Frequently Asked Questions
What is a double slotted wall standard?
It is a vertical steel mounting strip with two parallel columns of slots, fixed to the wall so shelf brackets can be engaged at any slot position. Because each bracket engages two slots, the connection resists rotation and carries load more securely than a single slot system.
Why choose double slotted instead of single slotted standards?
Load behavior. Two engagement points per bracket resist the rotation caused by weight placed at the front edge of a shelf, which is normal in laboratory use with bottles, boxes and instruments. Single slot systems are better suited to light, evenly loaded dry storage.
Why not just screw fixed shelf brackets to the wall?
Fixed brackets are quicker initially but they fix the shelf heights permanently. Laboratory storage needs change with methods, sample volumes and container sizes, and each change to a fixed shelf means new holes, patching and touch up. A slotted system is drilled once and adjusted afterwards.
Is thirty six inches tall enough?
Above a standard bench it usually is. Thirty six inches of vertical travel carries two or three shelf levels through the range that is comfortably reachable. Taller standards make sense on a full height storage wall, but above a work surface they mostly add space that is awkward to reach safely.
How many standards does a wall need?
It depends on shelf length, load and wall structure. Standards are spaced so each shelf is carried by brackets at both ends and, for longer shelves, in the middle as well. This project used eight standards to create several bays rather than one run.
Can shelving be added to the same standards later?
Yes, and that is the main reason to use them. Additional shelves and brackets engage the same slots, and matching standards can extend the wall, so the storage grows with the laboratory instead of being rebuilt.
