Adjustable-Height Lab Tables — Ergonomic Sit-Stand Workstations
Adjustable-height laboratory tables with electric lift or manual crank. 28″–42″ range. Chemical-resistant tops. ADA compliant. Free design from Labs USA.
Talk with a lab furniture specialist · (801) 855-8560 · Sales@Labs-USA.com

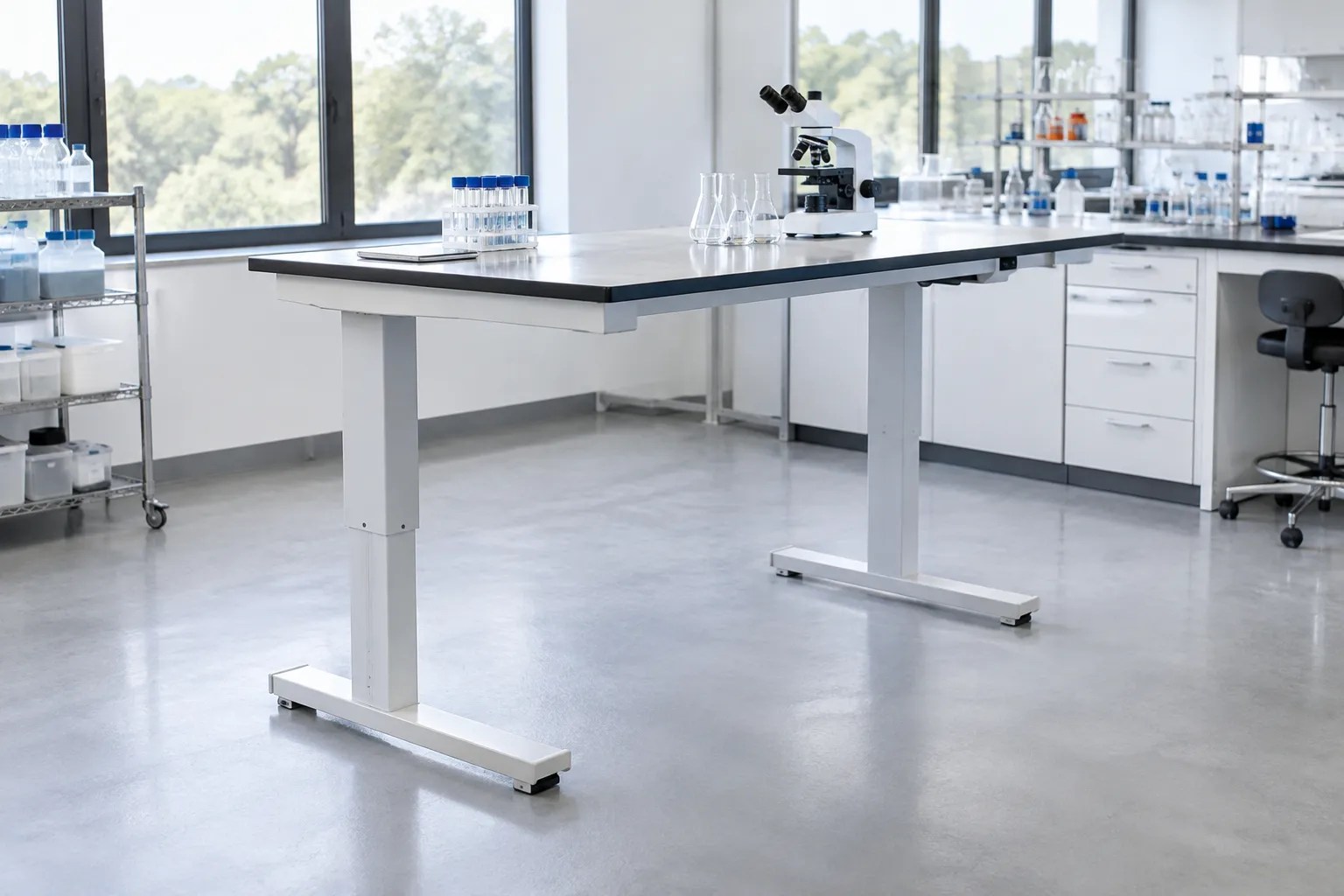

Adjustable-Height Lab Tables — Ergonomic Sit-Stand Workstations
Adjustable-height lab tables let users switch between sitting and standing throughout the day. Electric-lift and manual-crank mechanisms raise and lower the entire work surface — including instruments, monitors, and materials — from approximately 28″ to 42″ or higher. This accommodates different user heights, task requirements, and ergonomic preferences.
Labs USA supplies adjustable-height tables with steel and stainless steel frames, chemical-resistant countertops, and load capacities from 250 lbs to 1,000+ lbs. Available in single-sided, double-sided, and ADA-compliant configurations.
Lift Mechanisms
Electric Lift
Push-button height adjustment. Quiet motors raise/lower the surface in seconds. Programmable memory positions for multiple users. Best for shared workstations and labs where frequent height changes are needed. Load capacity: up to 1,000 lbs.
Manual Crank
Hand-crank mechanism. No electrical connection needed — works anywhere. Lower cost than electric. Best for labs where height is set once and adjusted occasionally. Load capacity: up to 500 lbs.
Applications
- Microscopy stations — Adjust height for extended microscope work to reduce neck and back strain
- Multi-user shared labs — Different users set their preferred height with memory presets
- ADA workstations — Lower to wheelchair-accessible height, raise for standing users
- Sample preparation — Optimize height for different tasks (pipetting, weighing, mixing)
- Quality control stations — Adjust for different instruments and inspection tasks
Plan an Accessible Research Station and Its Power Together
Replacing a fixed island is not just a table swap. A station can lower to a seated position and still be difficult to use if cabinet aprons, drawers, equipment, or utilities block a wheelchair approach. Start with the user’s working position and the tasks performed there, then fit the station into the bench run. Your architect and authority having jurisdiction should confirm the project’s accessibility requirements.
Choose the station location around the work
- Provide clear knee and toe space beneath the active work area. An open-end station can be easier to integrate into an existing island or perimeter run. An adjustable-height section may work better when several people share the same station.
- Check the full approach path, turning space, and nearby aisle clearance. Furniture that works by itself may become inaccessible when chairs, carts, doors, or mobile equipment are added.
- Map the user’s reach to switches, receptacles, faucets, valves, sink controls, shelving, and commonly used supplies. Controls behind deep equipment or above a tall backsplash may not be practical from a seated position.
- Treat sinks, fume hoods, and other fixed equipment as separate design decisions. An adjustable table beside them does not automatically make those work areas accessible. Ask the architect, engineer, EHS team, and authority having jurisdiction to review the complete workflow.
- Plan replacement storage before removing a cabinet-filled island. Use nearby mobile storage, wall cabinets, tall cabinets, or casework outside the knee-clearance zone rather than filling the open station with drawers. Compare custom and modular casework when existing room dimensions are uncertain.
- Review examples such as an adjustable-height university lab table, but have the project team verify that the final layout meets the needs of its users and jurisdiction.
Coordinate power before furniture is released
- 1
List every powered item Record each instrument’s voltage, plug type, electrical load, location, and whether it can move with the table. Include computers, monitors, chargers, pumps, and small devices that are often added later.
- 2
Select the feed path Power bars or raceways may be mounted on the bench, but they still need a building connection. Coordinate whether power will come from the floor, wall, ceiling, or another approved route. Confirm that the feed will not obstruct knee space or create a trip or snag hazard.
- 3
Protect the height travel Allow enough flexible cable length for the full table movement without tension, pinching, or loops that can catch nearby objects. Keep cords clear of lift components. Equipment that cannot move safely may need a fixed support beside the adjustable station.
- 4
Separate critical loads Discuss placing selected instruments on separate circuits so one tripped breaker does not shut down an entire bench. The electrical engineer and electrician must determine circuit quantity, capacity, protection, receptacle type, and code compliance. Do not use the furniture layout as the electrical design.
- 5
Document the coordinated plan Before ordering, send Labs USA a dimensioned floor plan, photos of the existing island and utilities, the desired knee-clearance location, storage needs, user and workflow notes, equipment dimensions and weights, voltage and plug information, preferred power-feed route, and the architect’s or engineer’s accessibility and electrical requirements. You can also upload a lab floor plan for review.
Send those details through our contact form or call (801) 855-8560, and a Labs USA specialist will review them with you.
ICI Scientific Patriot Adjustable Tables
As an authorized ICI Scientific dealer we quote ICI’s Patriot Table System: 2 x 2 in. 11-gauge welded steel frames, 1 in. phenolic or epoxy tops, bolt-style height adjustment and a 950 lb UDL rating on glides, with shelving, plumbing, power strips and suspended cabinets as options. Patriot Edge adds crank or electric lift.
Frequently Asked Questions
Can one accessible station be inserted into an existing bench run?
Often, yes, but the surrounding cabinets, countertop joints, utility feeds, and aisle clearances must be reviewed. An open-end or adjustable-height section may fit, while nearby storage can replace cabinets removed from the knee-clearance area.
Should receptacles move with an adjustable-height bench?
They can be mounted on the moving bench in some configurations, provided the approved power connection accommodates the full travel safely. The electrical engineer and electrician should approve the feed method, cable management, circuiting, and receptacle selection.
Can a sink or fume hood be part of an accessible station?
Potentially, but clearances, controls, plumbing, exhaust connections, and the user’s reach all require project-specific review. Have the architect, relevant engineer, EHS team, and authority having jurisdiction confirm the final arrangement.
What if demolition has not exposed the actual utility locations?
Use the best available drawings and field measurements, but keep the furniture plan flexible until conditions are verified. Photos, utility notes, and an updated site survey help prevent conflicts before final dimensions and connection points are released.
What is the height range of adjustable lab tables?
Most adjustable-height lab tables range from 28″ (seated height) to 42″ (tall standing height). Some models extend to 48″ for specialized applications. The standard 28″–36″ range covers both seated work and standard standing-height use.
How much weight can an adjustable-height table hold while lifting?
Electric-lift tables typically handle 500–1,000 lbs of dynamic load (weight while lifting). Manual-crank tables handle 250–500 lbs. Static load capacity (weight while stationary) is higher. Always specify your instrument weight so Labs USA can recommend the right model.
Are electric-lift lab tables safe?
Yes. Quality electric-lift tables include anti-collision sensors that stop the motor if the table contacts an obstruction, overload protection, and manual override. Labs USA specifies tables with UL-listed motors and safety features.
