Laboratory HVAC and Temperature Control Design Guide

July 24, 2026July 24, 2026 Marketing Manager

You can usually spot a lab HVAC problem before the drawings are even finished. The benches look clean, the hoods are placed, the room setpoints seem reasonable, and then the questions start: where does the exhaust go, how much outside air is needed, and what happens when six instruments and three hoods all run at once.

Laboratory HVAC and temperature control design is not just about comfort. It is about containment, stability, energy use, and whether the room can hold its conditions when people, equipment, and fume hoods are all active at the same time.

Practical rule: In a lab, airflow strategy usually drives the outcome more than equipment size.

For teams planning furniture, fume hoods, exhaust snorkels, and benches, that means layout and HVAC have to be designed together from the start. If the room plan gets frozen first, the mechanical system often ends up fighting the furniture instead of supporting it.

Why Lab HVAC Is a Different Animal

A lab is asked to do things a normal office system never faces. It has to exhaust hazardous air, handle large internal heat gains, maintain tight temperature bands, and do it while staying under negative pressure where containment matters. The Stanford laboratory ventilation guidance is blunt about the basics, it calls for 100 percent outside air, no return of fume hood exhaust into the building, continuous exhaust ventilation, and at least 6 air changes per hour in hazardous-material labs, with negative pressure relative to corridors or less hazardous areas (Stanford laboratory standard design guidelines).

Airflow first, temperature second

That is why copied office HVAC rarely works in a lab. An office system can recirculate air, coast through occupancy swings, and lean on comfort as the main goal. A lab cannot do that if contaminants need to move out of the space and not back through the building.

The biggest mental shift is this, the room is not just being cooled. It is being ventilated, balanced, and held in a safe pressure relationship while equipment, people, and process loads change throughout the day.

The national lab low-pressure-drop guidance makes the same point from the energy side. It says the single design choice with the greatest impact on airflow energy use is choosing a variable-flow exhaust system instead of a constant-flow or constant-volume system, and it also pushes short, straight duct runs, low-face-velocity air handlers, and low-pressure-drop energy recovery because those choices reduce fan power and life-cycle cost (U.S. national lab HVAC guidance).

Design takeaway: In labs, HVAC is an airflow and controls problem first, and a temperature problem second.

That matters beyond safety. Labs with 24/7 operation can waste a lot of energy if airflow stays at the same level when the room is empty. It also matters for related spaces like cleanrooms, where air management and filtration goals are even more specific. If you're comparing lab ventilation with more controlled spaces, the planning logic used in cleanroom design guidance shows how quickly airflow decisions change once contamination control becomes the main driver.

For projects that include biobanking or low-particulate storage, it also helps to understand how outside resources frame filtration and room control. A useful companion piece on HEPA filtration for biobanking facilities reinforces the broader point, clean airflow strategy is part of process protection, not just comfort.

Air Change Rates Matched to Lab Type

ACH targets should follow the hazard, not the habit. Too many projects inherit a number from the last building and call it a standard. That usually means chemistry spaces are under-served, while simpler labs are over-ventilated and punished with extra fan and reheat cost.

Lab Type	Typical ACH	Primary Driver	Notes
Chemistry	10 to 12	Solvent exhaust and containment	Better suited to high-exhaust work and volatile compounds
Biology	6 to 8	Occupant safety and general dilution	Often lower than chemistry because the exhaust burden is usually lighter
BSL-2	8 to 10	Directional airflow and containment	Needs pressure control and careful room balance
Cleanroom	20 or more	Particle control and HEPA supply	Airflow is tied to cleanliness, not just comfort
General teaching or analytical	6	Basic dilution and stability	Works when hazard load is lower and process needs are modest

Chemistry labs need more airflow because the exhaust load is often higher. Biology labs can sometimes run at lower rates, but only when the risk profile and room use support it. Cleanrooms sit in a different category entirely, because the design objective is particle control, not just air quality.

The University of Hawaiʻi guidance gives a useful planning cutoff for general lab benchmarking, more than 6 ACH when occupied and 4 ACH when unoccupied should be justified as necessary for health and safety, and it also notes 1 cfm/sf for H-5 hazard environments under the 2003 International Building Code (University of Hawaiʻi lab guidance). That is a good reminder that not every room needs the same intensity.

Use the hazard analysis, not a guess

The effective method to set ACH is to align it with the actual work in the room.

• Volatile chemistry work usually justifies higher exhaust and more aggressive balance.
• Cell culture and routine biology often need less total air than solvent-heavy benches.
• Containment suites need directional inward flow and pressure stability, not just a big airflow number.
• Teaching and general analytical labs can often stay closer to the lower end if the process supports it.

Practical rule: If the ACH number came from a neighboring building, it probably needs to be rechecked before procurement starts.

That point matters for buyers and facility teams. A design that looks generous on paper can become an energy drain if it ignores actual use. A design that looks efficient can fail if it doesn't match the hazard profile.

Temperature and Humidity Bands That Actually Work

Laboratory temperature control is tighter than many assume, but it still isn't the same everywhere. The VA HVAC Design Manual specifies ±1.0°F tolerance with a 5°F dead band for adjustable VAV applications, and laboratory and veterinary spaces must hold the specified room temperature and humidity set points (VA HVAC Design Manual). That is tight enough to prevent drift, but still realistic for real equipment and occupancy.

Match the band to the process

Some spaces need much tighter control. A pharmaceutical stability room for ICH Q1A work can run at 25.0°C ±0.5°C and 60% RH ±2% RH continuously, and that tighter internal spec matters because excursions can invalidate stability data. The practical lesson is simple, the room's tolerance has to be defined by the protocol, not by what the HVAC package happens to provide.

Most labs, though, can float in broader ranges. University guidance cited earlier shows typical summer minimums and winter maximums in a more moderate band, which is why many labs are designed for stable conditions rather than ultra-tight ones unless the science demands it. For teams storing or moving sensitive materials, even support equipment such as climate-controlled mobile shelves needs to be evaluated as part of the room's overall temperature plan.

Humidity is part of the same problem

Humidity is often the hidden source of trouble. Too little humidity can create static and handling problems, while too much can lead to condensation and corrosion. For that reason, many lab systems use humidification and dehumidification strategies that are built around the actual room duty, not just seasonal comfort.

A good control sequence usually includes:

• Dedicated air handlers for the most sensitive rooms
• Electric reheat coils for fine temperature trimming
• Steam humidifiers where humidity must be held tightly
• Distributed sensing so one bad sensor does not mislead the whole system

Field lesson: If the tolerance is written at the process level, the mechanical system has a fighting chance. If the tolerance is written as a comfort guess, the lab usually pays for it later.

The best sequence is to define the equipment-level tolerance first, then size the air handler to meet it. Reversing that order is how you end up with a room that looks fine on a spec sheet but misses the actual process need.

Fume Hoods and Supply Air Must Work Together

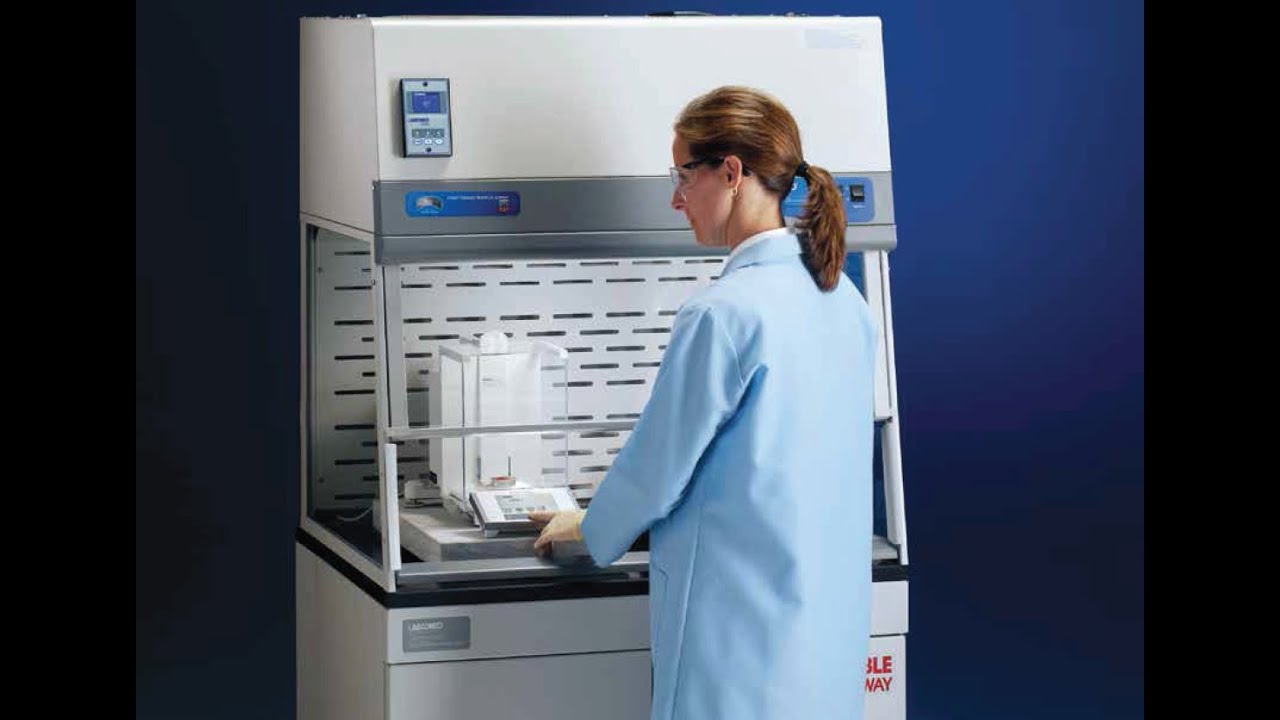

A fume hood is the most disruptive object in a lab from an HVAC standpoint. It is supposed to capture air, but it also changes the supply pattern around it. If the diffuser layout is wrong, the hood and the supply air can fight each other.

That happened in a real analytical lab where two hoods were placed on the south wall and supply diffusers sat directly above them. The downward supply stream hit the hood face, which reduced face velocity to 55 fpm instead of the target 100 fpm, and the hood failed testing. The fix was not a bigger fan. The fix was to move the supply diffusers to the center of the room, use horizontal-throw diffusers, and keep the supply pattern away from the hood opening.

What good coordination looks like

The room works better when these rules are followed early:

• Keep supply diffusers away from hood faces so the hood can pull air inward cleanly.
• Use horizontal-throw diffusers near hoods instead of dumping air straight down.
• Add makeup air through dedicated low-wall units where the layout supports it.
• Coordinate VAV hood controls with room-level supply tracking so the room does not overreact to sash movement.

Those rules matter even more when furniture and accessories are part of the plan. Hood placement, bench layout, and snorkel siting all determine where the supply system can and can't go. If the hood is already fixed in the wrong zone, the diffuser grid gets forced into a compromise that may never test cleanly.

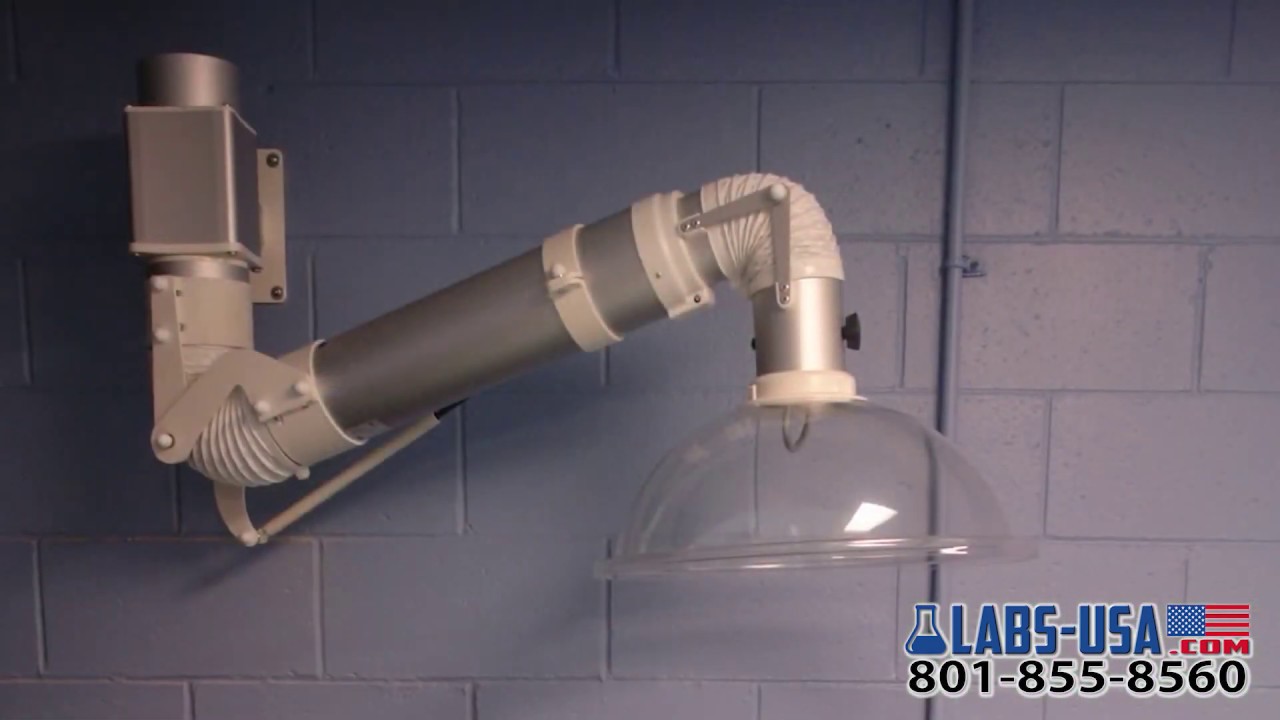

The same coordination thinking applies to exhaust accessories like exhaust snorkels. They may look small compared with a hood, but they still affect airflow patterns, make-up air, and available ceiling space.

Practical rule: A hood, a bench, and a diffuser cannot be treated as separate purchases. They are one airflow system.

That is why early layout review matters so much. Once casework, exhaust, and ceiling devices are locked, the room starts to lose flexibility. A good layout team keeps the HVAC engineer at the table before the furniture order is placed.

Energy Strategies That Pay Back

The biggest energy savings usually come from changing how air moves, not from buying bigger equipment. National lab HVAC guidance points to variable-flow exhaust as the design choice with the largest effect on airflow energy use, and it pairs that with low-pressure-drop practices such as short duct runs and low friction targets where the layout allows it (U.S. national lab HVAC guidance).

Rank the savings by how often the room is empty

A strong retrofit usually combines several controls at once, but the first question is always the same. How many hours is the room occupied, and how much air is moving during the empty hours?

• VFD retrofits help when fans run too hard all the time.
• Energy recovery wheels reduce the cost of conditioning outside air.
• Demand-controlled ventilation trims airflow when safe conditions allow it.

One 20,000 square foot research building with eight labs had been running two large central air handlers at full output 24/7 because different rooms had different needs. After zone-level VAV boxes, lab-specific exhaust controls, and demand control setbacks were added, HVAC cost fell from $184,000 to $112,000, a 39% reduction, with a 2.3-year payback on a $165,000 retrofit. The strongest savings came from unoccupied hours, because running full ventilation when the labs were empty was wasted energy.

That logic starts with the schedule and the room layout. A lab that is empty for most of the week should not behave like a fully occupied room every hour, and the control sequence should reflect that reality without compromising safety or process needs. For teams working through early room planning, laboratory design planning should be tied to the HVAC concept so hood placement, bench layout, and control zoning support each other instead of fighting the air system later.

Practical procurement guidance

For buyers, the question should not be whether a project includes VAV or heat recovery. The better question is whether those tools are coordinated with hood usage, room zoning, and the actual work schedule.

Procurement decisions also need to account for how the room will be fitted out. Hood placement, bench layout, and snorkel siting determine where supply air can go, where exhaust can be controlled cleanly, and how much ceiling space remains for ductwork and devices. A layout that supports zoning and local control often delivers more value than a slightly cheaper central-only design, because it avoids later conflicts between furniture, airflow, and commissioning results.

Energy rule: If the room is empty, the air system should not be pretending otherwise.

That simple rule is where most payback lives. It also shows why the layout team and the mechanical engineer need to make those decisions together from the start.

Right-Sizing Cooling With a Loaded Commissioning Test

Many lab cooling failures start as load-calculation errors. The system looks fine in an empty room, then struggles once the instruments, people, and hoods are running.

I have seen that pattern in the field. One empty lab was commissioned at 72°F and looked perfect during testing. Two weeks after occupancy, the same room climbed to 78°F because six instruments were operating, each adding 200 to 800 watts of heat, along with four fume hoods and eight researchers. The cooling load had been estimated from a generic lab value instead of the actual equipment heat output, and the room needed a retrofit.

Meter the actual load before you lock the design

The Labs21 guidance cited in DOE materials recommends 7 days of continuous metering of all plug and hard-wired equipment, using 15-minute time averages while spaces are fully occupied, then sizing the design heat load from the maximum measured load during that period (DOE laboratory HVAC proposal with Labs21 guidance). That is the right way to keep a guess from becoming a building problem.

A practical field checklist looks like this:

1. Collect an instrument heat-load survey by make and model.
2. Meter for at least 7 days at the branch-circuit panel level where possible.
3. Use the maximum 15-minute average as the design basis.
4. Simulate loads with heat guns if the actual instruments are not installed yet.
5. Verify recovery during commissioning with the room fully loaded.

Commission the room the way it will run

Loaded testing matters because an empty room does not show the actual thermal behavior. The room needs to be tested with lights, hoods, computers, and process loads operating together. If the lab has a dedicated process room, include that heat pattern in the test instead of assuming the coil can catch up later.

The layout matters here too. Bench placement, instrument clusters, hood locations, and snorkel siting determine where heat builds up and how the supply air has to move to clear it. Those decisions also affect how much ceiling space remains for ductwork and devices, so the air-side design and furniture plan need to be coordinated from day one. For teams working through that coordination, laboratory design planning is where those conflicts should be resolved before construction starts.

Commissioning rule: Don't test the room empty and call it done. Test it loaded, then test it again with the real use pattern.

That approach avoids expensive retrofits and keeps the mechanical team, furniture team, and users from blaming each other when the room does not hold setpoint.

When Less Airflow Is the Right Answer

More airflow is not always the better lab answer. In critical research spaces, the goal is often temperature stability, low drafts, and predictable air motion rather than the largest possible cfm number.

Independent guidance for critical laboratory research recommends temperature stability around ±1.8°F over 24 hours, plus low-velocity displacement ventilation, chilled beams, or chilled radiant panels to avoid drafts and gradients. That approach makes sense in microscopy, metrology, and sensitive bioanalysis, where the problem is often vibration, air movement, or local gradients rather than contaminant exhaust.

Choose the system based on the binding constraint

If the binding constraint is chemical containment, high ACH all-air systems with well-coordinated supply and exhaust still make sense. If the binding constraint is thermal stability or vibration, decoupling sensible cooling from ventilation is often the better path.

That is why some precision rooms work better with:

• Chilled beams for sensible cooling
• Radiant panels for stable room conditions
• Distributed sensors for better control averaging
• Low-velocity air patterns that don't disturb instruments

In contrast, a room that depends on high airflow for containment may accept more noise and draft as part of the design trade-off. The point is to choose consciously, not default to “more air” because it feels safer.

Decision rule: More airflow protects some lab processes. It can also hurt others. The right answer depends on what the room is trying to protect.

That distinction keeps owners from overspending on airflow where stability matters more, and it keeps safety teams from under-designing rooms that need exhaust-driven containment.

A Five-Step Path to a Coordinated Lab HVAC Design

A lab project works best when the team moves in sequence from hazard, to layout, to load, to commissioning. Skip one of those steps and the room usually pays for it later in change orders, comfort complaints, or higher operating cost.

1. Define the lab hazard class and required ACH. Start with the actual work, then set the ventilation target from that risk.
2. Set temperature and humidity tolerances by process. Write the band at the equipment level, not the comfort level.
3. Coordinate hood and diffuser placement early. Keep fume hoods, snorkels, and supply air from competing for the same ceiling space.
4. Right-size cooling from a measured heat-load survey. Use actual instruments, not a generic assumption.
5. Require loaded commissioning before handover. Test the room with real heat, real airflow, and the actual operating conditions.

A project team should also defer to SDS, EHS, local code, and qualified installers wherever chemicals, containment, or life safety are involved. No layout sketch replaces those checks, and no furniture plan should override the hazard review.

Labs USA can support the furniture side of that coordination with layout planning, hood placement review, and product selection that fits the HVAC plan. In practice, bench runs, hood locations, and snorkel siting affect ceiling congestion, service runs, and whether the air system can do its job without fighting the room layout. When the airflow and the furniture are designed together, the project is easier to build, easier to commission, and easier to live with.

To move a project forward, compare hood, workstation, and ventilation options, then request a free layout and quote so the room can be planned from day one. Compare options. Request a quote or plan a layout.
