Ceiling Mounted Fume Extraction Arm for a Mobile Container Laboratory in El Paso, Texas

The Solution

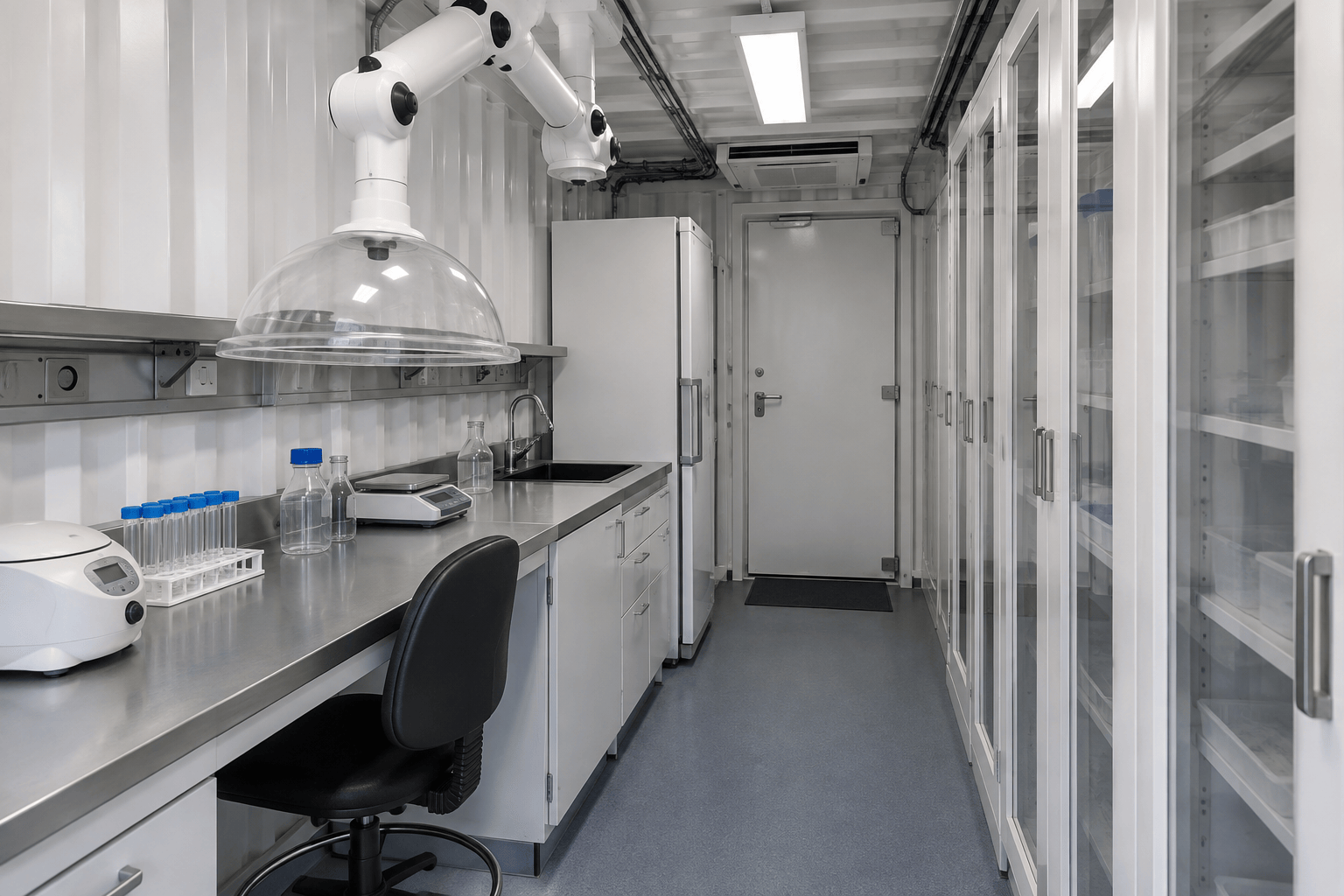

Labs USA specified a ceiling mounted articulated extraction arm rather than a wall or bench mounted one. The arm is four inches in diameter and forty six inches long with a manual damper, fitted with a fourteen inch clear dome hood and connector, and it is carried on a thirty inch ceiling bracket with a five inch side exhaust outlet and an escutcheon plate at the ceiling penetration.

The ceiling bracket was set at 108 inches above finished floor. That height keeps the arm and its ductwork above head height and out of the walkway, while still letting the hood be pulled down and positioned directly over a bench task and then pushed back up clear of the aisle. In a space this narrow, getting equipment off the wall and off the bench is not a refinement, it is the whole point.

The fourteen inch clear dome hood was chosen deliberately over a small square hood. The larger dome gives a wider capture zone, so the operator does not have to reposition the arm every time the work moves a few inches along the bench, and the clear canopy means it can sit close over a task without blocking the view of what the hands are doing. On fine or detailed work, a hood you cannot see through tends to get pushed aside, and a hood that is pushed aside captures nothing.

The manual damper on the arm lets airflow be balanced at the arm itself. On a mobile unit with a limited exhaust budget that adjustment is important: the arm can be dialled in to capture properly without starving the rest of the unit’s ventilation. The five inch side exhaust on the bracket and the escutcheon plate keep the ceiling transition tidy and sealed, which matters in a container where the roof line is also the weather line.

A wall bracket with a five inch top exhaust was included alongside the ceiling bracket so the arm can be relocated later. Mobile labs get reconfigured. The unit that runs one process this year may run a different one next year, and having both mounting options on hand means the extraction arm moves with the layout instead of becoming the reason the layout cannot change.

Delivery on this class of extraction equipment runs in the two to three week range, which suits a container fit out schedule where mechanical, electrical, and casework trades are all working in a very small space in sequence.

Advantage

Compared with a fume hood, a source capture arm asks for a fraction of the footprint and a fraction of the exhaust air. In a container that is decisive. A hood would take most of the bench and most of the air the unit can move. An arm takes a ceiling mounting point and a duct run, and it returns the bench to the work.

Compared with general room ventilation, source capture works on the physics rather than against them. Diluting a contaminant means moving a large volume of air and still leaving the highest concentration where it started, next to the operator. Capturing it at the point of generation removes it before it reaches the breathing zone, using much less air to do it.

Compared with a wall or bench mounted arm, the ceiling mount is the version that fits a narrow mobile space. There is no bracket projecting into an aisle a person has to pass through, no fixing into a cabinet run, and the reach circle is centred over the bench rather than swinging out from one wall. See the differences across the ceiling mounted exhaust snorkel range, the wall mounted arm options, and the full exhaust snorkel and extraction arm line.

Return on Investment

The first return on source capture is the one that is hard to put a number on and easy to understand: the person doing the work is not breathing what the work gives off. In a container sized space that is not a marginal improvement, because there is no volume of room air to hide behind.

The second is operational. A mobile lab is deployed to keep testing close to the work, and its value depends on being usable for a full shift. A unit that has to be aired out between tasks, or that people avoid on warm days, is not delivering the availability it was bought for. Extraction at the bench keeps the space workable continuously.

The third is cost avoided at design stage. A fume hood in this unit would have driven a larger exhaust fan, more make up air, more electrical load, and the loss of most of the bench, all to control fumes from tasks that occur at one spot. Solving it with an articulated arm meant the container kept its usable layout and its ventilation stayed proportionate to what it actually needs.

There is durability in it too. Articulated arms, brackets, and hoods have no consumables and a long service life, and because both a ceiling and a wall bracket were supplied, a future reconfiguration is a remount rather than a repurchase.
