Three Motorized Height Adjustable Laboratory Benches With Integrated Shelving and Task Lighting: Lispent, San Francisco, California
Lispent needed a small, high specification laboratory work area in San Francisco, California that suited both seated and standing work and kept tools, bins, power and cabling off the work surface. Labs USA supplied three seventy two by thirty inch motorized height adjustable benches with phenolic resin tops, upper shelving, bin rails, task lighting, power bars, cable management and lockable suspended drawers, delivered and installed.
The Situation
Lispent’s project in San Francisco, California was a compact laboratory work area rather than a building floor of benches. Small does not mean simple. When a lab is three benches, every bench has to do several jobs, and there is no spare bench to absorb the work that does not fit anywhere else. The specification has to be right because there is nowhere for a mistake to hide.
The first requirement was working posture. The work involved a mix of close detailed tasks that are done sitting and assembly or handling tasks that are far easier standing, sometimes within the same hour. A fixed bench height forces a compromise: set it for standing and seated work becomes a shoulders-up strain, set it for sitting and standing work means bending over the surface. In a small lab where the same person moves between tasks all day, that compromise is paid for continuously.
The second was surface durability. The work surface had to tolerate solvents, cleaners and repeated wipe down without swelling at the seams or lifting at the edges, which rules out laminate over particle board regardless of how good it looks when new.
The third was everything that normally ends up on the bench top and should not be: small parts in bins, hand tools, power supplies, the power strip itself and the cabling that goes with instruments. On a three bench lab, losing a third of the usable surface to storage and cables is not a nuisance, it is a capacity problem.
There was also a logistics constraint that shaped the delivery as much as the specification shaped the benches. The delivery address was a residential street address, not a commercial dock. That changes everything about a freight delivery: there is no dock, no forklift, no receiving department, and a driver will not leave crated casework on a sidewalk. Air freight and a dedicated truck were both priced as options during quoting, so the trade off between cost and delivery certainty was a decision made with numbers rather than a surprise at the end.
The Solution

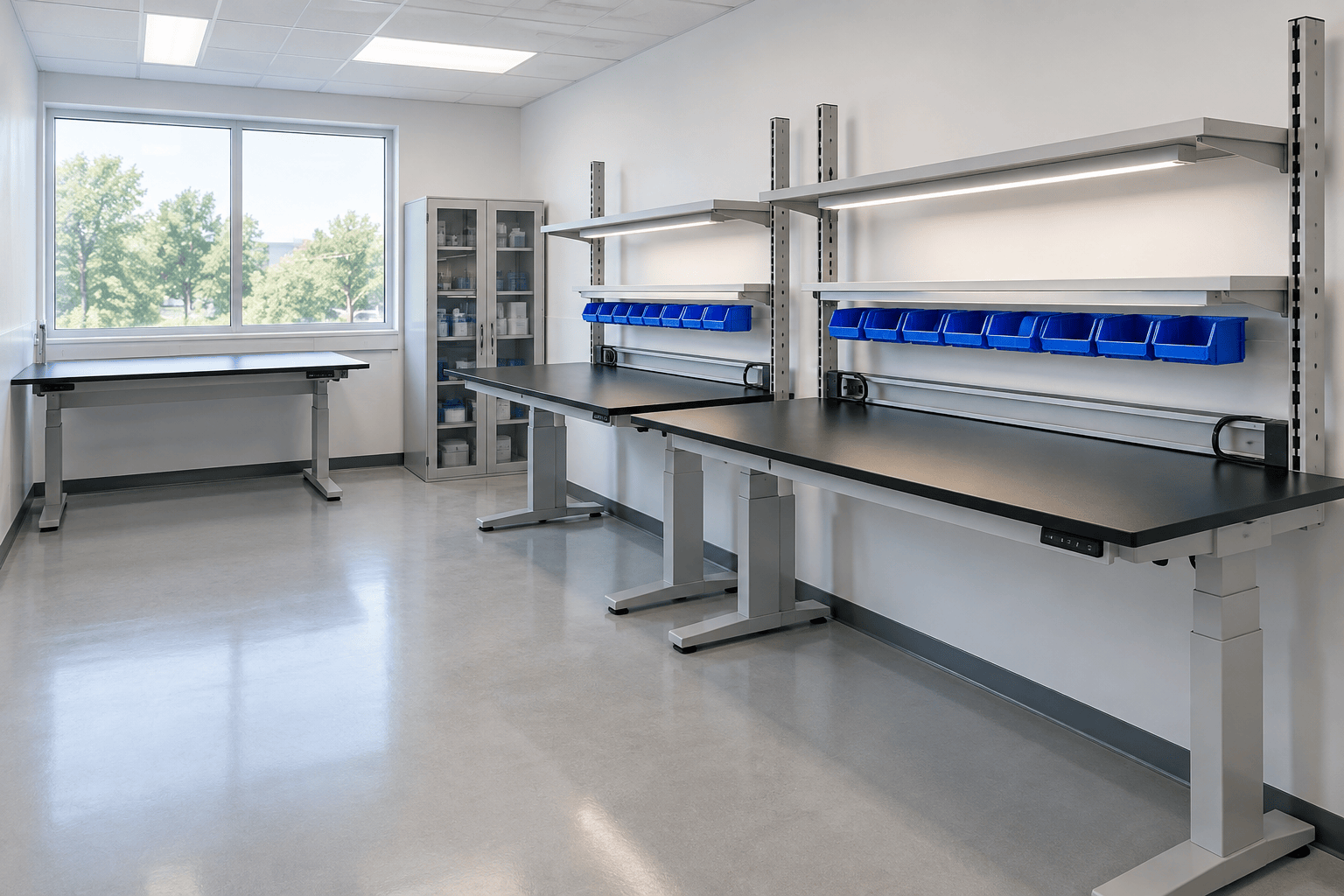

Labs USA supplied three seventy two by thirty inch motorized height adjustable benches. One was specified as a clean open bench and two were built up as fully equipped workstations with uprights, upper shelving, bin rails, task lighting, power distribution and cable management, so the lab has both uncluttered surface and dense, organized support where it is needed.
Motorized adjustment matters more than it first appears. A crank or pin adjusted bench is adjustable in theory and fixed in practice, because nobody stops mid task to turn a crank forty times. A motorized column changes height in seconds at the push of a button, which is what makes the adjustment actually get used across a shift. On these two workstations the uprights, shelf, bin rail, light and power bar all travel with the top, so the whole station keeps its geometry at any height instead of the shelf staying put while the bench moves away from it.
All three benches received one inch thick black phenolic resin tops at seventy two by thirty inches, supplied without a backsplash so the surface reads as a clean rectangle and can be worked from either side. Phenolic resin is a solid core material: its chemical and moisture resistance runs all the way through the sheet rather than sitting on a surface film, so a scratch or a chipped edge does not open a path into a substrate. Where the uprights pass through the work surface, the tops were notched at the factory rather than cut on site, which keeps the cutout clean and correctly sized. A black epoxy adhesive was supplied for bonding the tops to the frames.
The two equipped stations carry twelve inch deep upper shelves on the uprights. Twelve inches is a deliberate depth: deep enough for reagent bottles, small instruments and boxed consumables, shallow enough that it does not shadow the bench or put the front edge of a stored item over the operator’s hands. Below the shelf, a bin rail carries small blue parts bins in two sizes, so frequently used small items sit at the front of the station at eye level instead of migrating across the top.
Each equipped station also received an overhead light, a power bar and a cable trough. Those three items are what separate a bench from a workstation. The light puts illumination under the shelf where the work is, instead of relying on ceiling light that the operator’s own head blocks. The power bar brings outlets up to the shelf level so instrument power leads do not run across the working surface. The cable trough gives every one of those leads a path to the back of the bench, which is the only thing that keeps a cable managed installation cable managed six months later.
Two suspended lockable drawers were added under the work surfaces. Suspended means they hang from the top and leave the floor and the operator’s knees clear, which is a requirement rather than a preference on a height adjustable bench. Lockable means the few things that need to be secured have a home at the point of use. Installation was included in the scope, so the benches were assembled, set and levelled on site as part of the delivery rather than left crated for the customer to figure out. The result is three matched laboratory workstations that suit both seated and standing work.
Features
Advantage
The alternative to an adjustable bench is a fixed bench plus a chair, and for a lab where one person does several kinds of work it is a false economy. Fixed height benches are cheaper on the invoice and are usually the right answer where a station does one job all day at one posture. Where the same station switches between microscope or detail work and assembly or handling, the height that serves one task actively hurts the other, and the cost shows up as fatigue and slower work rather than as a line item.
Specifying the shelving, lighting, power and cable management with the bench, rather than adding them afterwards, is the second decision that pays off here. Aftermarket shelves and strip lights bolted to a height adjustable bench either do not travel with the top or block its travel. Because these uprights are part of the bench, the geometry of the station is constant at every height.
Not every bench in a lab needs to be fully built up, which is why one of the three was supplied clean. A lab that is all equipped stations has nowhere to lay out a large job. Labs USA specifies workstations and tables, laboratory casework, shelving systems and source capture ventilation, so a small room can be planned as a mix rather than as repeated units.
Benefits
- Seated and standing work both happen at the correct height, on the same bench
- Solid phenolic surfaces stand up to solvents, cleaners and repeated wipe down
- Shelving, bins, lighting and power travel with the top, so the station works at any height
- Instrument cabling has a defined path off the work surface
- Lockable drawers secure small items without taking knee space
- One clean bench kept free for layout work, two fully equipped stations for detailed work
Suspended lockable drawers hang from the underside of the work surface. On a height adjustable bench that is the only sensible place for them: knee and floor space stay clear, and the drawers rise and fall with the bench.
Return on Investment
The first return on a bench like this is time that is not lost to friction. Every minute spent moving bins off a work surface, hunting for an outlet, or untangling a lead across a bench is unproductive time that repeats every day. Organized storage, power at shelf level and a cable trough remove that friction permanently, and in a three bench lab those minutes are a measurable share of the working day.
The second is ergonomic. Sustained work at the wrong bench height produces neck, shoulder and back strain, and the cost of that is absence, reduced output and, in the worst case, an injury claim that exceeds the price of the entire furniture package. Motorized adjustment is the version of an adjustable bench that actually gets used.
The third is surface life. A phenolic resin top in a lab that uses solvents and cleans aggressively typically outlives several laminate tops. Replacing a work surface is not just the price of the top, it is stripping the bench, moving instruments and losing the station for a day or more.
The fourth is delivery certainty. Freight options including a dedicated truck and air freight were priced during quoting, and installation was purchased with the benches. On a residential address delivery with no dock, the alternative is a failed delivery, redelivery charges and crated benches sitting in a hallway, which costs more than either option quoted.
Project Process
Map the Tasks
Identify which work is seated, which is standing, and what has to sit within arm’s reach.
Specify the Bench
Select size, adjustment type and how many stations need uprights, shelving and power.
Choose the Surface
Match the work surface material to the chemicals and cleaning regime actually used.
Plan the Delivery
Confirm access, dock availability and freight method before release, and price the options.
Install and Set
Assemble, set and level on site so the lab receives working benches, not crates.
Laboratory Benches and Workstations for San Francisco and the Bay Area
San Francisco and the surrounding Bay Area have more small, dense, high specification laboratories per square mile than almost anywhere else: startup benches in converted buildings, research groups in shared facilities, device and diagnostics teams, analytical and materials labs, and private work areas fitted out in spaces that were never built for laboratory use. The constraints repeat. Floor area is expensive, ceiling heights and access are inherited, freight delivery is genuinely difficult, and the equipment has to be right the first time because there is no warehouse to hold the wrong answer.
That is why the specification conversation for Bay Area projects spends as much time on access, elevator size, dock availability and installation as on the furniture itself. A bench that cannot be delivered and set is not a bench.
Labs USA supplies height adjustable benches and laboratory workstations, casework, laboratory shelving and extraction arms throughout California. To plan a small lab properly the first time, call 801-855-8560.
Shop Laboratory Workbench Kits Online
Related in-stock bench products from our online store. These are dry-use workbench kits, not equivalent to the motorized height adjustable phenolic-top benches supplied on this project. Request a quote for laboratory-grade benches.
Frequently Asked Questions
Is a motorized height adjustable bench worth it over a manual one?
It depends entirely on whether the height will change during the working day. If a station does one task at one posture, a fixed or manually set bench is the better value. If the same station switches between seated detail work and standing handling, motorized adjustment is the only version people actually use, because it takes seconds rather than minutes.
Why phenolic resin instead of laminate or epoxy resin?
Phenolic resin is solid through its thickness, so chemical and moisture resistance does not depend on an intact surface film, and it is much lighter than epoxy resin. Weight matters on a height adjustable bench. Epoxy resin is still the better choice for heavy chemical and heat exposure; laminate is best kept to dry, low exposure work.
Do the shelves and lights move with the bench?
Yes. The uprights are mounted to the bench, and the shelving, bin rail, task light and power bar are carried on the uprights, so the whole station keeps the same geometry at any height. Aftermarket shelves fixed to a wall behind an adjustable bench do not.
Why notch the work surface at the factory?
Because a cutout for an upright post has to be the right size and in the right place, with a clean edge. Cutting phenolic on site is possible but produces a rougher cutout and creates dust in a finished space. Factory notching is dimensionally controlled.
Can benches be delivered to a site without a loading dock?
Yes, but it has to be planned and priced. Freight to an address without a dock needs either a liftgate and inside delivery or a dedicated truck, and the installation crew should ideally arrive the same day so nothing sits crated. Air freight is sometimes worth pricing when the schedule is tight.
How much lead time should be expected?
Built-up height adjustable workstations with tops and accessories are a made-to-order package rather than a stock item, so plan on a lead time in weeks, not days, and release the order once the layout and accessories are settled.
